Grifco Fire Shutter - Electrical Connection

9
CAUTION
The Fire Shuer Opener must:
 be connected via a device that is capable of being locked for maintenance
 be connected via a suitable circuit breaker that disconnects all live conductors
 be connected in accordance with the wiring rules of the country in which it is installed
 not have control enclosures le open for extended periods (excess dust will void warranty)
 Run all cable through non-exible conduit and use appropriate conduit entries

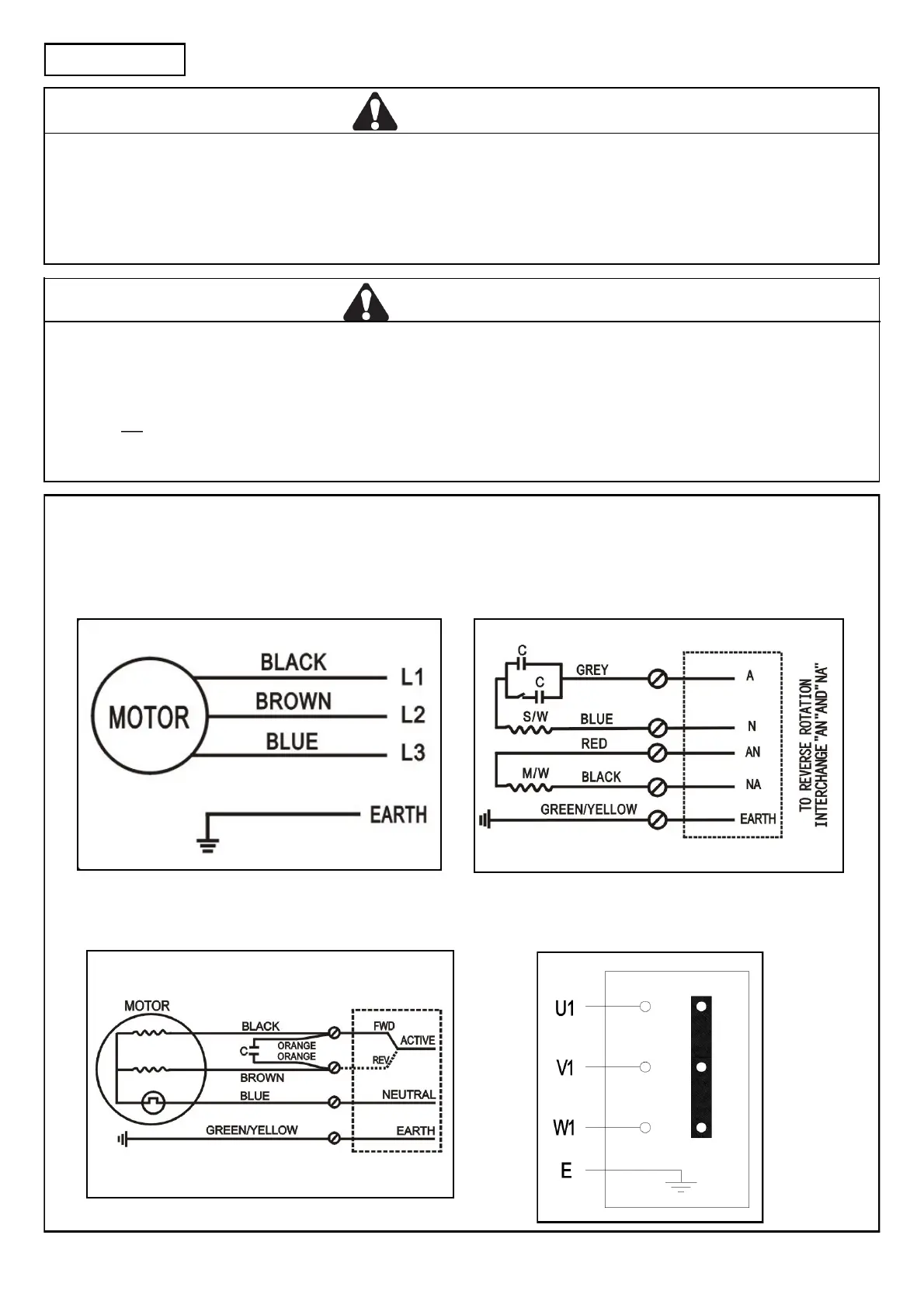

Electrical Connecons
Motor connecons
MODELS: Three phase 3 wire MODELS: Single phase 4 wire
MODELS: Single phase 3 wire MODELS: To suit special 3ph openers
CAUTION
When Securing the Fire Shuer Opener with the 4 x M12 x 40mm long fasteners (based on a 10mm mounng plate) and spring
washers provided, it is crical to ensure that the applied torque is between 80-90Nm. When mounng through thicker secons,
ensure a minimum of 30mm of screw thread is engaged with the female thread. Use of incorrect fasteners or torque may cause
serious product damage and/or personal injury. When xing through a sloed plate, ensure that the slots are no wider than
13mm as a spring washer may not be adequate in outside diameter to support the hexagon head.
INSTALLATION
