Grill Chef BIG-8122C - Part Diagrams and Lists

4

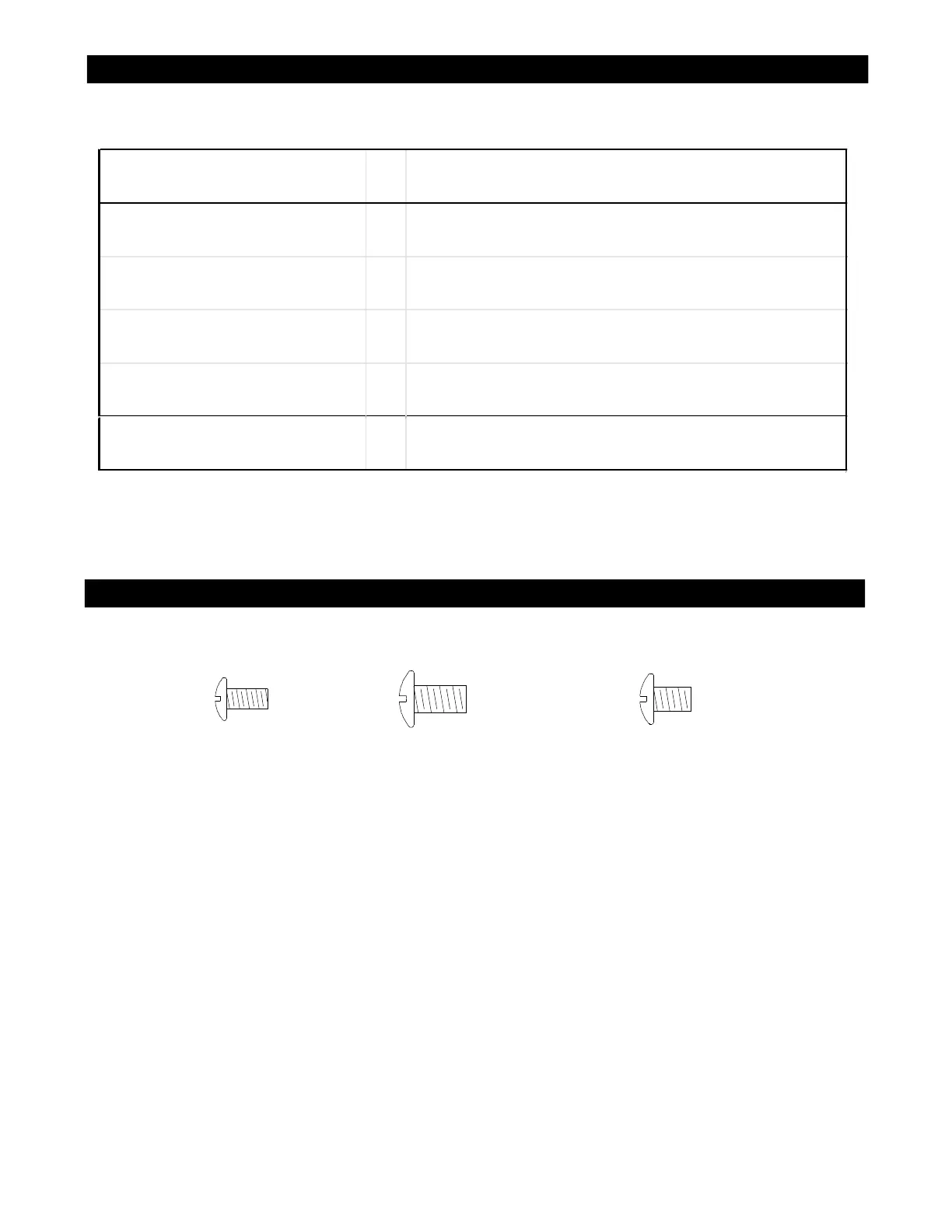

Hardware Pack Parts List for Model BIG-8122CThe following
table The following table illustrates a breakdown of the hardware pack. It highlights what parts are used in the various stages
of assembly.
3/16"x3/8" Phillips Head Screw
QTY. 4
1/4"x1/2" Phillips Head
Screw QTY. 28
Hardware Pack Diagram for Model BIG-8122C
PART DESCRIPTIONQTYPURPOSE OF PART
Hardware Pack 1For use in assembly
1/4"x3/8" Phillips Head Screw4Secures the Tank Holders on the Cart Frame
3/16"x3/8" Phillips Head Screw4Secures the Lid Handle on the Left and Right Lid
1/4"x1/2" Phillips Head Screw28
Secures the Bowl Handle on the Left and Right Bowl
Support Bracket
1/4"x3/8" Phillips Head Screw
QTY. 4
