Grip Rite GR254CTS - Compressor Tank Schematic

13
COMPRESSOR PARTS LIST - PUMP
REF NO. DESCRIPTION QTY. PART#
29 Bearing 1 GRFC26
30 End Bell 1 GRFC30
31 Fan 1 GRFC29
32 Thru-Bolt 2 GRFC31
33 Shroud 1 GRFC48
34 Washer 2 GRFC15
35 Screw 2 GRFC16
36
Gasket Set - Includes parts: GRFC4, GRFC34,
GRFC35, GRFC43, GRFC44
1 GRFC57

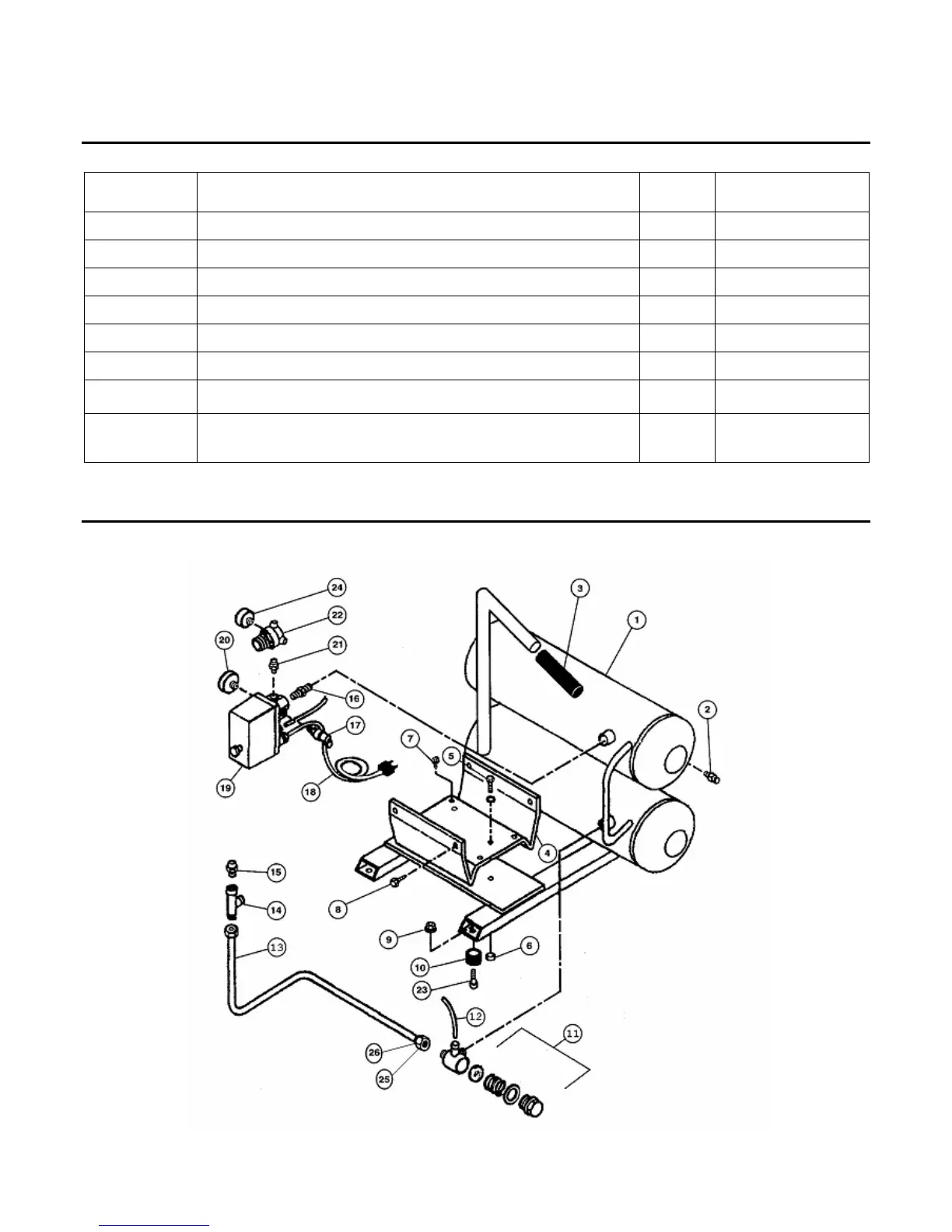

COMPRESSOR SCHEMATIC - TANK
