10
3 Adjustable Maximum Current
Circuit Rating Maximum Charging Station Output
50A 40A (9.6 kW)
40A 32A (7.68 kW)
30A 24A (5.76 kW)
20A 16A (3.84 kW)
The GRIZZL-E ™ charging station features the ability to adjust the maximum Charging Station
current output to support 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows:
3.1 Adjust Maximum Current Output
• The Charging Station Default Factory Maximum Current Output Setting is 40A (9.6 kW) for
use with a 50A Circuit Rating.
• The Circuit must be a DEDICATED CIRCUIT 208-240 VAC, 50-60 Hz, Single Phase.
• Requirements govern that only 80% of the circuit rated load may be utilized, hence the
higher Circuit Ratings Requirement relative to maximum Charging Station output.
To adjust the Maximum Current Output Setting:
1. Ensure unit is unplugged. Place the Charging Station on a flat surface with the front cover
facing up.

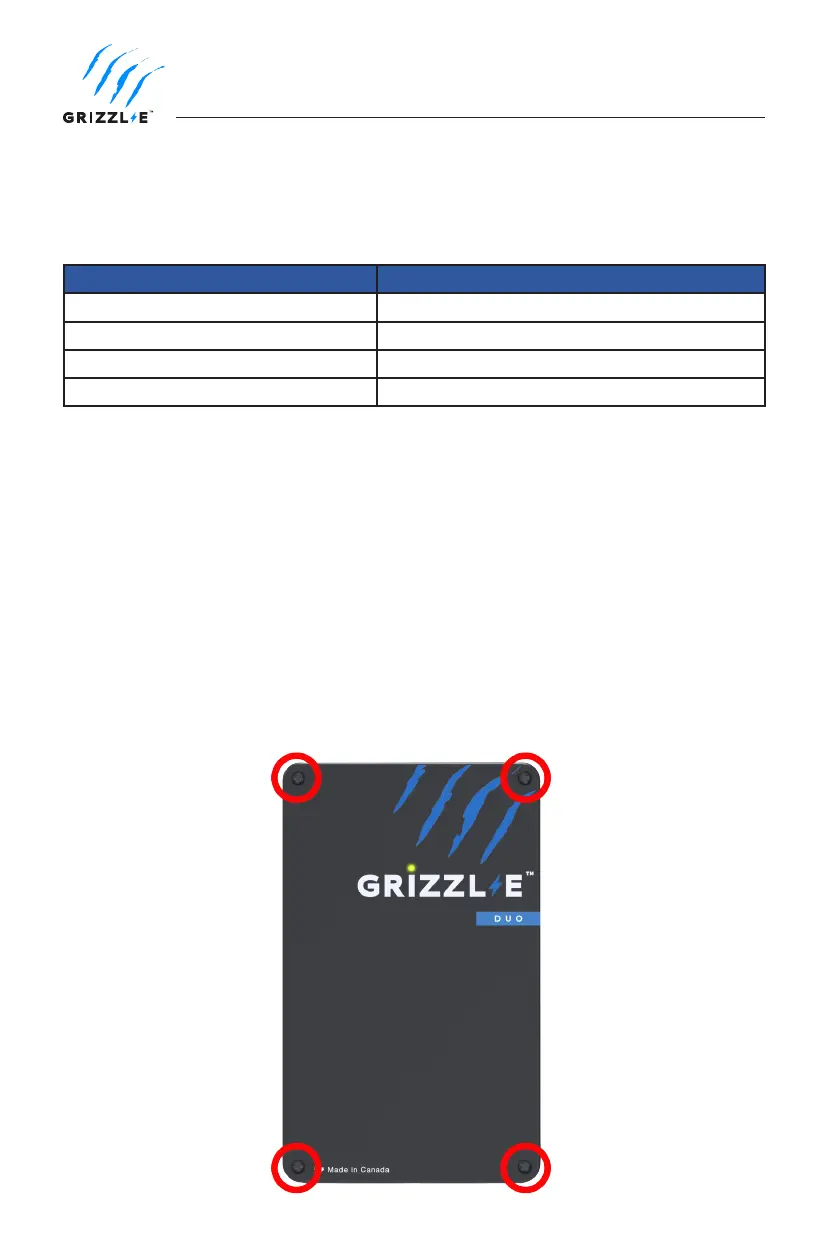

2. Remove the front cover by removing the 4 screws at each corner of the charging station.
