7. Charging Status Indicators and Buzzers
7.2 Grizzl-E Duo Alternating Indicator Light
Grizzl-E Duo Features an Alternating LED Indicator Light to give the status of both
chargers. The primary and secondary charger will display their status in the following
sequence:
Primary Charger
Secondary Charger
Transition
Solid Colour or slow flashing indicates
the status of the primary charger.

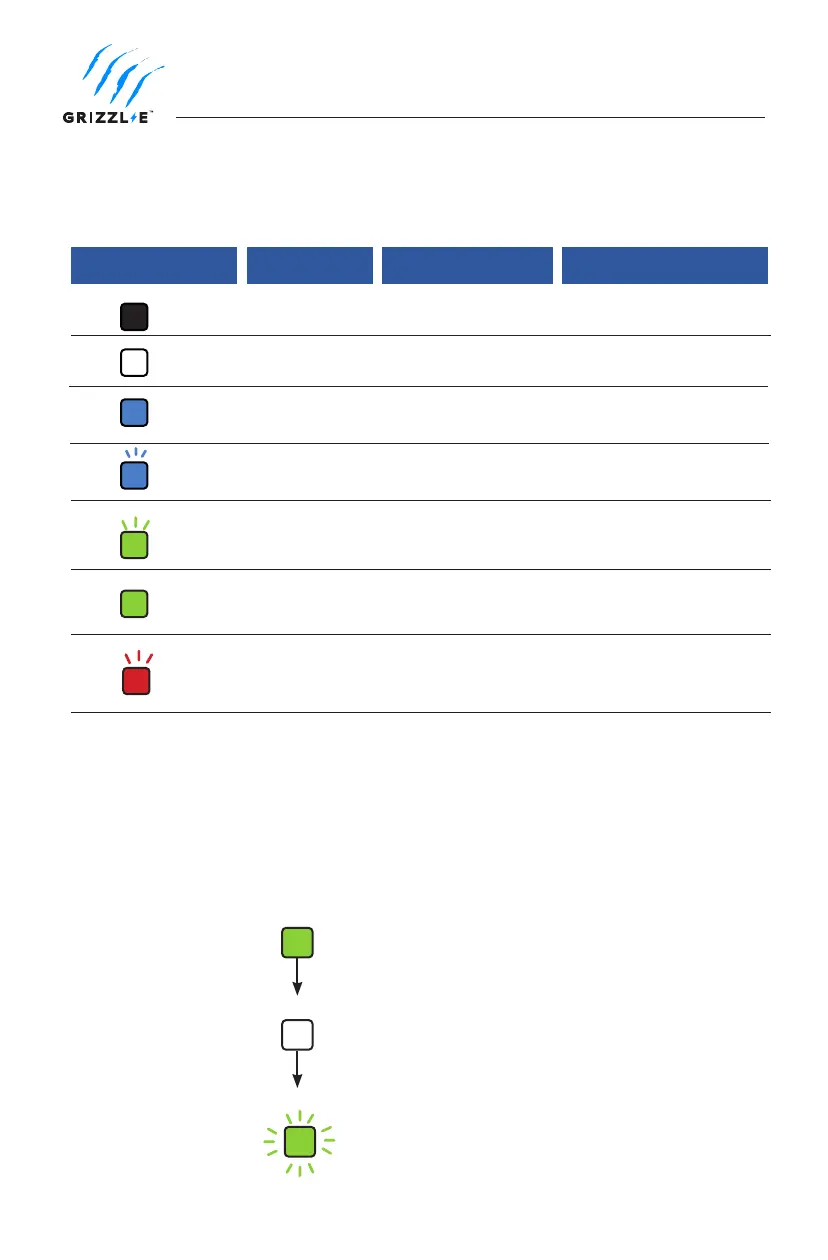

LED Indicator Buzzer Description Definition
No buzzer
No buzzer
No buzzer
No buzzer
No buzzer
No buzzer
Buzzer beeps
Not illuminated
White
Blue Steady
Blue Flashing
Green Flashing
Green Steady
Red Flashing
Power Off
Initialization
Ready
Vehicle detected
Charging in progress
Charging complete or no
current consumed by the car
Fault (See Chapter 7.3 LED
Fault Indicator on page 21)
Second White LED indicates transition
of the status Indicator between
Primary and Secondary Charger
Modulating or rapid flashing indicates
the status of the second charger.
7.1 Indicator Lights
