Grizzl-E DUO - Page 12

12
40A Maximum Current Output
32A Maximum Current Output
24A Maximum Current Output
16A Maximum Current Output
UP
DOWN
UP UP
UP
DOWN DOWN
DOWN DOWN
DOWN DOWN DOWN
UP
UP
UP
UP
Switch 1 Switch 2
Switch 3 Switch 4

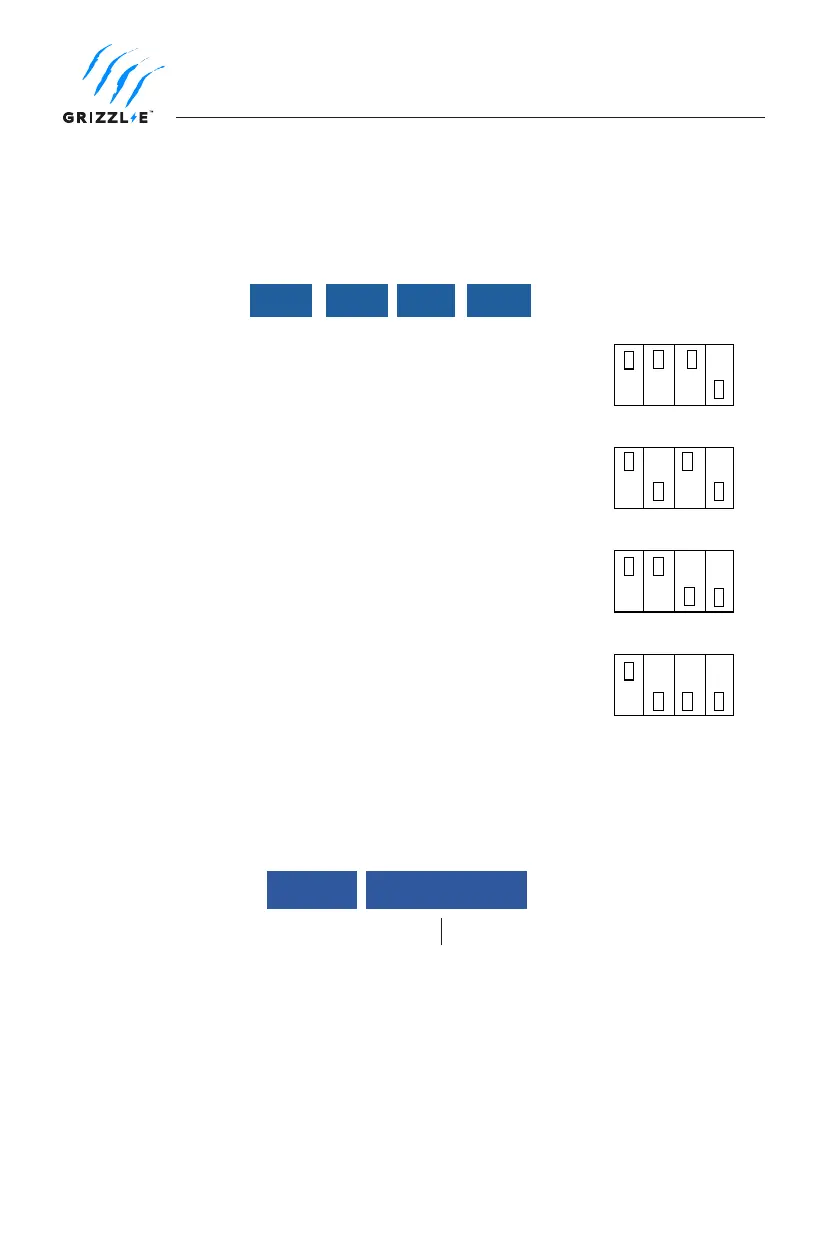

4. Adjust the Maximum Current Output to either 40A, 32A, 24A or 16A, using the following
combination of DIP switch settings:
5. Once the DIP Switch Setting is adjusted, reassemble the charging station. Reinstall the top
cover to the charging station using the following torque force to secure the (4) socket cap
screw:
Screw Torque
M6 16 kgf-cm 13.88 lb-in
