18

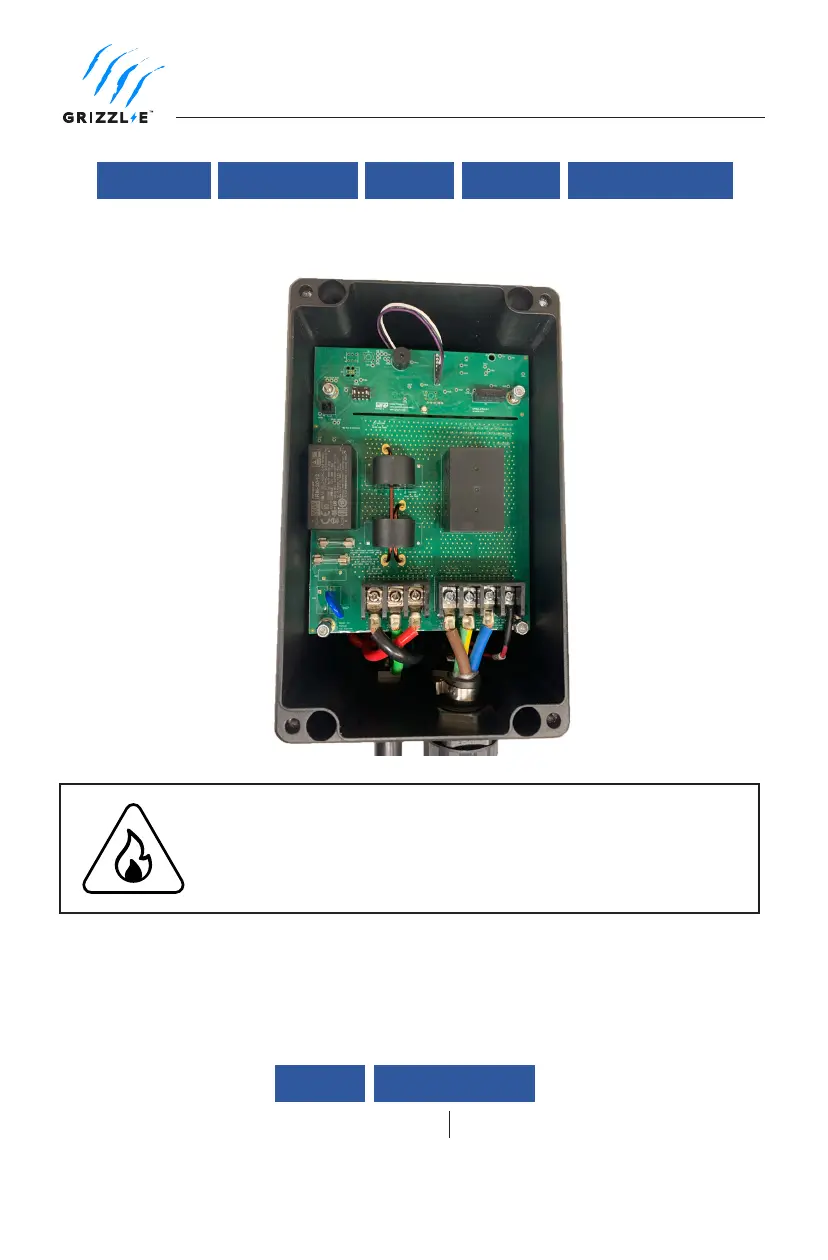

Terminal Conductor
Screw Rating Torque
90C,
copper wire
M4
L1, L2, G
8 AWG
(10AWG for ground)
max 1.8Nm | 16 LBF.IN
6. Once the input wiring and conduit are connected, reassemble the charging station.
Reinstall the charging station font cover using the following torque force to secure the
(4) screws:
Screw Torque
M4
max 1.8Nm
16 LBF.IN
CAUTION: To reduce the risk of fire, connect only to a circuit
provided with the appropriate amperes minimum branch circuit
overcurrent protection in accordance with the National Electrical
Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I, C22.1.
