Model G0458 (Mfg. Since 5/11)
-15-
4. Build the rest of the stand assembly, as
shown in Figure 9, with the remaining hard-
ware.
5. Turn the stand upright and adjust it so the
legs are evenly positioned, then tighten all
the stand fasteners.
The sander is very heavy.
DO NOT over-exert your-
self while unpacking or
moving your machine—
get assistance.
6. Make sure the sander is still resting on the
shipping pallet.
7. Place the pallet and stand near the perma-
nent mounting location (once the sander is
mounted to the stand it will be difficult to
move).
8. With help of an assistant, tilt the sander back
so the side with pulley cover faces the pallet,
move the left bottom edge of the sander for-
ward, and rest the left side of the sander on
the pallet as shown in Figure 10.
Note: The base should stick out a few inches
beyond the edge of the pallet.

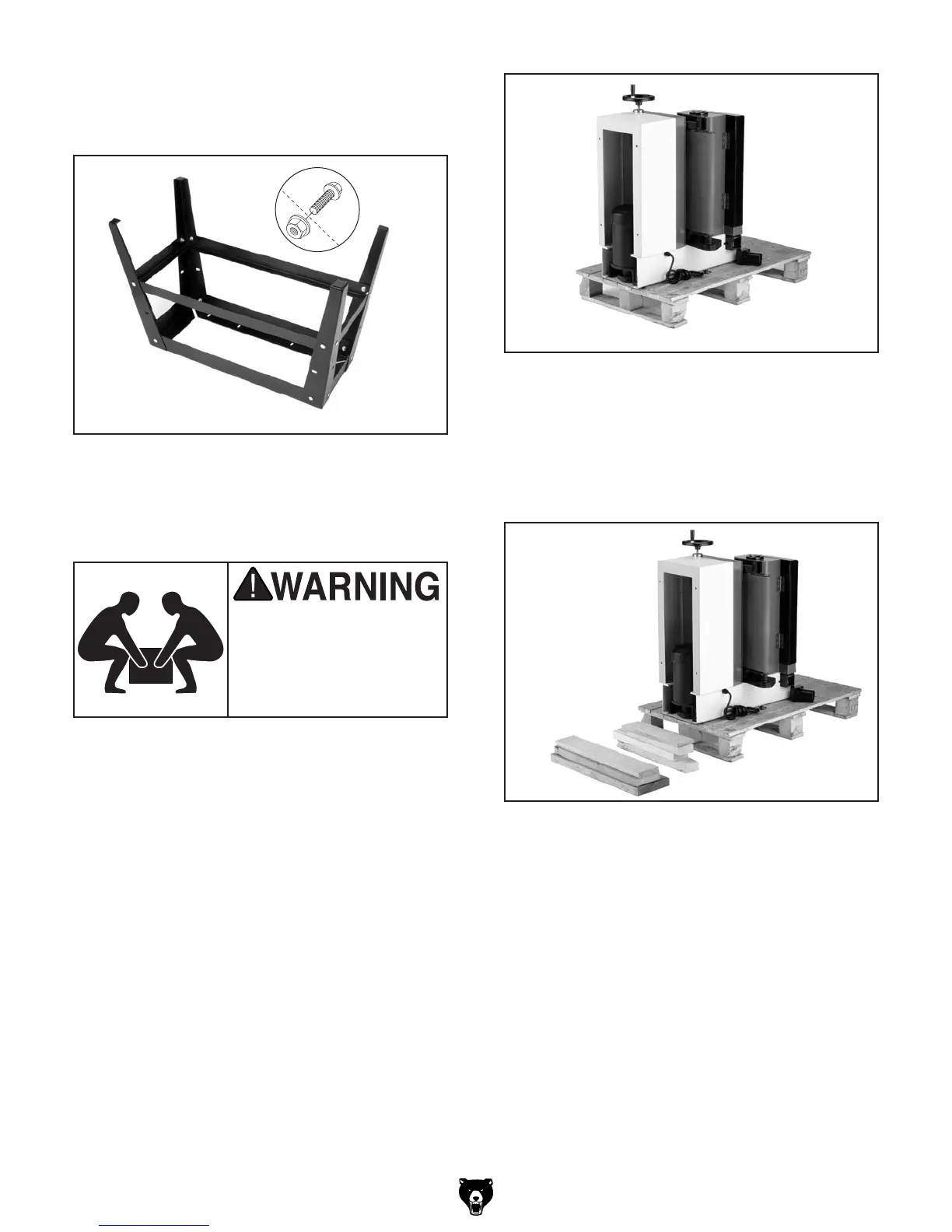

Figure 9. Completed stand assembly.
x10
Figure 10. Sander tipped back on pallet against
pulley cover.
9. Place two stacks of blocks the same height
as the pallet and about 15 inches apart on
the floor near the sander base as shown in
Figure 11.
Figure 11. Blocks set near sander base.
