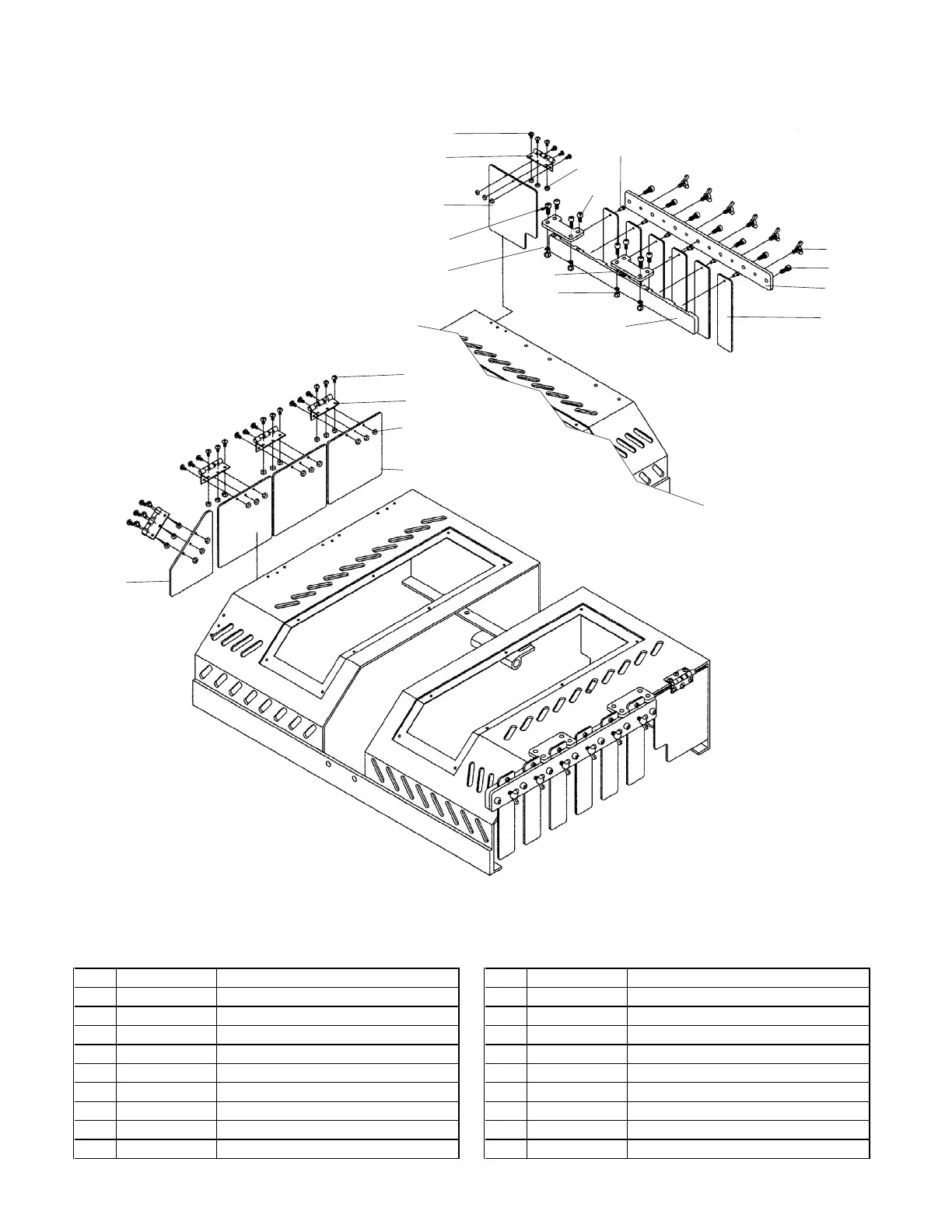

Grizzly G0502 - Page 13

REF PART # DESCRIPTION REF PART # DESCRIPTION
231 P0502231 STAKE GUARD 234-4 PCAP26M CAP SCREW M6-1 X 12
231-1 PCAP17M CAP SCREW M4-.7 X 10 235 P0502235 NOTCHED GUARD FLAP
232 P0502232 INNER GUARD PLATE 236 P0502236 HINGE
233 P0502233 OUTER GUARD PLATE 236-1 PS07M PHLP HD SCR M4-.7 X 8
233-1 P0502233-1 WING SCREW M6-1 X 14 236-2 PN04M HEX NUT M4-.7
233-2 PCAP27M CAP SCREW M6-1 X 14 241 P0502241 ANGLED GUARD FLAP
234 P0502234 GUARD MOUNT BRACKET 242 P0502242 SQUARE GUARD FLAP
234-1 PCAP01M CAP SCREW M6-1 X 16 243 P0502243 HINGE
234-2 PLW03M LOCK WASHER 6MM 243-1 PS07M PHLP HD SCR M4-.7 X 8
234-3 PN01M HEX NUT M6-1 243-2 PN04M HEX NUT M4-.7
231
231-1
232
233
233-1
233-2
234
234-1
234-2
234-3
234-4
235
236
236-1
236-2
241
242
243
243-1
243-2
