Model G0860/G0861/G0862 (Mfd. Since 10/18)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
G. Remote Control: Green button turns motor
ON. Red button turns motor OFF.
Note: The remote operates on radio fre-
quency and does not need to be aimed at the
control box to operate.
A. Filter Cleaning Handle: Turns paddles
inside canister filter to clean filter and help
maintain good air flow.
B. Control Box: Controls motor operation
with a thermally protected magnetic switch.
Houses an RF receiver for operation via
remote control.
C. Removable Filter Bag: Collects fine dust
from filter area.
D. Inlet Adapter: Allows connection of two
4" ducts (Model G0860) or three 4" ducts
(Models G0861 & G0862) to main dust port
inlet.
E. Collection Drum Lock Handle: Secures
dust collection drum to lid when pressed
down.
F. Collection Drum Inspection Window:
Allows operator to see when collection drum
needs to be emptied.

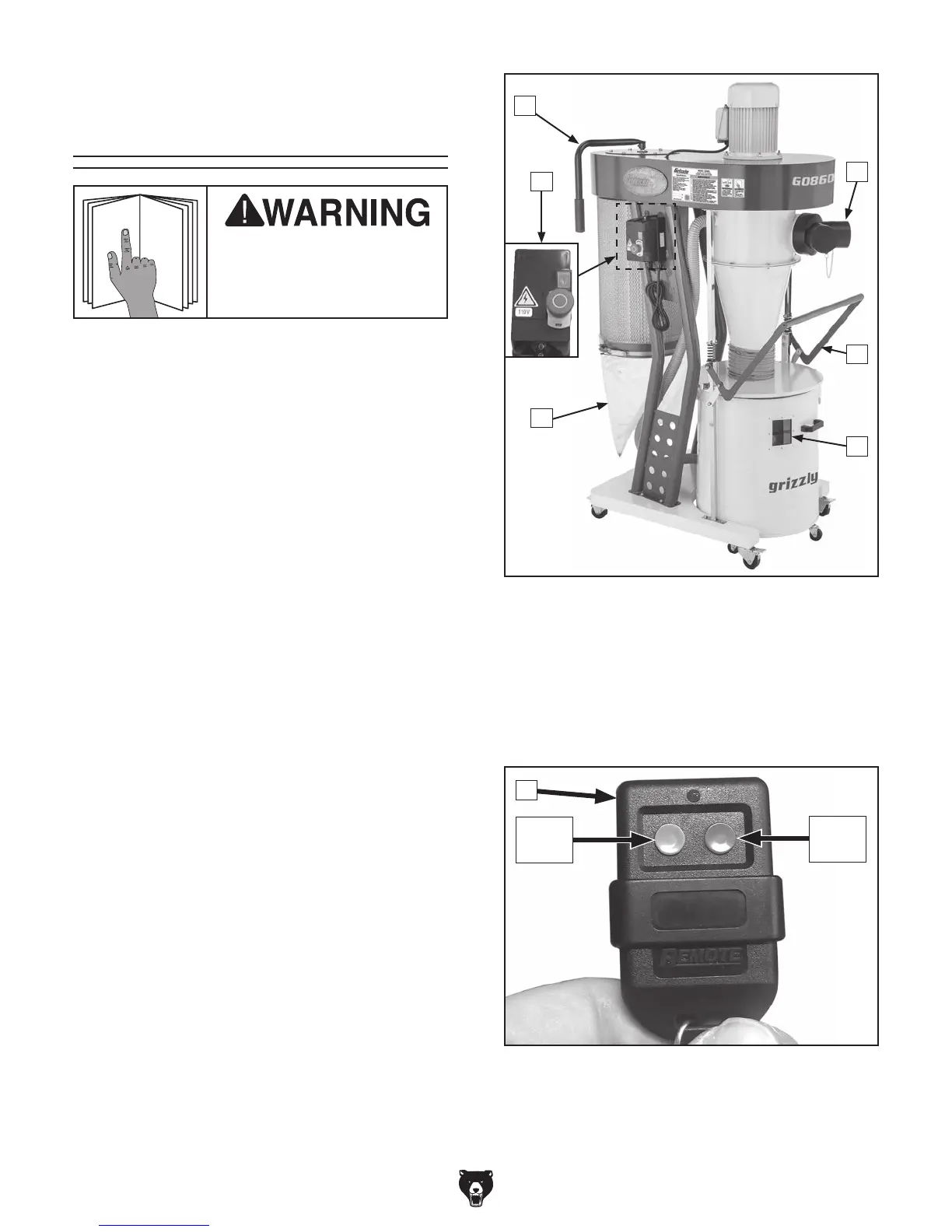

Figure 1. G0860-G0862 components.
F
E
D
A
B
C
Figure 2. Remote control.
ON
Button
OFF
Button
G
