Model G8027 (Mfd. Since 09/23)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Power Controls

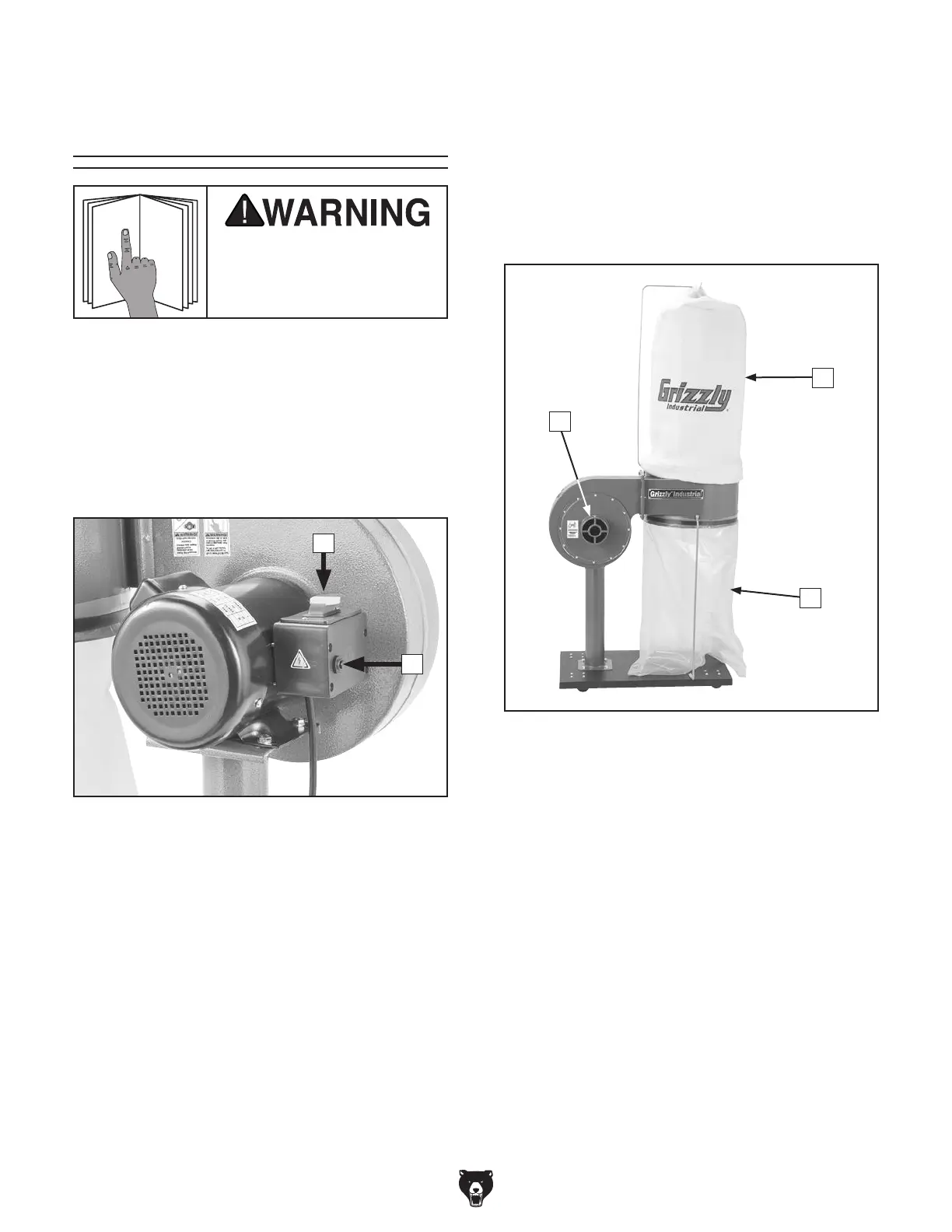

Figure 1. Power controls.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
A. ON/OFF Switch w/Removable Key: Turns
motor ON/OFF and prevents accidental start-
up. Removal of yellow key disables switch,
preventing motor from starting.
A
B
Collection Components
C
D
E
Figure 2. Collection components.
C. Inlet: Provides connection point for wood-
working machine dust collection hose.
D. Filter Bag: Filters wood dust as small as 2.5
microns from collected air, and allows dust to
fall and collect in lower collection bag.
E. Collection Bag: Collects 2.3 cubic feet of
wood dust and has a quick-disconnect bag
clamp for disposal.
B. Overload Switch: Allows machine to be
restarted after thermal overload protection
has tripped. To reset, move ON/OFF switch
to OFF position, wait a few minutes for
machine to cool, then press overload switch
button. If button does not stay depressed,
allow motor to cool longer, then try again.
