ground logic Pathfinder - Instructional Decals

10

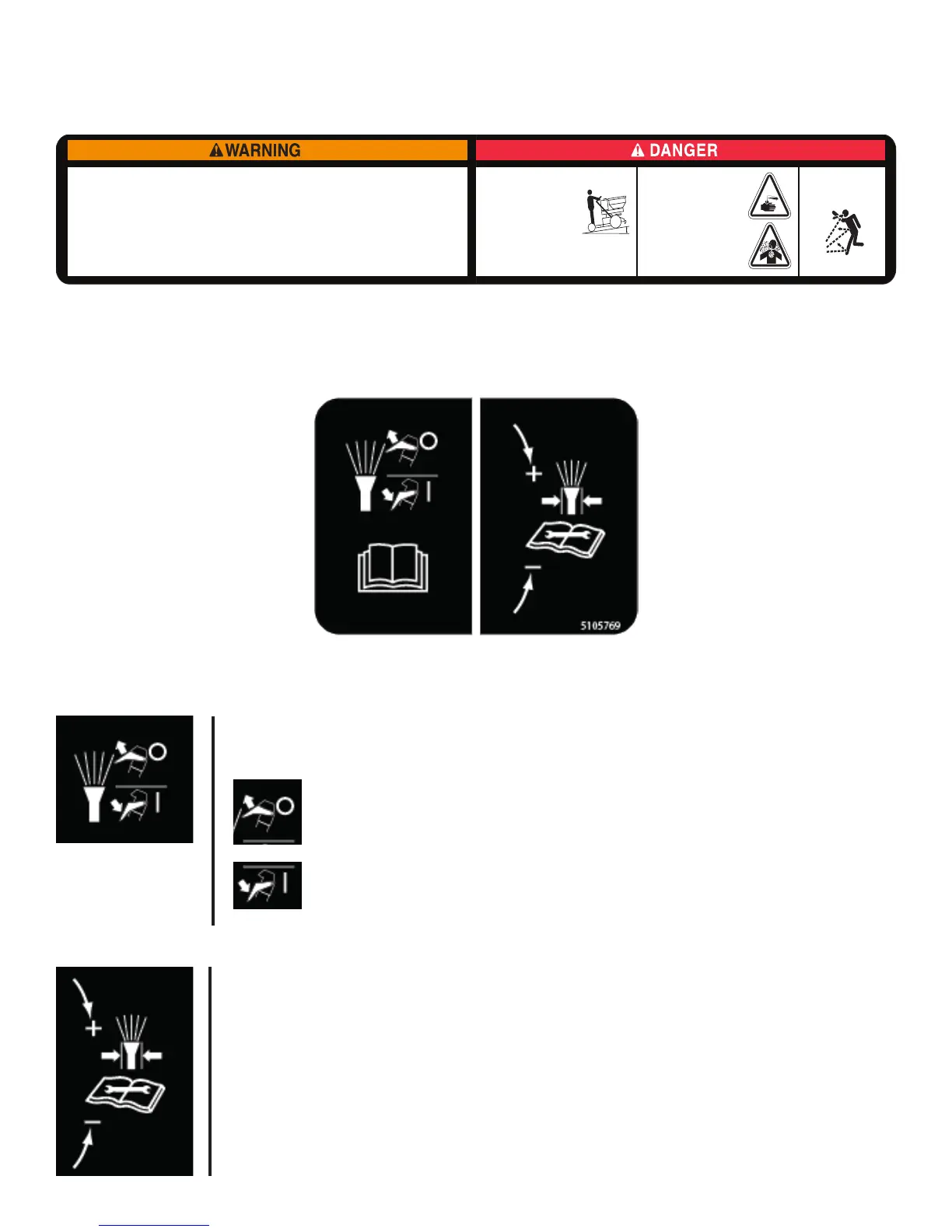

Figure 5: Warning and Danger Combination Decal
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED
3.2 SAFETY ICONS AND WARNING DECALS CONTINUED
3.3 INSTRUCTIONAL DECALS
Figure 6: Sprayer Control Decal
Spray Control Lever: See section 4.2 CONTROLS for spray control lever
operating instructions.
When this lever is released, the spray valve is closed (OFF position)
When this lever is depressed, the spray valve is open (ON position)
Releasing the spray control lever will automatically close the sprayer valve
(OFF position)
Spray Pressure Relief Valve: See section 6.3 CALIBRATING THE SPRAY FLOW
RATE for Spray Pressure Relief Valve operating instructions.
Turning the knob clockwise increases spray pressure and turning the knob counter
clockwise decreases spray pressure.
• Read and understand the operator’s manual before using
this machine.
• Do NOT operate unless trained to safely use this machine.
• Hearing protection is recommended.
• Do NOT operate without shields, guards, and safety
devices in place and working.
• Do NOT defeat the safety system.
• Stop engine and remove key before adjusting, servicing
or cleaning machine.
• Do NOT operate when people and pets are in the area.
• Do NOT carry passengers.
• Look behind and to the side before changing directions.
• Before leaving the operator’s position engage park brake
and stop engine.
To avoid serious injury or death:
Loss of Control:
Operating on slopes can be hazardous and
cause loss of control.
• Avoid sudden turns or rapid speed
changes.
• Go up and down slopes, NOT across.
• Reduce speed and use extreme caution
on slopes.
• If machine stops forward motion on a
slope, stop. Get o and walk the machine slowly o the
slope.
• Do NOT operate on slopes when grass is wet.
Caustic Liquid/Chemical
Burn and Gases Inhalation
Hazard:
• Follow instructions for handling
and wear all personal protective
equipment as recommended on the
manufacturer’s label of any herbicides,
pesticides, or other chemicals used.
Thrown Object Hazard:
• Do NOT operate when
people are nearby.
5105774
