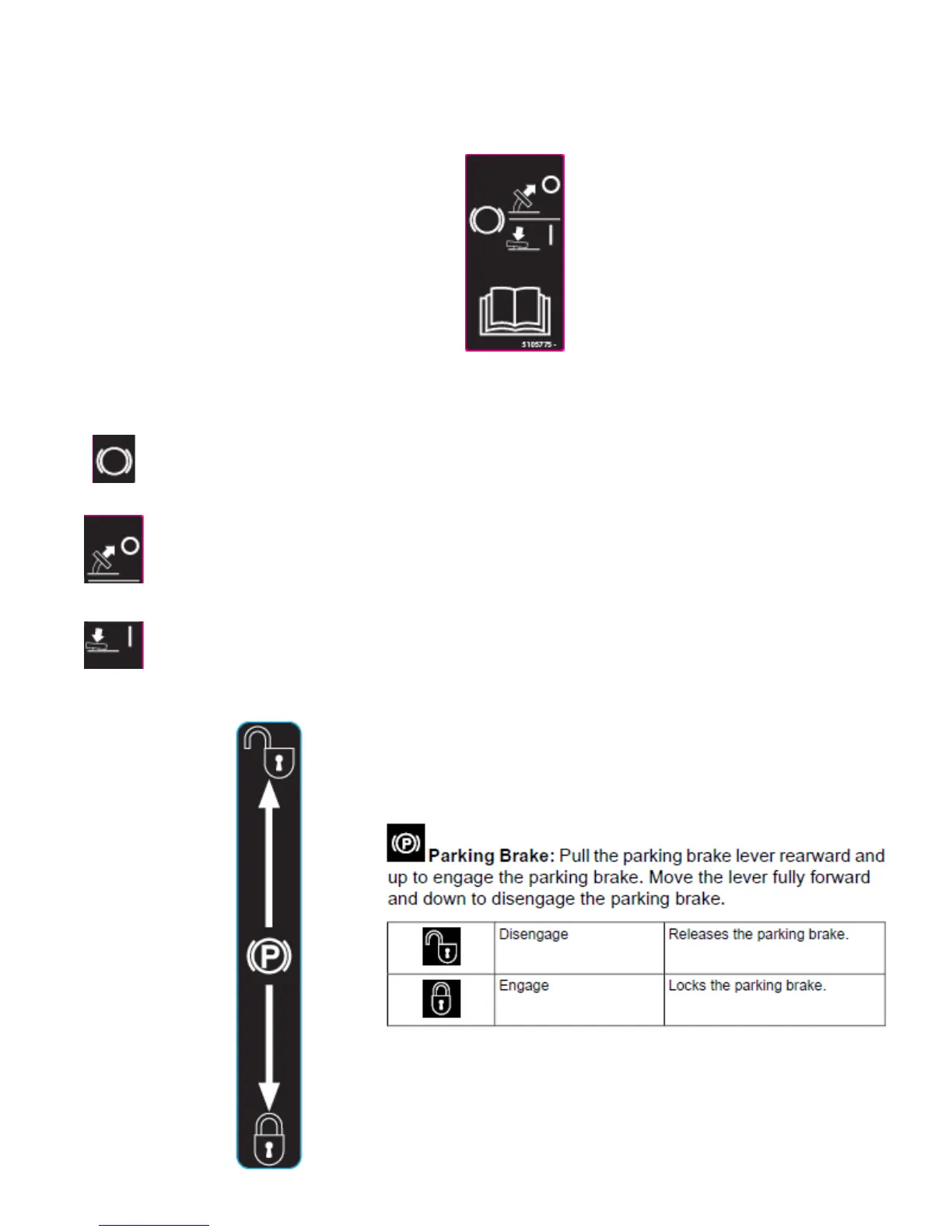

Figure 7: Foot Brake Decal
Figure 8: Parking
Brake Decal
Figure 9: Explanation of Parking Brake Decal
Foot Brake Decal: See section 4.2 CONTROLS for brake pedal operating instructions.
Releasing the brake pedal disengages the band brakes on the rear wheels (OFF position).
Depressing the brake pedal engages the band brakes on the rear wheels (ON position).
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED
3.3 INSTRUCTIONAL DECALS CONTINUED
