Groundsman TMC26 - Operator Levers and Controls; Operator Handle and Manoeuvring Controls; Cutting Depth and Ground Drive Controls

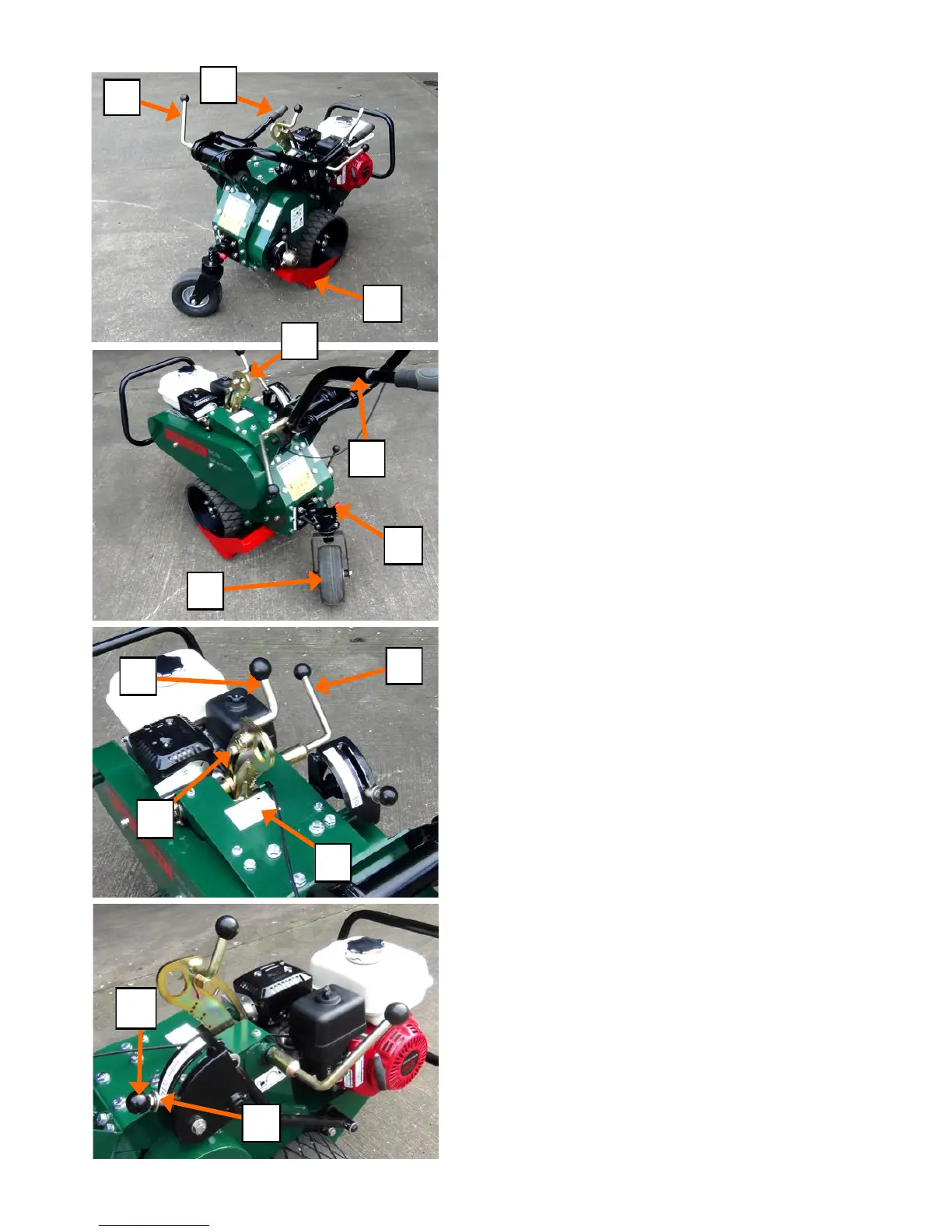

OPERATORS HANDLES
(A) OPERATORS HANDLES (folded)
(B) OPERATORS HANDLES CLAMP LEVER
(C) CUTTER BLADE
MANOUVRING
(A) OPERATOR HANDLES (unfolded)
(B) CASTER WHEEL
(C) CASTER WHEEL LOCK LEVER
(D) LIFTING EYELET
CUTTING DEPTH ADJUSTMENT
(A) CUTTING DEPTH CLAMP LEVER
(B) CUTTING DEPTH ADJUSTMENT LEVER
(C) CUTTING DEPTH SCALE
(D) CUTTING DEPTH STOP
GROUND DRIVE
(A) GROUND DRIVE ENGAGEMENT LEVER
(B) GROUND DRIVE LEVER LOCK RING
A
B
A
B
C
A
A
B
C
Page 9
Operator Levers and Controls
C
B
D
D
