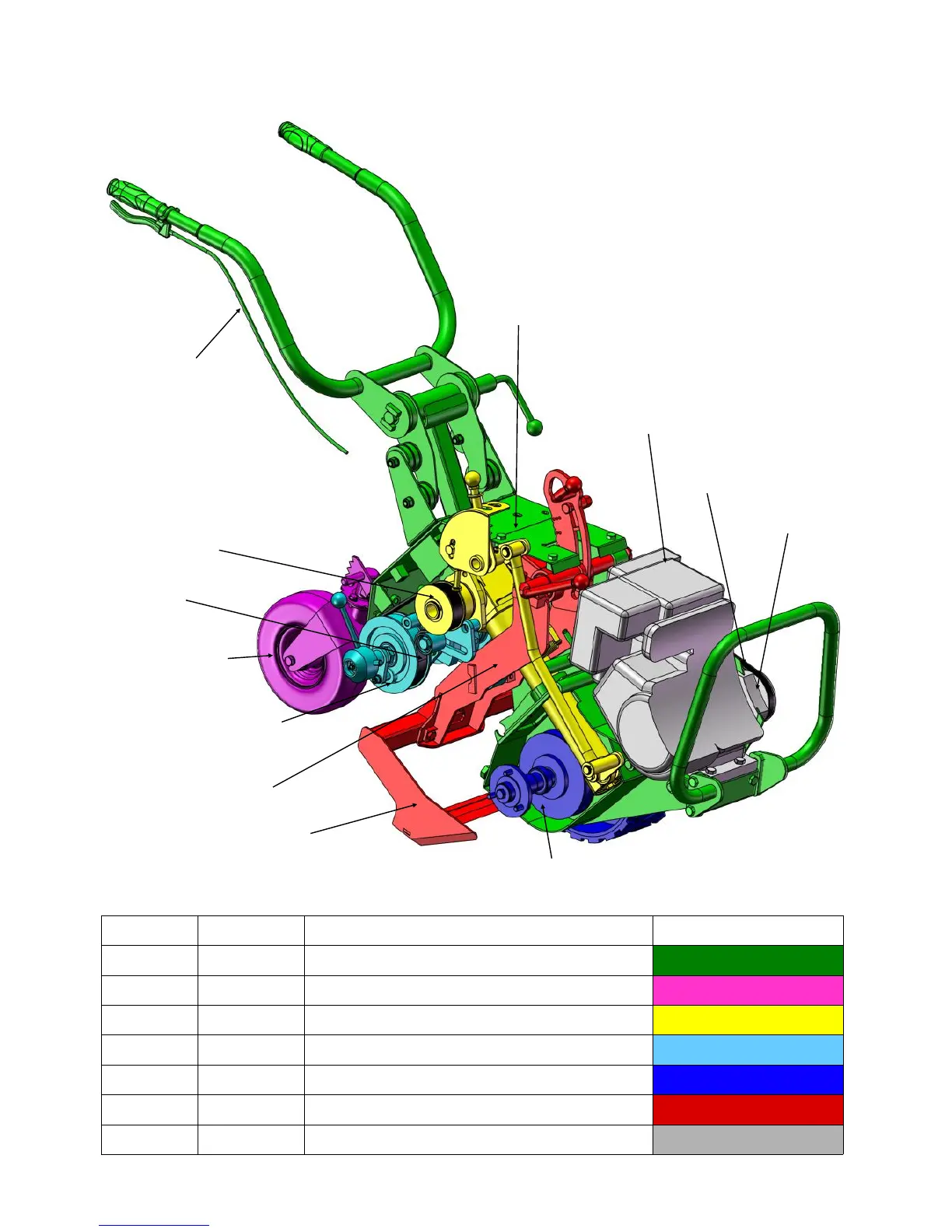

Groundsman TMC26 - TMC26 Machine Breakdown; Machine Component Assemblies

1. CHASSIS ASSEMBLY
7. HONDA ENGINE GX200 6.5 HP
BELT
ENGINE CLUTCH
5. FRONT AXLE
3. GROUND DRIVE
ASSEMBLY
BELT
4. CRANK ASSEMBLY
2. REAR WHEEL
ASSEMBLY
6. BLADE ASSEMBLY
BLADE
THROTTLE CABLE
ITEM NO. PART NO. DESCRIPTION COLOUR CODE
1 BJB 001 Chassis Assembly
2 BJB 214 Rear Wheel Assembly
3 BJB 298 Ground Drive Assembly
4 BJB 319 Crank Assembly
5 BJB 253 Front Axle Assembly
6 BJB 529 Blade Assembly
7 BJB 457 Engine, Clutch, Belt & Chains
Page 6
TMC26 Machine Breakdown
