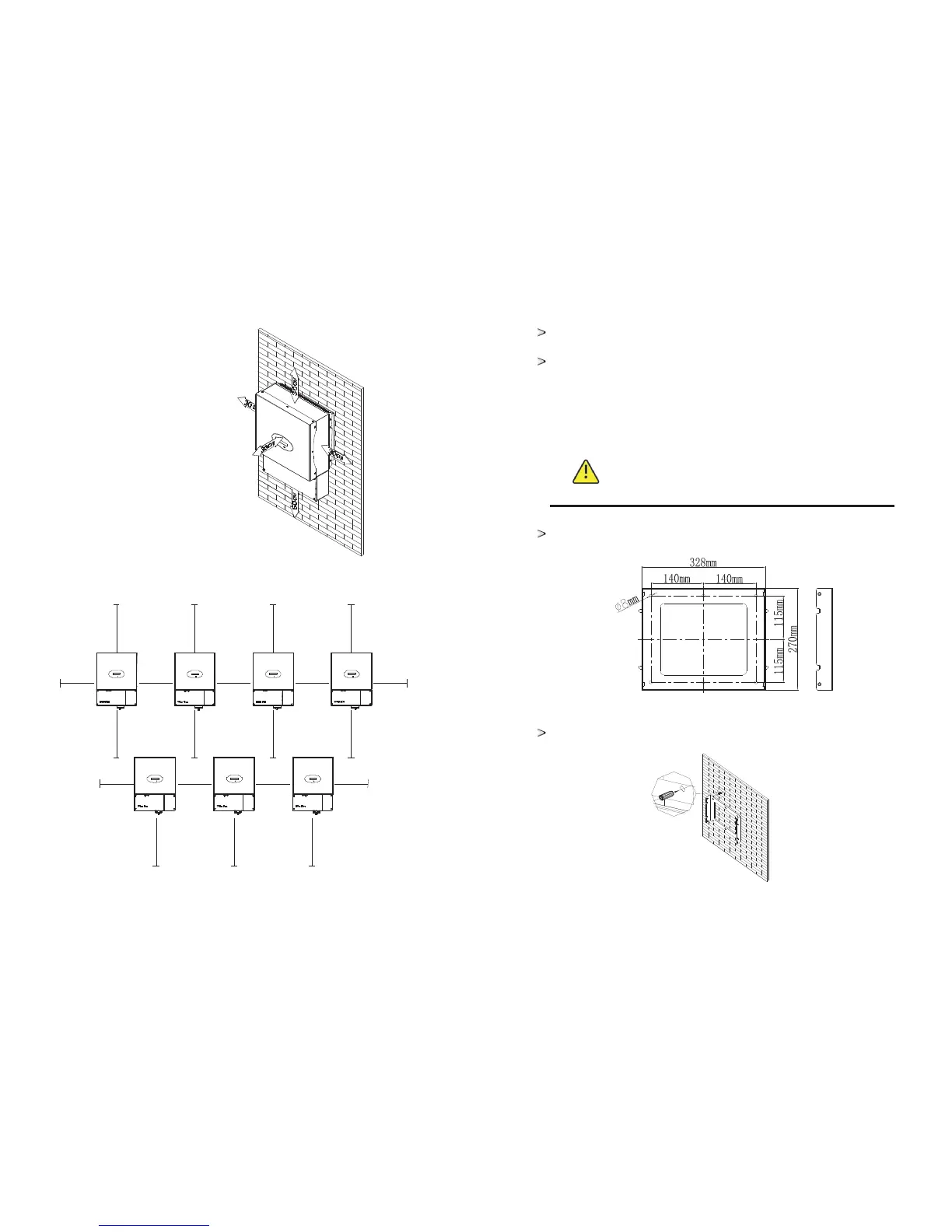

Ambient dimensions of one inverter
There must be sufficient clearance between the individual inverters to ensure
that the cooling air of the adjacent inverter is not taken in.
If necessary, increase the clearance spaces and make sure there is enough
fresh air supply to ensure sufficient cooling of the inverters.
5.3 Mounting the Inverter with bracket
WARNING
In order to avoid electrical shock or other injury,
inspect existing electronic or plumbing installations
before drilling holes.
The dimension of bracket as follow
Ambient dimensions of a series inverters
Min.50cm
Min.30cm
Min.50cm Min.50cm
Min.50cm Min.50cMin.50cm Min.50cm
Min.50cm Min.50cm
Min.50cm
Min.50cm
Min.30cm Min.30cm Min.30cm
Min.30cm Min.30cm Min.30cm Min. 30c m Mi n.30cm
