4.4.1.3 Check accessories

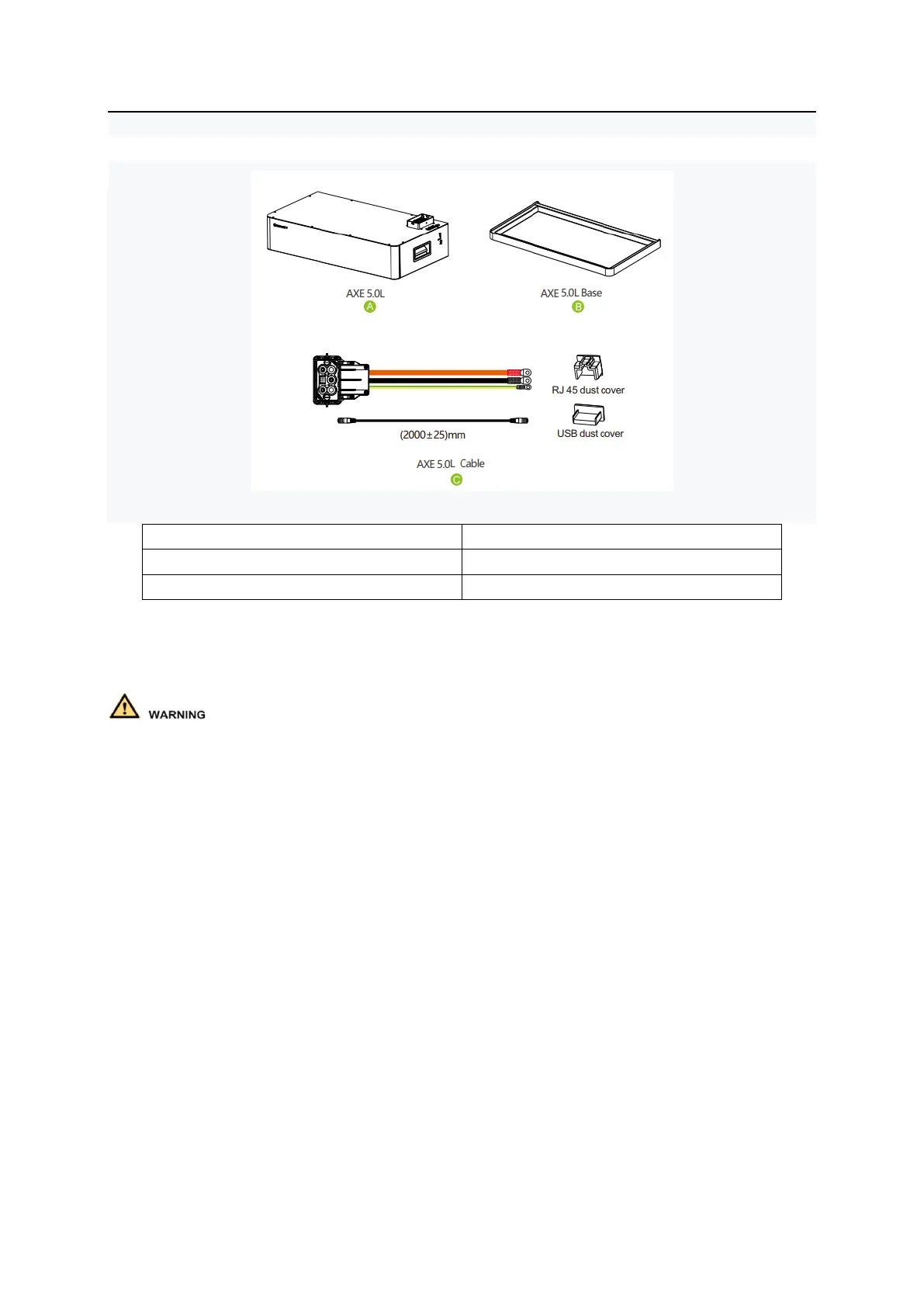

Figure 9: Parts list
Installation Method
Compound Mode
Single cluster installation
A*M+B+C
Floor installation into N columns
A*M+B*N+C*N
Note: "M" means the number of batteries, "N" means the number of clusters.
4.5 Installation
4.5.1 Floor Standing Installation
1) The battery base is required while installing the battery system .
2) The maximum quantity of stacking battery pack is 10, if it exceeds 10, please install them by
the way of multiple clusters in parallel.
3) Please install indoors and ensure the level of the ground.
