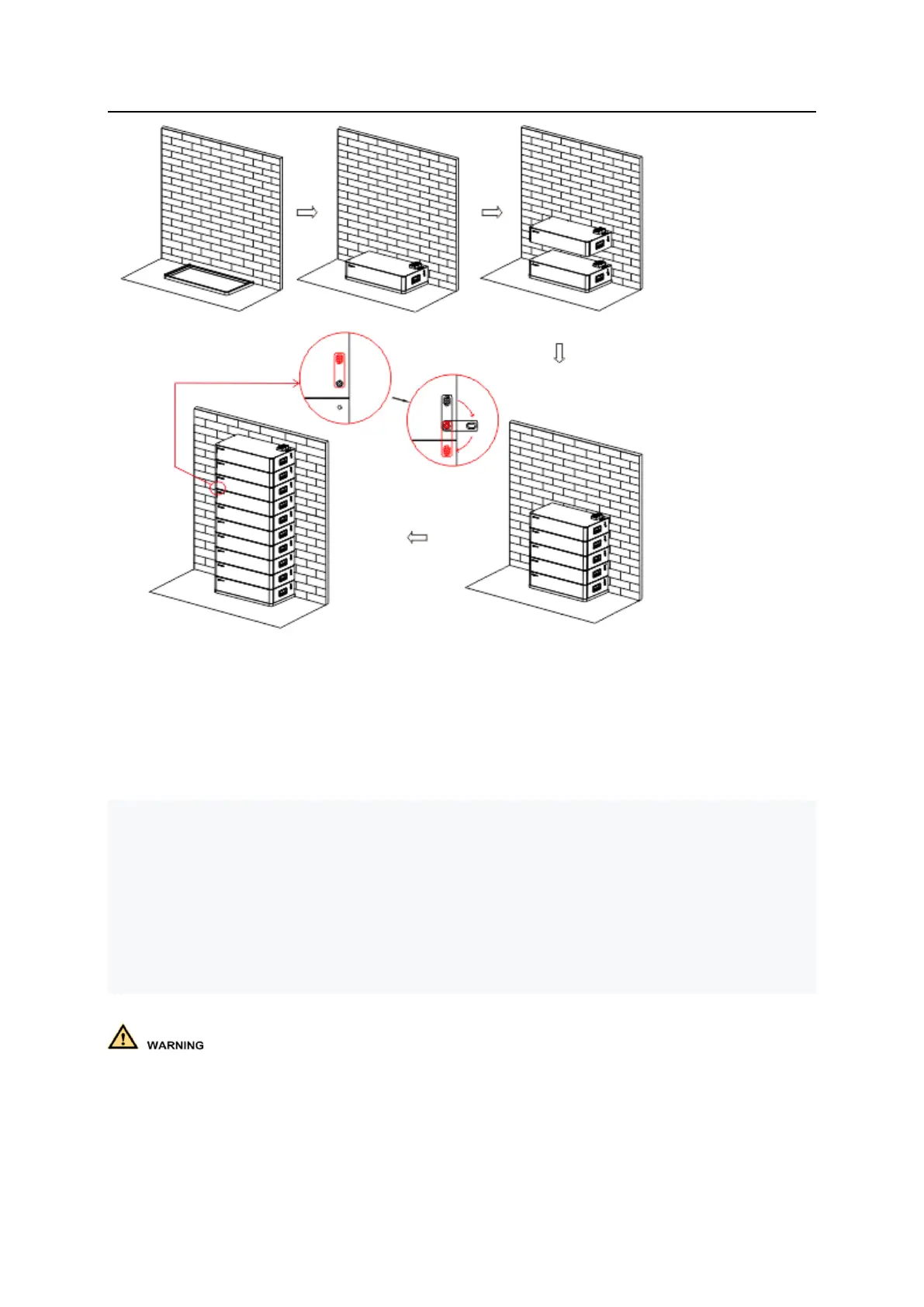

Figure 10:Multiple AXE 5.0L with base installation process
Step 1: Check the ground, make sure that the ground is level, then place the base at the position where it
needs to be installed, and keep the base level
Step 2: Place the first battery on the base
Step 3: Stack the second battery on the first battery, stack the third battery on the second battery, and so on,
until all the batteries are installed
Step 4: Make sure that all the batteries are aligned, then use a screwdriver to open the connectors on the left
end of the batteries, rotate the connector position, and connect the upper and lower battery modules
together.
4.5.2 Electrical Connection
 Do not forget wear ESD wrist strap and gloves, safety gloves and goggles.
 It is recommended that the power line and communication line between the battery and the PCS
should not exceed 2 meters
4.5.2.1 Communication interface definition:
