Shenzhen Growatt New Energy CO.,Ltd
15

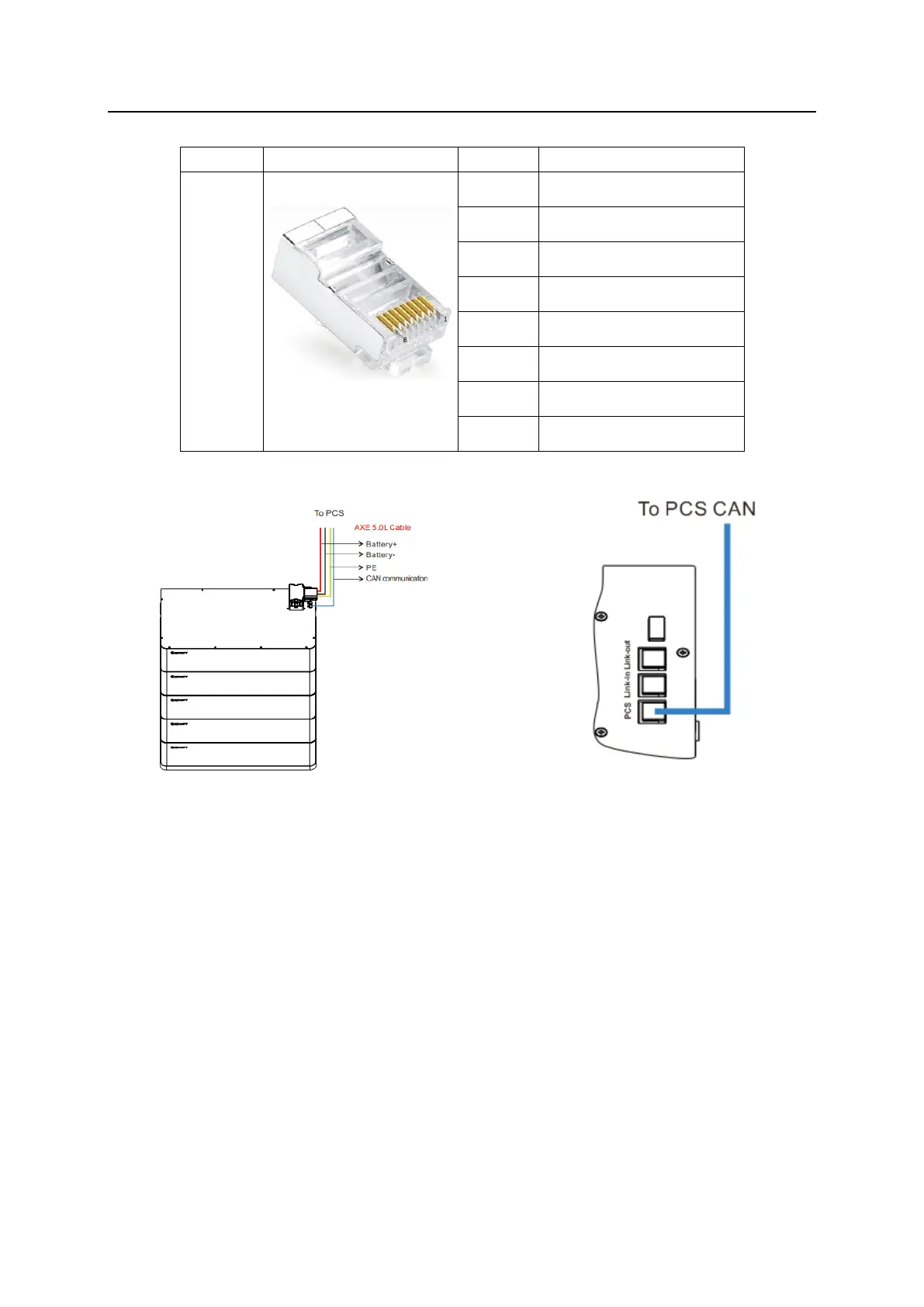

Item
Crystal head picture
Serial no.
Definition
PCS
1
RS485_B
2
RS 485_A
3
GND_COM
4
CAN_H
5
CAN_L
6
GND_COM
7
WAKE-
8
WAKE+
4.5.2.2 Single cluster wiring
Figure 11: Block diagram of a single cluster system Figure 12: Single cluster communication wiring
