Do not dispose of faulty Backup box or accessories together with
household waste. Please accordance with the disposal regulations
for electronic waste which apply at the installation site at that time.
Ensure that the old unit and, where applicable, any accessories are
disposed of in a proper manner.
7
8
Please make sure that all wiring in the Backup box is tightened，check the connection
diagram with section 5.2.

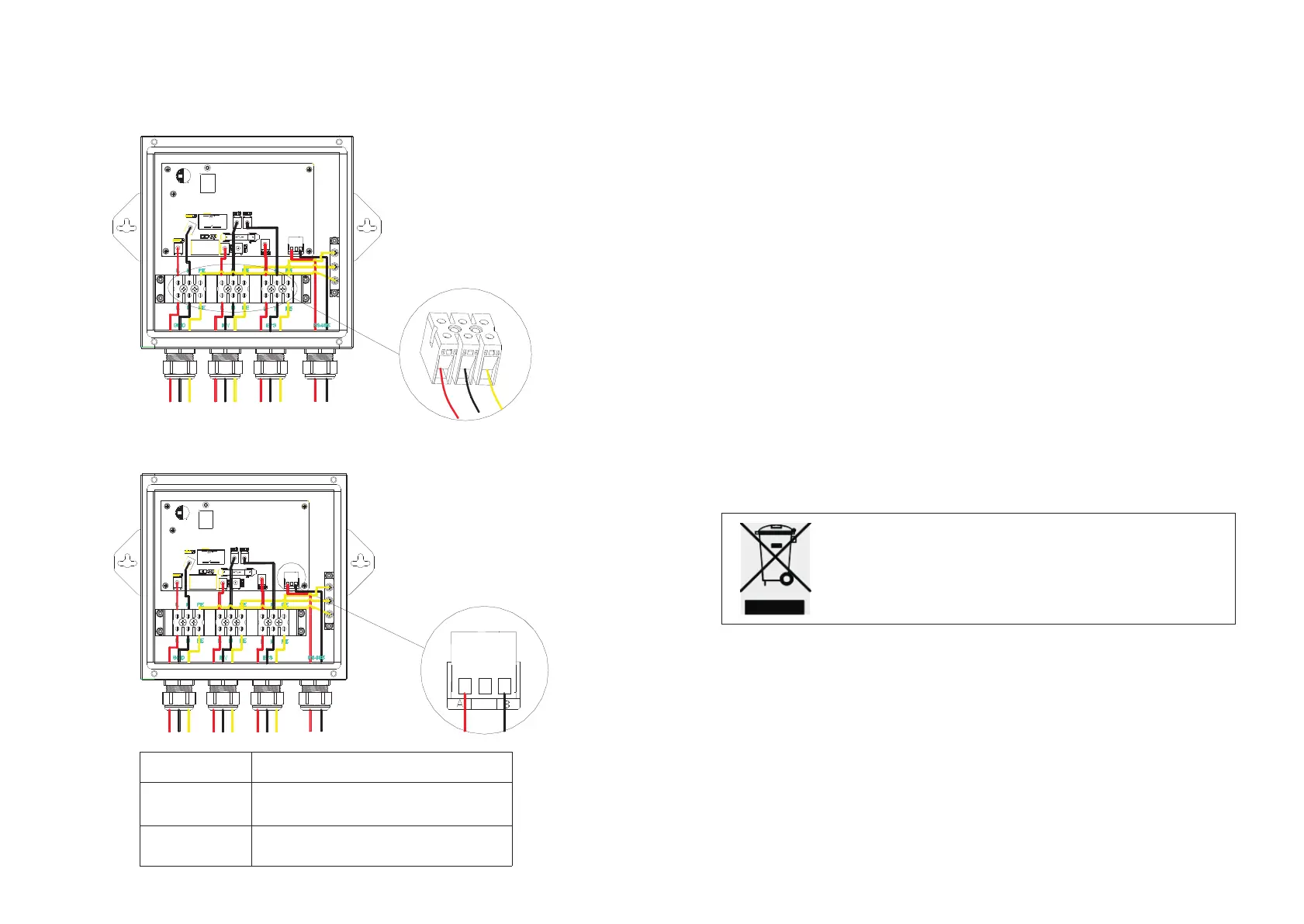

5.4.3 Single control cable wiring
Single control cable wiring is shown below:
AC wiring is shown below:
Connect Min2500-6000TL-XH
SYS COM port 485A2
Connect Min2500-6000TL-XH
SYS COM port 485B2
5.4.4 Checking
6.1 Unpacking the Backup box
6 Decommissioning
Pack the Backup box. Use the original packaging or packaging that is suitable for the
weight and dimensions of the products.
6.2 Storing the Backup box
Store the Backup box in a dry place where ambient temperatures are always between
-35°C and +60°C.
6.3 Disposing of the Backup box
7 Troubleshooting
After the initial installation, if the system cannot be connected to the grid, refer to 5.4
check whether the GRID, INV, EPS lines correspond to the Backup box port.
During use, if the EPS load does not receive power during a power outage, turn off the
system and check if the Rs485, GRID, INV, EPS lines are properly connected.
