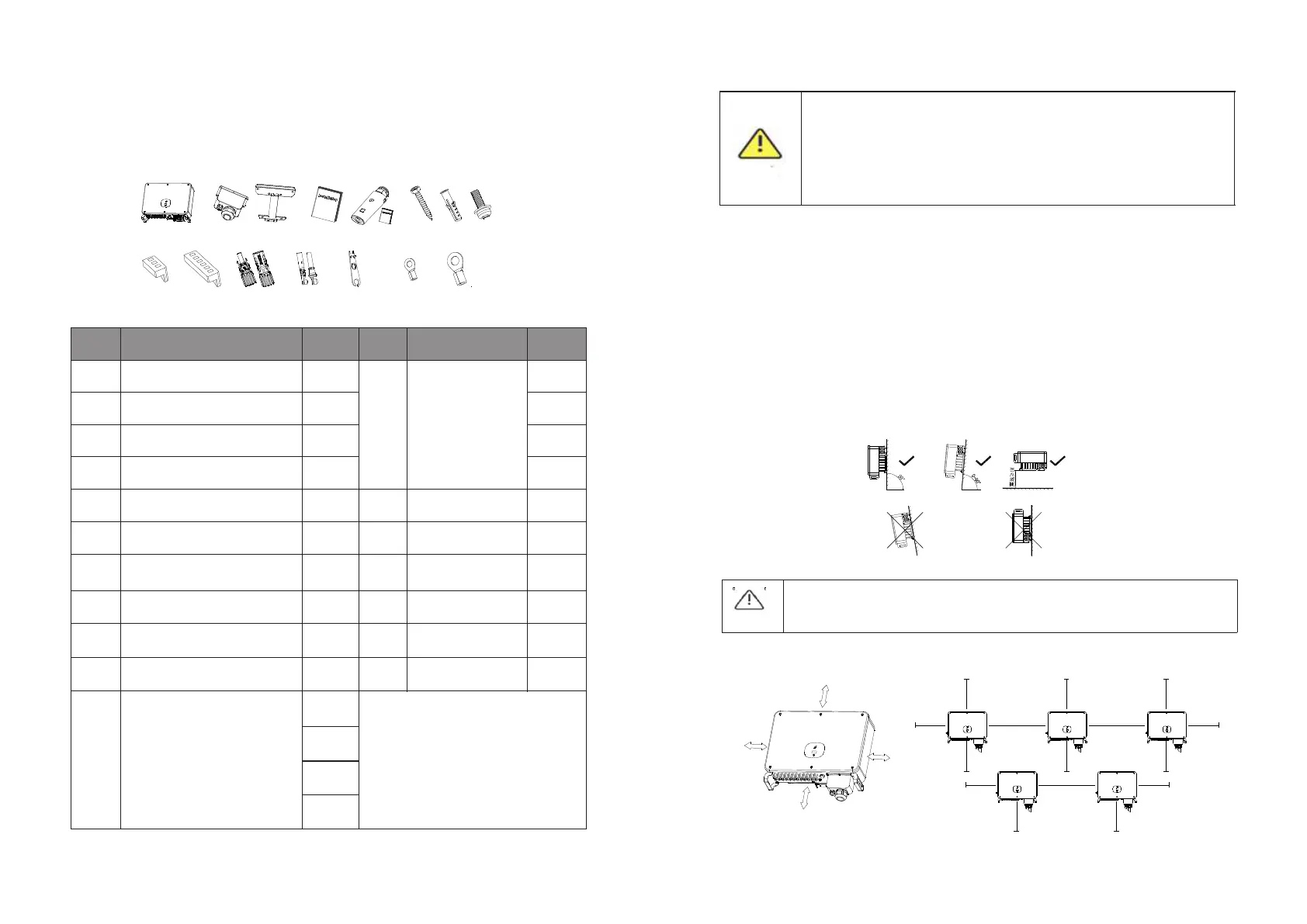

4 Unpacking
Checking before installation
1>Before unpacking the inverter, check the outer packing materials for damage.
2>After unpacking the inverter, check that the contents are intact and complete. If any
damage is found or any component is missing, contact your supplier.
The MAC series inverter accessories are as follows：
Figure 4.1
Installation5
●To prevent device damage and personal injury, keep balance when
moving the inverter because it is heavy.
●Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals
are not designed to support the weight of inverter.
●When placing inverter on the floor, put foam or paper under the inverter
to protect its cover.
5.1Basic Installation Requirements
A.Ensure that the installation wall is solid enough to bear the inverter.(Inverter weigh
please refer to installation manual Figure 5.1 )
B.There must be enough installation space to fit the size of inverter.
C.Do not install inverter on flammable or heat-intolerant buildings.
D.This inverter is IP 65 protection, you can install it indoor or outdoor.
E. Install the inverter in the eye for easy viewing of the OLED display and maintenance
work.
F.To avoid inverter performance de-rate due to the over heat, please do not expose the
inverter under direct sunlight.
G.The installation humidity should be from 0-95%.
H.The surrounding temperature of inverter should be from -25℃ ~ +60℃.
I.Inverter should be installed in a vertically or rear tilted surface, please refer to
following drawings.
Figure 5.1
J.To ensure the inverter can work smoothly and easy for personnel to operate, please
notice there is sufficient space for inverter, refer to following drawing：
Figure 5.2
10
9
When the equipment is placed horizontally, the height from the ground
must be more than 1 meter.
A B
C
D E
JI
H
G
F
K L M N
O
≥500mm
≥500mm
≥500mm
≥500mm
Min 50cm
Min 50cm
Min 50cm
Mi n 5 0cm Mi n 1 00c m Mi n 1 00c m
Mi n 1 00c m
Min 50cm
Min 50cm
Mi n 5 0cm
Min 50cm
Min 50cm
Min 50cm
Mi n 5 0cm
Mi n 5 0cm
NOTICE
WARNING
PV inverter
AC Protective cover
Wall mount
User manual
Data collector / manual (optional)
Self-tapping screw
Plastic expansion tube
Safety screw
485 terminal (3PIN)
485 terminal (6PIN)
PV+/PV- terminal
PV+/PV- metal
terminal
PV Removal tool
RNBS14-6
SC50-10
Warranty card
Copy of the business
license
Certificate
10/10
10/10
8/8
8/8
9/9
9/9
12/12
a
a
b
c
d
b
c
d
Qty.
Qty.
Description
Description
No.
No.
Note:
1.a:MAC 30KTL3-X;b:MAC 40KTL3-
X;c:MAC 50KTL3-X;d:others;
2.The MAC series comes standard with
50-10 copper crimp terminals. If you
have copper and aluminum terminals,
please contact the supplier.
