Growatt MOD 10KTL3-X User Manual

11
12
Installation5
5.1 Basic installation requirements
Ø The wall on which the inverter is mounted must be sturdy and can withstand the
weight of the inverter for a long time (refer to the specifications in Chapter 17 for the
weight of the inverter);
Ø The installation location must match the size of the inverter;
Ø Do not install the inverter on a building constructed of flammable or heat-resistant
materials;
Ø Install the inverter in an eye-view orientation to facilitate inspection of the OLED
display and maintenance work;
Ø The machine's degree of protection is IP66 and can be installed indoors and outdoors;
Ø It is not recommended to expose the inverter directly to strong sunlight to prevent
overheating and cause power derating;
Ø The humidity of the installation environment should be between 0 and 90%;
Ø The ambient temperature around the inverter should be between -25 ° C ~ 60 ° C;

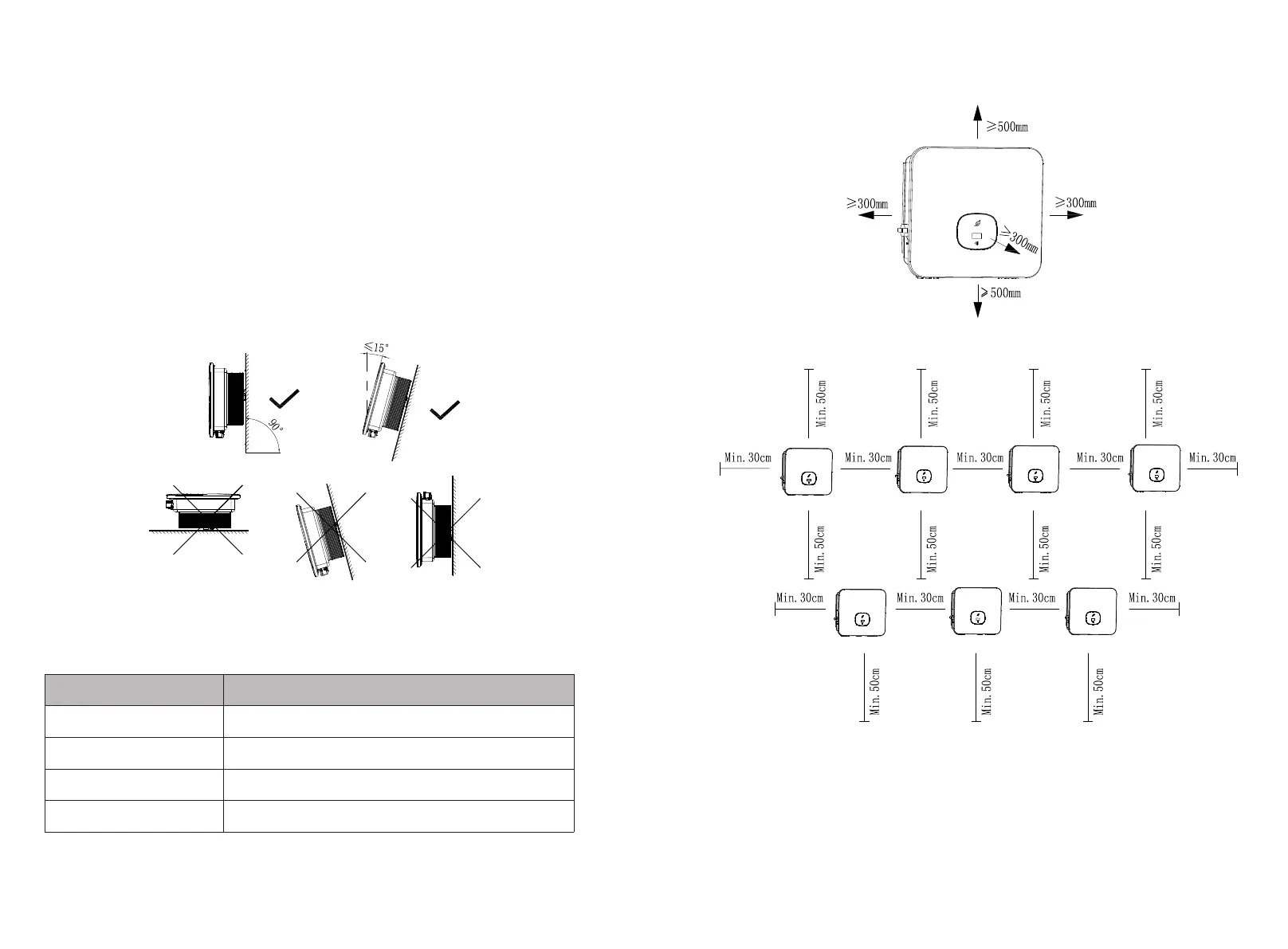

Ø The inverter can be mounted on a plane that is tilted vertically or backwards.
Please refer to the following figure:
Ø In order to ensure the normal operation of the machine and the convenience of
personnel operation, please pay attention to provide sufficient clearance for the inverter.
Please refer to the figure below:
Direction
Minimum clearance (mm)
Above
500
Under
500
Both sides
300
Forward
300
Fig 5.1 Installation diagram
Ø Do not install the inverter on the TV antenna, other antennas or antenna cables;
Ø Do not install the inverter in the living area;
Ø Do not install the inverter where children can reach it;
Ø The inverter should be installed in a sheltered and protected location such as cool,
rain-proof;
Fig 5.2 Installation dimensions for one inverter
Fig 5.3 Installation dimensions for multiple inverters

Growatt MOD 10KTL3-X Specifications

General

Max. DC Voltage	1100 V
Nominal AC Power Output	10000 W
Max. AC Apparent Power	11000 VA
Number of MPP Trackers	2
Max. Input Current per MPP Tracker	16 A
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Power	13000 W
Start Voltage	180 V
Nominal DC Voltage	600 V
Number of DC Inputs per MPPT	2
Max. AC Current	16 A
Nominal Grid Frequency	50/60 Hz
THDI	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Efficiency	98.3%
Noise Level	<30 dB
Cooling Method	Natural Convection
MPPT Voltage Range	160 V to 1000 V
Nominal AC Voltage	230/400 V
Power Factor	0.8 leading ... 0.8 lagging
Communication	RS485 / WiFi / Ethernet
AC Voltage Range	310 V - 480 V
