Growatt MOD 10KTL3-X User Manual

14
13

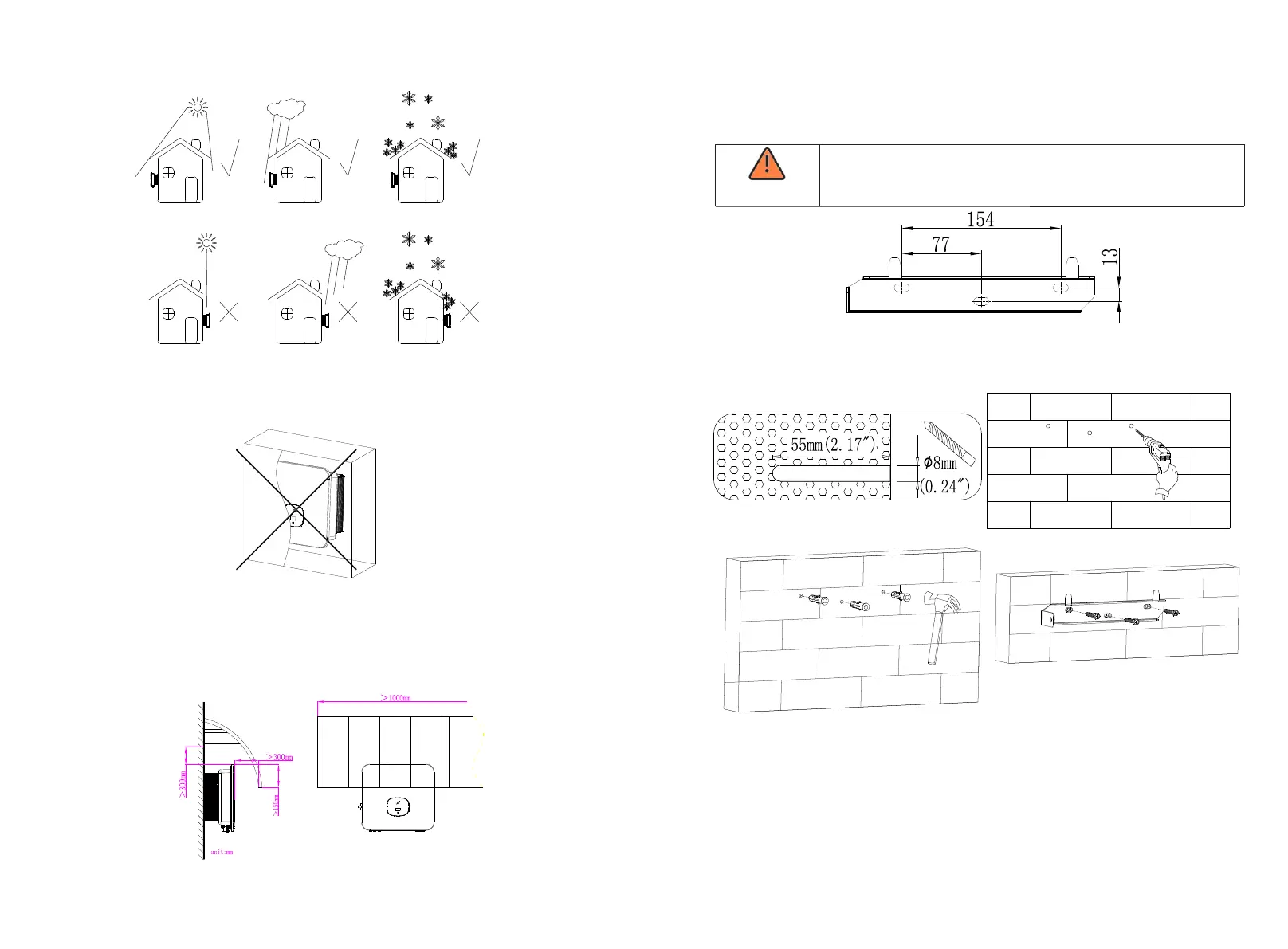

Fig 5.4 Installation Environment
Ø Make sure that the inverter is installed in a suitable place and is not allowed to be
installed in a closed box;
Fig 5.5 Closed box
Ø In order to reduce the inverter load and extend the life of the inverter due to direct
sunlight, we recommend installing a awning. The distance between the awning and the
inverter is as follows:
5.2 Install the wall mount
5.2.1 Install the wall mount
To prevent electric shock or other damage, be sure to check the wall
for power or other piping before opening the hole in the wall.
Danger
Secure the wall mount as shown, do not let the screws flush with the wall, instead expose
2 to 4 mm.
5.3 Installing the inverter
Note: Before installing the inverter, you must first make sure that the wall mount is firmly
fixed to the wall.
steps:
1.Hang the inverter on the wall mount and keep the inverter balanced when hanging.
2.To ensure that the inverter can be securely attached to the wall, secure the side of the
inverter with the M5 safety screw on the left.
Fig 5.6 Sunshade
Fig 5.7 Specifications of wall mount
Fig 5.8 Schematic diagram of wall mount installation

Growatt MOD 10KTL3-X Specifications

General

Max. DC Voltage	1100 V
Nominal AC Power Output	10000 W
Max. AC Apparent Power	11000 VA
Number of MPP Trackers	2
Max. Input Current per MPP Tracker	16 A
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Power	13000 W
Start Voltage	180 V
Nominal DC Voltage	600 V
Number of DC Inputs per MPPT	2
Max. AC Current	16 A
Nominal Grid Frequency	50/60 Hz
THDI	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Efficiency	98.3%
Noise Level	<30 dB
Cooling Method	Natural Convection
MPPT Voltage Range	160 V to 1000 V
Nominal AC Voltage	230/400 V
Power Factor	0.8 leading ... 0.8 lagging
Communication	RS485 / WiFi / Ethernet
AC Voltage Range	310 V - 480 V
