Growatt MOD 11KTL3-X User Manual

23
24

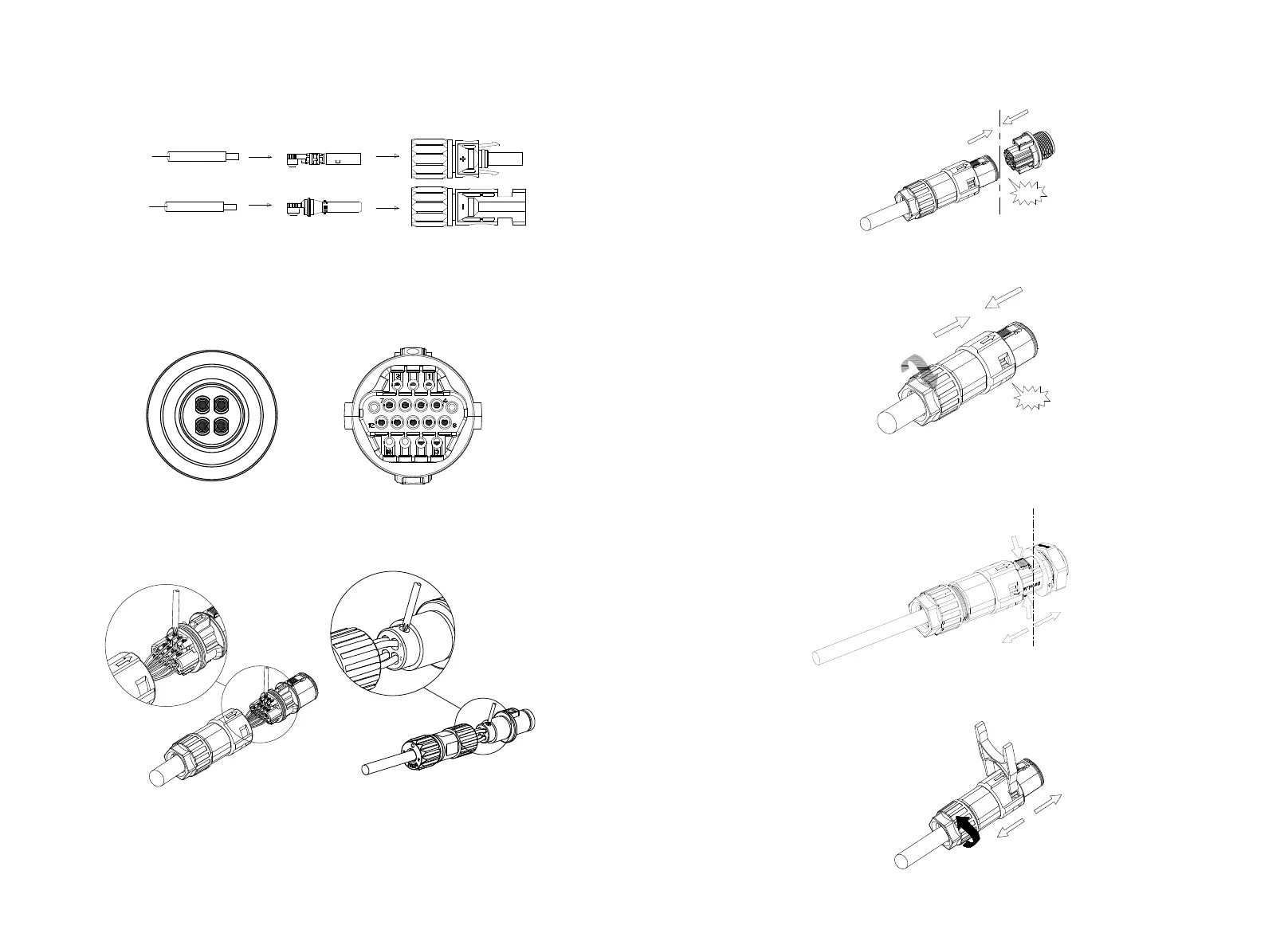

6.4 Connect the signal cable
The MOD series inverter has an 4-Pin or 16-Pin signal connector except Vietnam
models.The client signal line port is as follows:
1.Strip the cable 10mm through the waterproof gland, thread sleeve, and tighten the
screws.
Connect DC terminal
Cables
Cables
Positive metal terminal
Positive connector
Negative connector
Negative metal terminal
4~6mm²
4~6mm²
Fig 6.12
Fig 6.13
Fig 6.14
1
2
3
4
A just for Vietnam models
B just for Vietnam models
B
A
Fig 6.15
Fig 6.16
Fig 6.17
Fig 6.18
2. Push the threaded sleeve into the socket and tighten the waterproof gland.
3.Connect the client to the inverter plug until both are tightly locked on the inverter.
Remove the signal connector
1.Press down the fastener and pull it out of the inverter.
the inverter side
2. Insert the H-shaped tool and pull it out of the socket.
Click!
Click!
Inverter side

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
