Growatt MOD 11KTL3-X User Manual

8
7
2.3.3 Operation Warnings
CAUTION
WARNING
Ø Ensure all connectors are sealed and secure during operation.
Ø Although designed to meet all safety requirements, some parts
and surfaces of inverter are still hot during operation. To reduce
the risk of injury, do not touch the heat sink at the back of the PV-
inverter or nearby surfaces while inverter is operating.
Ø Incorrect sizing of the PV panels may result in voltages being
present which could destroy the inverter. The inverter display will
read the error message “PV voltage High!”
Ø All operations regarding transport, installation and start-up,
including maintenance must be operated by qualified, trained
personnel and in compliance with all prevailing codes and
regulations.
Ø When the inverter is disconnected from the grid, please be careful
because some components can retain enough charge to create a
shock hazard. In order to minimize the occurrence of this
situation,observe all corresponding safety symbols and marks in
this manual.
Ø Under special circumstances, the inverter may be subject to
electromagnetic interference from surrounding equipment. At this
time, the user is obliged to take correct measures to reduce the
interference from surrounding equipment to the inverter.
Ø Do not stay close to the inverter less than 20cm at any time.
Product overview 3

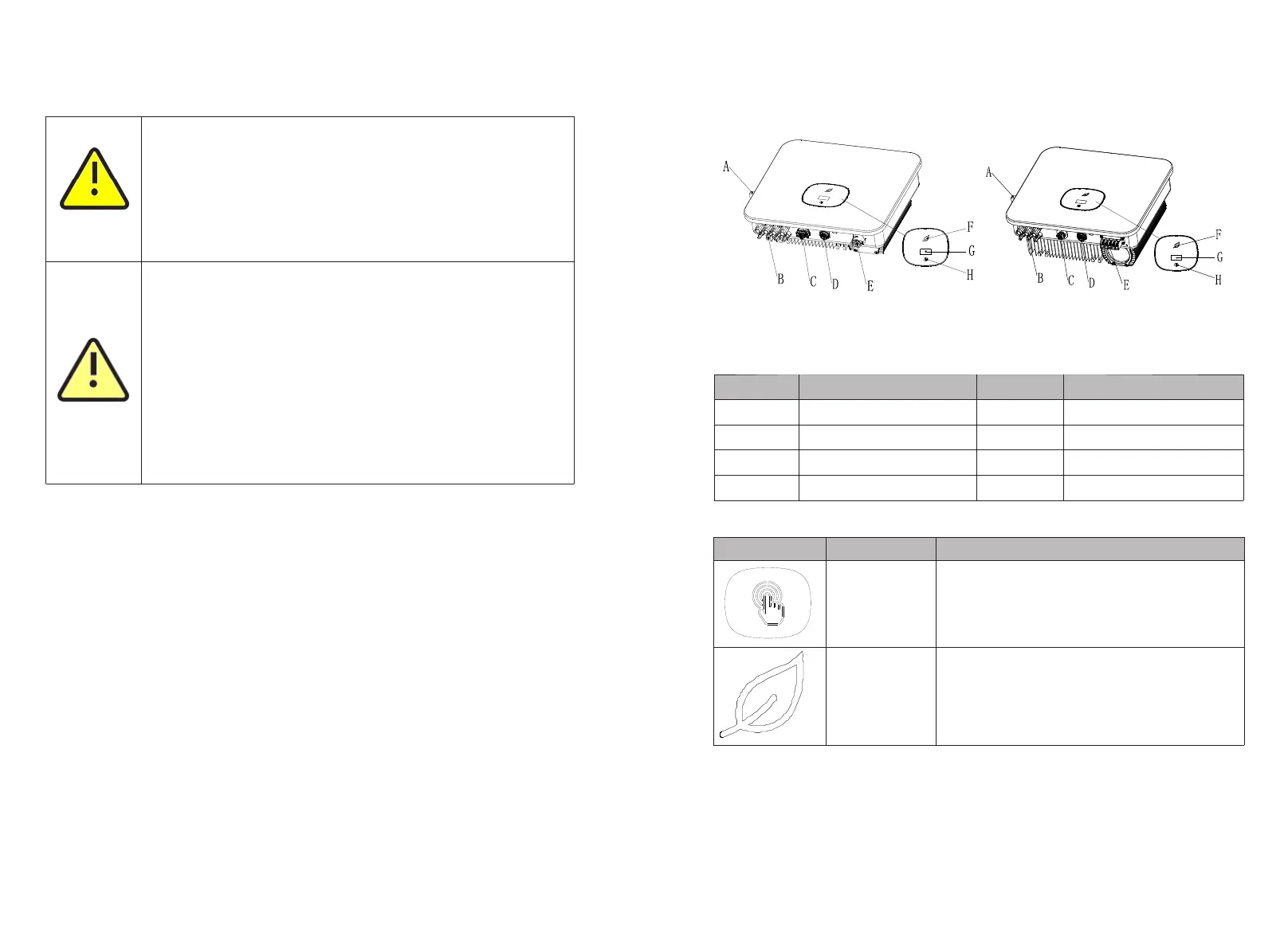

3.1 Appearance overview
The appearance instructions are as follows:
No.
Name
No.
Name
A
DC switch
E
AC terminal
B
PV terminal
F
LED indicator
C
RS485 port
G
LCD screen
D
USB port
H
Touch button
The label description on the inverter:
LOGO
Description
Description
Tap logo
Touch button: We can switch the LED display and
set parameters by touching.
Inverter status
identification
Indicate the current running status of the inverter
Red: fault
Green: normal operation
Flashing red light: warning
Flashing green: update program
Fig 3.1
(just for Vietnam models)

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
