Growatt MOD 11KTL3-X User Manual

10
9

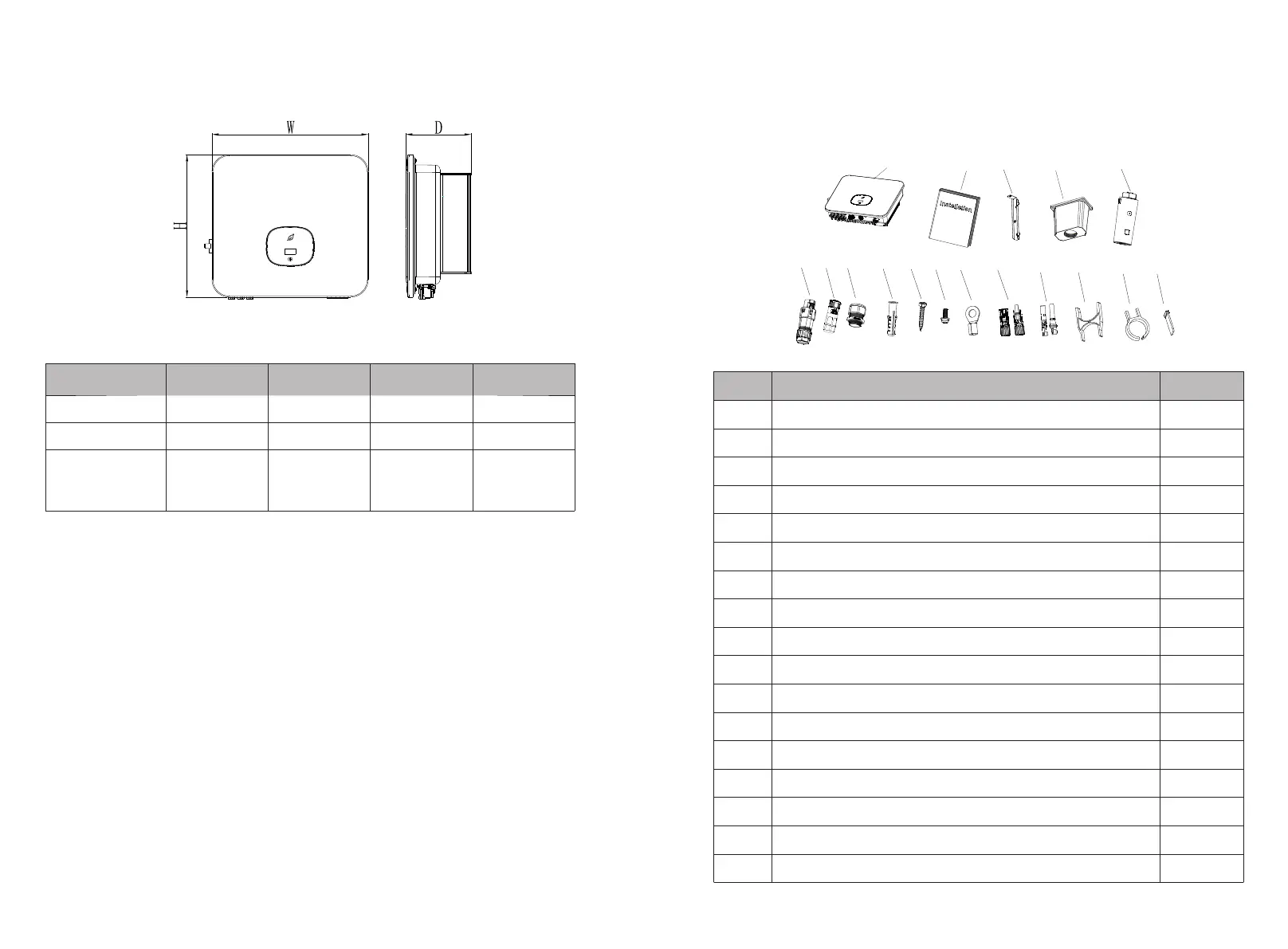

3.2 Dimensions
Size and weight:
Model
Height (H)
Width (W)
Depth (D)
Weight
MOD 3-6KTL3-X
387mm
425mm
147mm
12.5kg
MOD 7-11KTL3-X
387mm
425mm
178mm
14kg
MOD 12-15KTL3-
X & MOD 7-
11KTL3-X-AU
387mm
425mm
178mm
16.0kg
If you want to store the inverter in a warehouse, you must choose a suitable location for
the inverter.
Ø The equipment must be stored in its original packaging.
Ø The storage temperature should always be between -25° C and +60° C, and the
storage relative humidity should be less than 90%.
Ø If you need to store a batch of inverters, the maximum number of layers of the
original carton is 4.
3.3 Storage Environment
Unpacking inspection 4
Before opening the inverter package,please check whether the outer package is
damaged.After unpacking,please check whether the appearance of the inverter is
damaged or lack of accessories.If there is damage or missing parts,please contact the
dealer.
No.
Description
Qty.
A
Inverter
1
B
Quick Installation Manual
1
C
Wall mount
1
D
AC waterproof cover(just for Vietnam models)
1
E
Datalogger
1
F
COM port signal connector
1
G
AC connector
1
H
Waterproof connector(just for Vietnam models)
1
I
Plastic expansion tube
3
J
Expansion screw
3
K
Security screw
1
L
AC customer's terminal(just for Vietnam models)
5
M
PV terminal shell
3/3
N
PV terminal core
3/3
O
COM port removal tool
1
P
PV terminal removal tool
1
Q
AC terminal block insulation partition(just for Vietnam models)
1
Fig 4.1
A B
C
D E
F
HG
I J K L M N O
P
Q
Fig 3.2

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
