Growatt MOD 11KTL3-X User Manual

1.3.3 Glossary
AC
Abbreviation for "Alternating Current”
DC
Abbreviation for "Direct Current”
Energy
Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours).
The energy is the power calculated over time. For example, your inverter operates at a
constant power of 4600 W for half an hour and then at a constant power of 2300 W for
another half an hour, it has fed 3450Wh of energy into the power distribution grid within
that hour.
Power
Power is measured in W (watts), kW (kilowatts) or MW (megawatts). Power is an
instantaneous value. It displays the power your inverter is currently feeding into the
power distribution grid.
Power rate
Power rate is the radio of current power feeding into the power distribution grid and the
maximum power of the inverter that can feed into the power distribution grid.
Power factor
Power factor is the ratio of active power or watts to apparent power or volt amps. They
are identical only when current and voltage are in phase then the power factor is 1.0. The
power in an ac circuit is very seldom equal to the direct product of the volts and amperes.
In order to find the power of a single phase ac circuit the product of volts and amperes
must be multiplied by the power factor.
PV
Abbreviation for photovoltaic.
Wireless communication
The external wireless communication technology is a radio technology that allows the
inverter and other communication products to communicate with each other.The
wireless communication device is not standard. Require to order extral if you need it.
Safety 2
2.1 Product description and features
2.1.1 Product description
Growatt series photovoltaic inverters are used to convert the direct current generated by
photovoltaic panels into alternating current, and send it to the grid in a three-phase
manner. Growatt MOD 3-15K TL3-X series inverter can be connected to 2 strings (12-15K
TL3-X and 7-11K TL3-X-AU can be connected to three strings), has 2 maximum power
tracking point trackers, so suitable for connection 2 Set of arrays of different panels.
Position
Description
A
Solar panel
B
DC circuit breaker
C
Inverter
D
AC circuit breaker
E
Electric energy meter
F
Utility grid

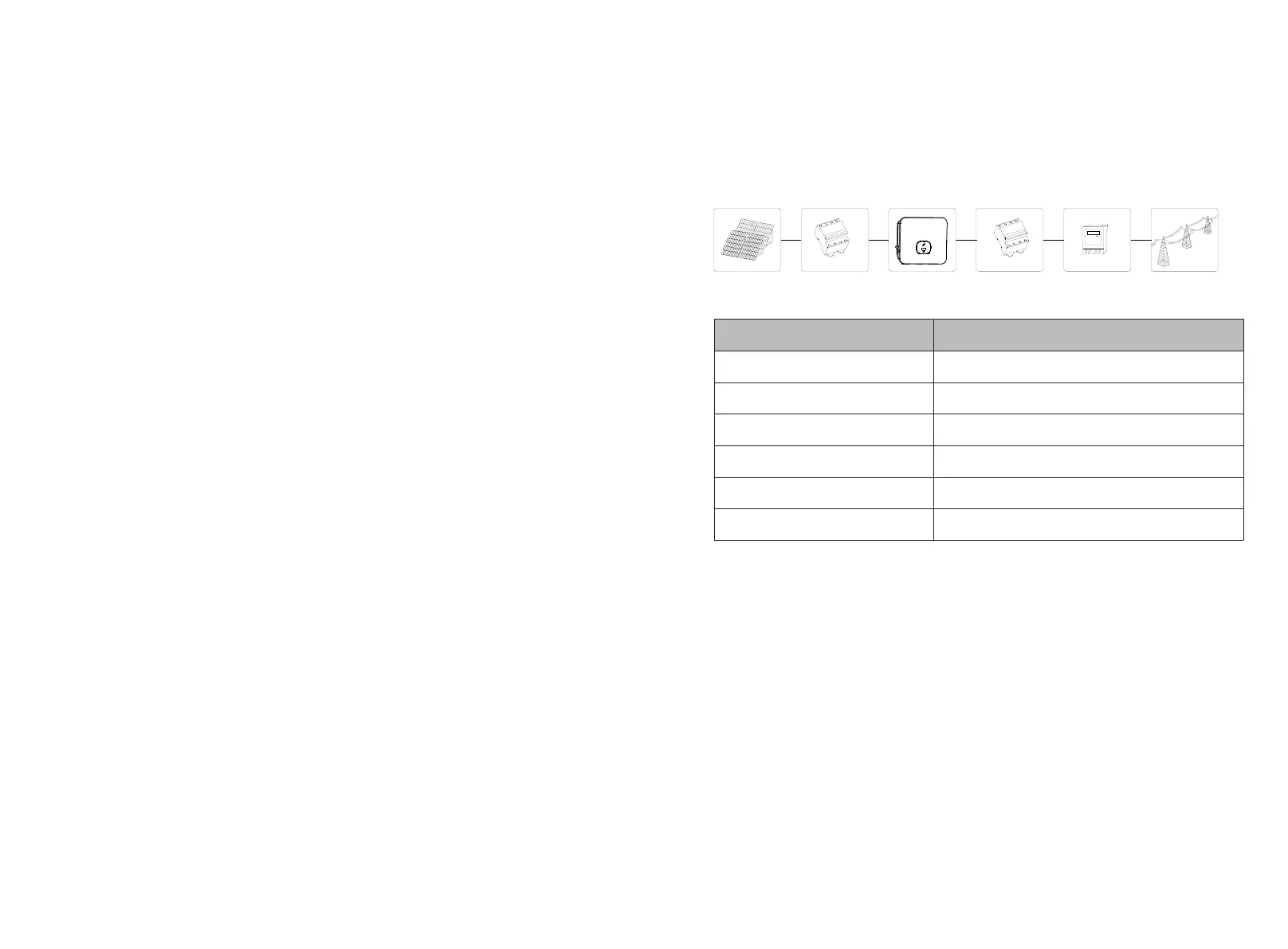

As shown in Fig 1.1 above,a complete photovoltaic grid-connected system includes
photovoltaic modules,photovoltaic inverters,public grids and other components.In the
photovoltaic module system,the photovoltaic inverter is a key component.
Note:If the selected photovoltaic module requires positive or negative grounding, please
contact Growatt for technical support before installation.
The characteristics of the inverter are as follows:
Ø Dual independent maximum power point tracking
Ø Built-in DC switch
Ø Compatible with RS485/Wifi/GPRS/4G communication
Ø 140V-1100V input voltag range
Ø The maximum efficiency is as high as 98.6%
Ø OLED+LED/WIFI+APP display
Ø Integrated with touch button
Ø Protection grade Ip66
Ø The weight is only 16kg
Ø Simple installation
2.1.2 Product features
Fig 2.1
3
4
A B
C
D E F

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
