Enable NLine
Set Country
VDE0126
Set Country
xxxxxxx
Disable
Enable
Set OK
Exporlimit
OFF ON
Meter
CT
Set OK
Set OK
Reset factory
NO
YES
Set OK
General
Advanced
AUTO TEST
Set Date
2018-12-14
Set Time
12:30:30
Set Date
2018-12-14
Set Date
2018-12-14
Set Time
12:30:30
Set Time
12:30:30
Waiting to start PASS
Set OK
Set OK
Set Comaddr
1
Set Comaddr
2
Set OK
Set Language
English
Set Language
XXXXXXX
Set OK
General
Advanced
Password
123
9.3 Function setting

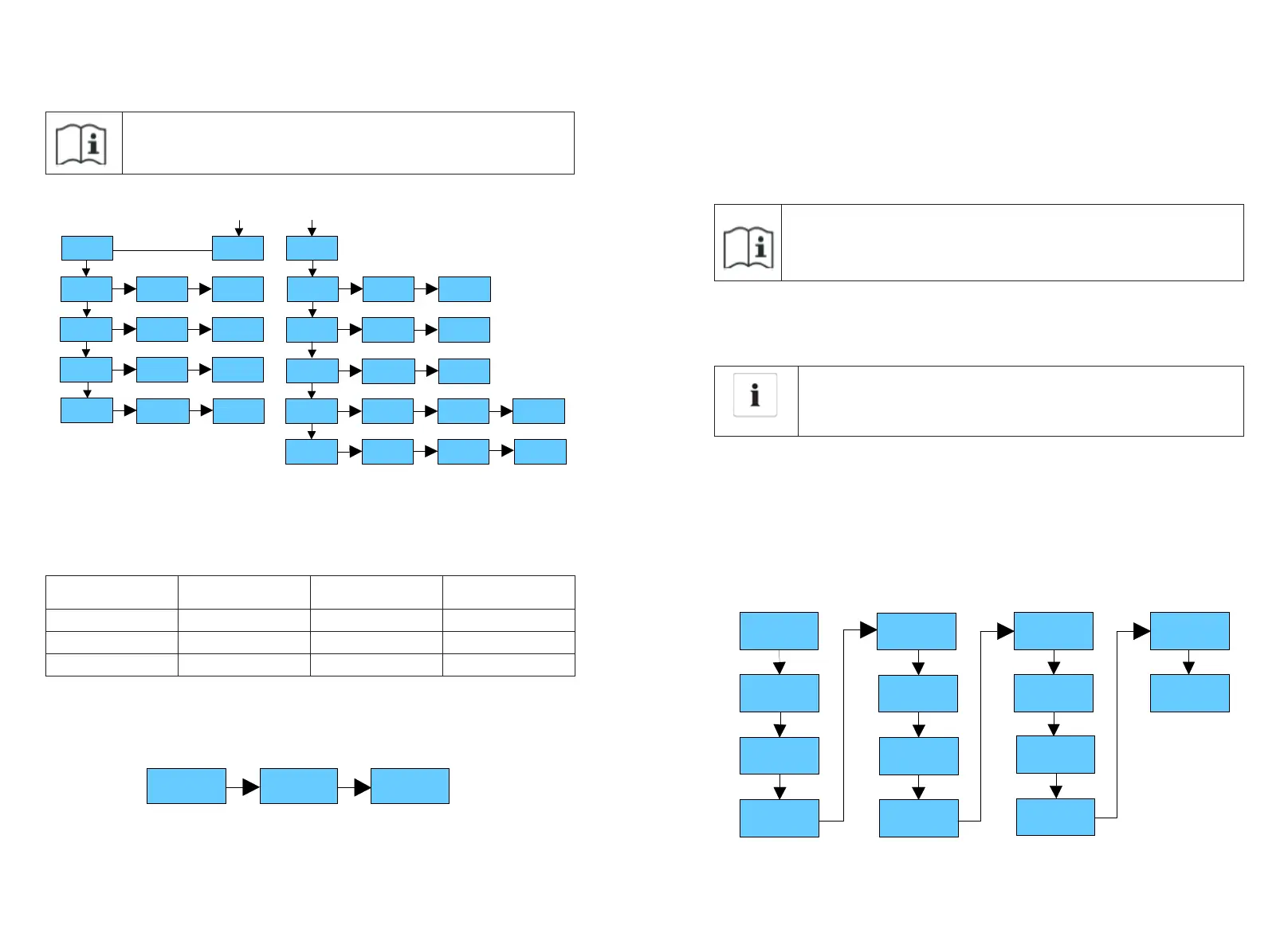

All setting interfaces are as follows:
9.3.2 Select the protection voltage level
9.3.1 Set country
Fig 9.2
Fig 9.3
The factory setting of the inverter is CQC standard regulations. Customers can choose
different voltage protection levels according to the actual situation; a single touch
switches the voltage level, and two consecutive touches confirm the setting.
Voltage level
0
1
2
Set
successfully
0 standard
1 Wide voltage level 2
2 Wide voltage level 3
The inverter can support multiple touch modes: single touch, two
consecutive touches, three consecutive touches, long press for 5S.
Different types of taps have different functions. Advanced setting
password: 123
Growatt can provide various regulations of the machine, after customers receive the
machine, according to their country, by setting icountry to set the corresponding
regulation. Following is the country model introduction.
Country/region /
regulations
Country/region /
regulations
When the inverter leaves the factory, the grid-connected voltage and frequency are set in
accordance with the latest domestic standard;
If the grid voltage is lower or higher than the domestic legal requirements, the inverter
cannot be connected to the grid. After obtaining the permission of the local power
operator, the user can choose other voltage levels according to the voltage situation of
the grid connection point.
Tips and disclaimers
Excessive grid voltage may affect the normal use and service life of home
appliances on the grid-connected side,or cause loss of power generation.
Our company does not accept any responsibility for the related impacts and
consequences caused by enabling the automatic control function of output
voltage to connect to the grid.
9.3.4 Check firmware version,Region,Country/Area and Power Quality Response
Modes (Australia model only)
Single touch to switch display.
Double touch to enter next stage menu.
Grid
XXXvXXXHz
Etotal
XXXXw
Etoday
XXXkWh
Power
XXXXw
More Info
Model:S03B00D
00T00P00U00M0
000
Set parameter
PV3
XXXvXXXXw
PV2
XXXvXXXXw
PV1
XXXvXXXXw
Double
touch
FW Ver:AM X.X
Country/Aera
Australia
Region:
A/B/C/NZ
Power quality:
Volt-Var
9.3.3 Enabling/Disabling Power Quality Response Modes(PQRM)
(Australia model only)
Information
PQRM setting
Ø When the Region setting is completed, the inverter will operate
under default mode different from region.
MIN TL-X contains five types Power Quality Response Modes：
Volt-Var,Volt-watt, Fixed PF, Reactive power, Power limit. If you want to change the
Power Quality Response Modes please refer to chapter 7.3.1.
To Next Page
