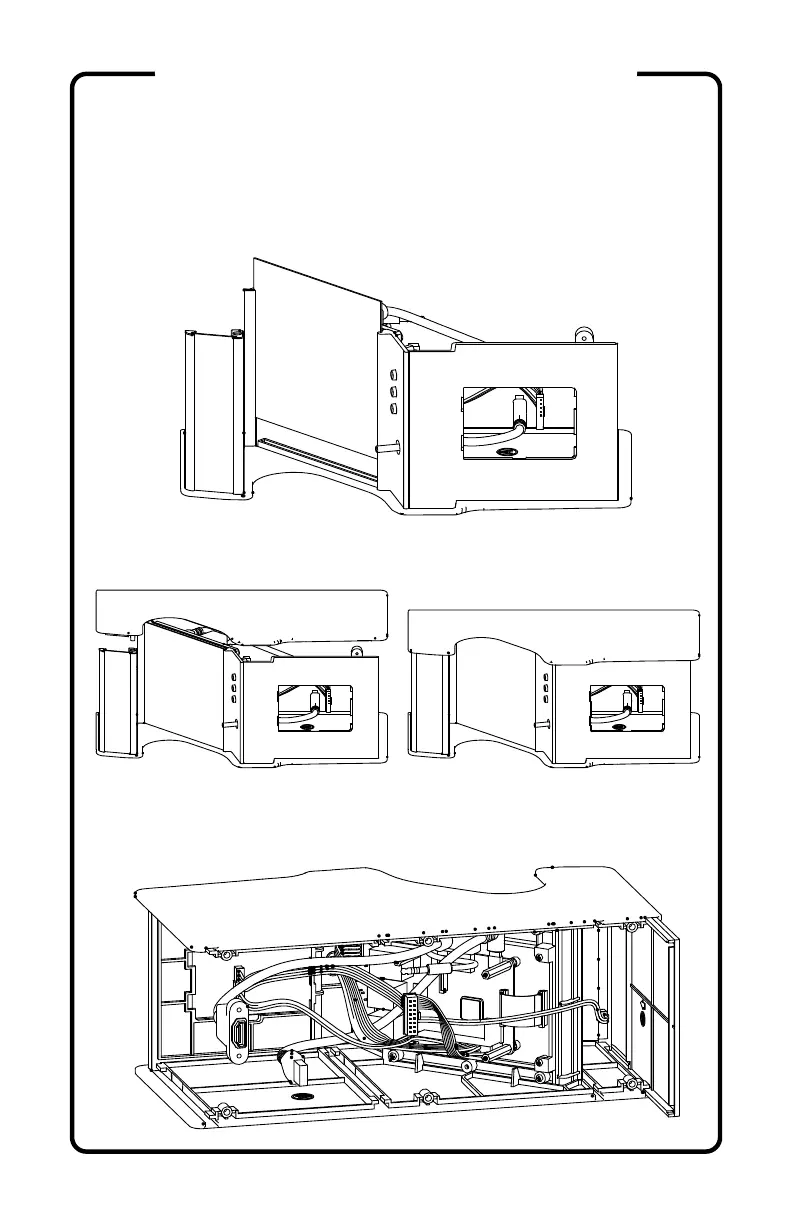

17) Remove the protective film from both sides of the

ACRYLIC BEZEL (P), then insert into the slots in the

CONTROL PANEL (B) and SCREEN BEZEL (F1) directly

in front of the screen.

18) Set the RIGHT SIDE (K) firmly on top of this

assembly, making sure all parts set into place.

19) Keeping this assembly on its side, align the TOP (H)

with its tracks, arrow facing front, and slide into place.

(continued)

ASSEMBLY INSTRUCTIONS
