GRS BUILD-A-CADE - Final Wiring and Back Panel Securement

17

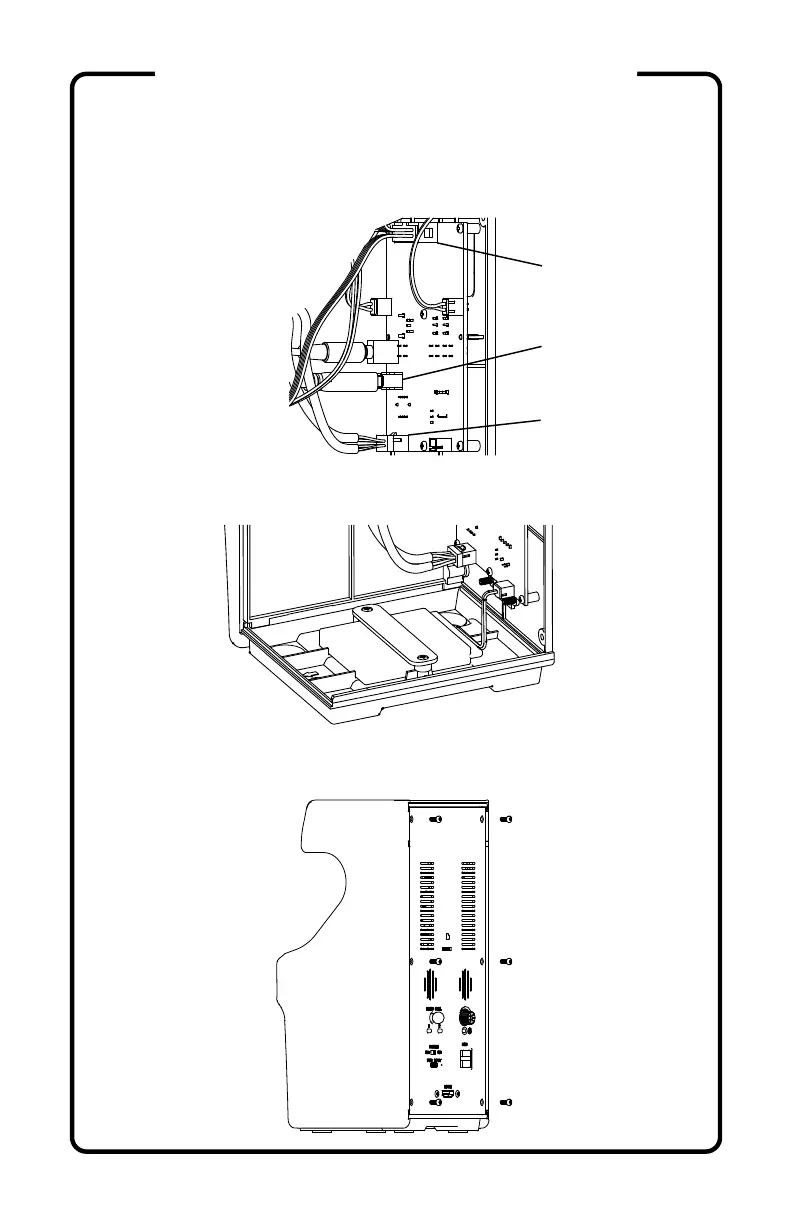

29) Plug the USB POWER CABLE (W2), main WIRING
HARNESS (W1) , and the USB EXTENSION (W4) into
the back panel circuit board.
30) With the main Power switch OFF, plug the BATTERY
into the circuit board.
31) Carefully arrange all wiring and secure the BACK
PANEL (L1) to the cabinet using 6 - M3x8mm screws
(S5).
Main wiring
harness
USB power
USB extension
(continued)
ASSEMBLY INSTRUCTIONS
