6.3 Changing the control box position
CAUTION
Hot surface
Minor or moderate personal injury
‐ Position the pump so that persons
cannot accidentally come into
contact with hot surfaces.
WARNING
Pressurized system
Minor or moderate personal injury
‐ Before dismantling the pump, drain
the system or close the isolating
valves on both sides of the pump.
The pumped liquid may be scalding
hot and under high pressure.
Make sure that the isolating valves are
closed before rotating the control box.
The pump must be pressureless before
the control box is rotated. Drain the
system or relieve the pressure inside
the pump housing.

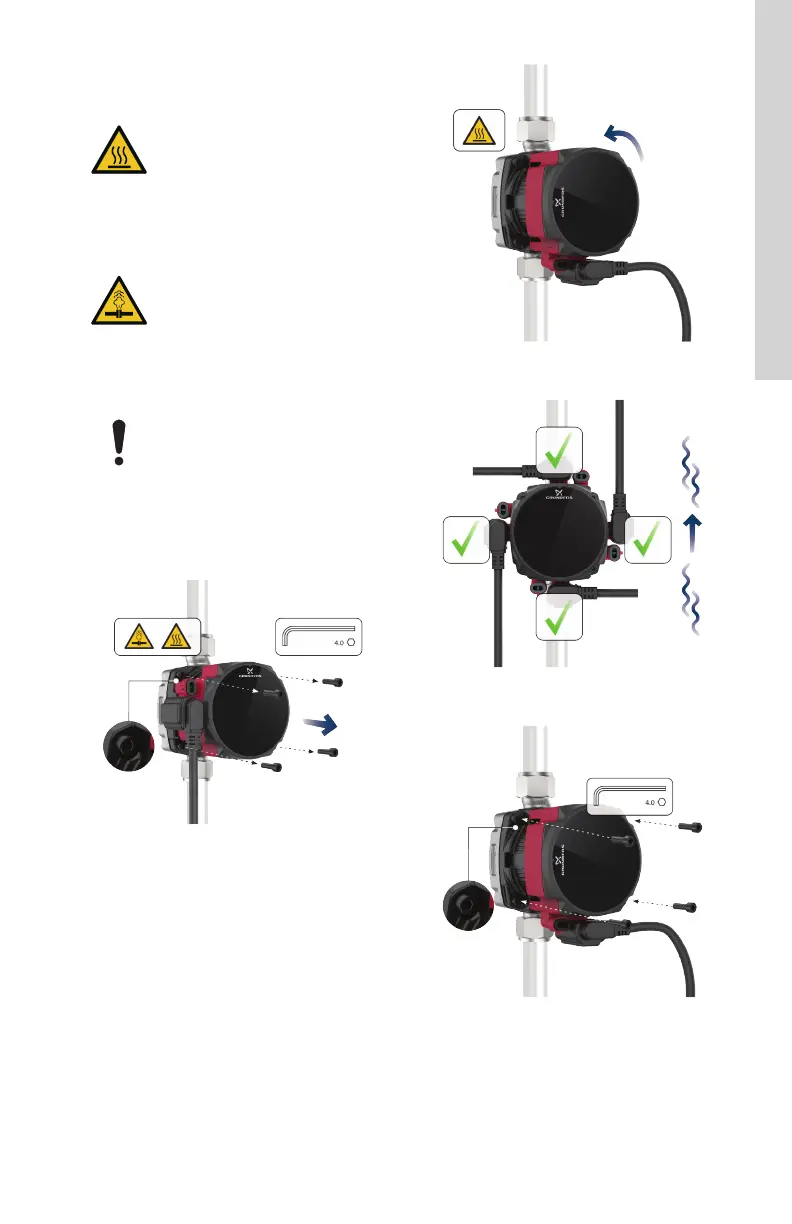

To change the position of the control box, do as
follows:
1. Loosen and remove the four screws.
TM085779
2.
Turn the pump head to the desired position.
TM085780
You can turn the control box in steps of 90°.
TM085782
3. Insert and cross-tighten the screws.
TM085781
