Grundfos CM 3 User Manual

Appendix
16

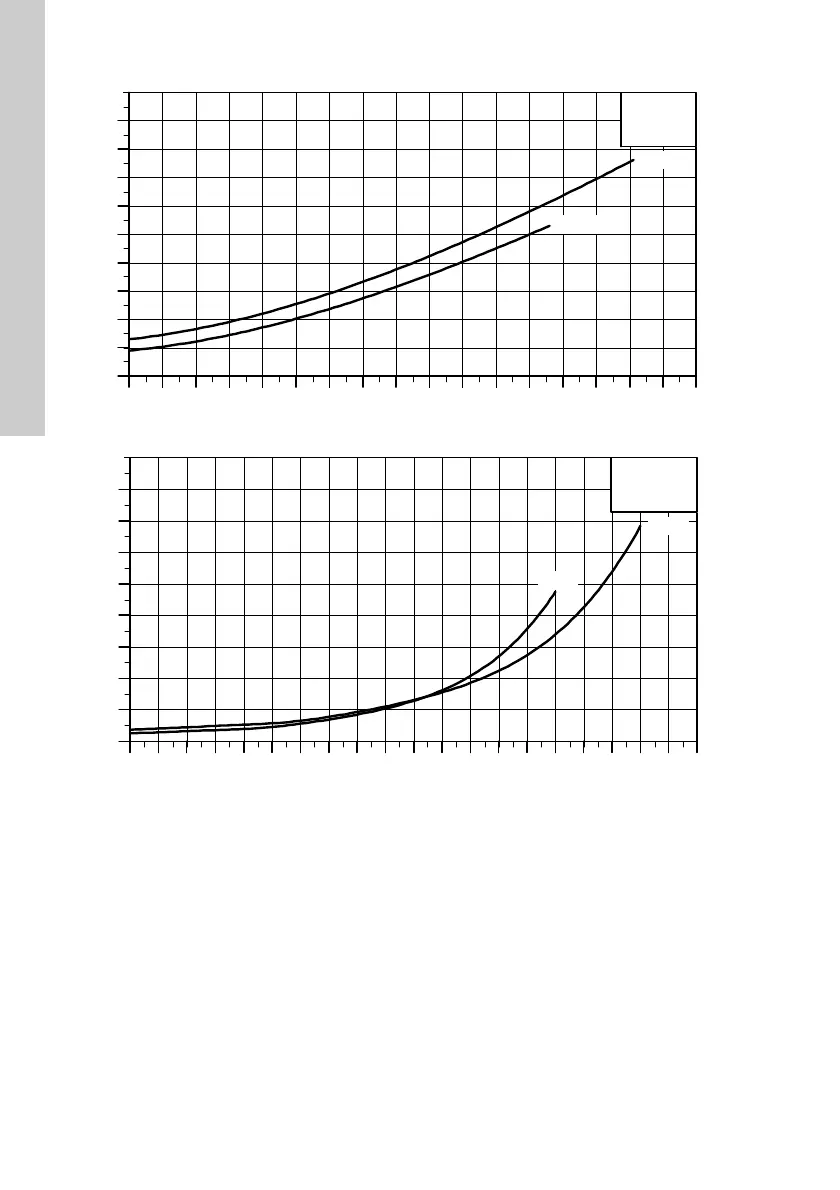

Fig. 6 NPSH curves for CM 10
TM04 0460 0309TM04 0461 0309
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 Q [m³/h]
0
1
2
3
4
5
6
7
8
9
[m]
NPSH
CM 5
60 Hz
50 Hz
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Q [m³/h]
0
2
4
6
8
10
12
14
16
[m]
NPSH
CM 10
60 Hz
50 Hz

Grundfos CM 3 Specifications

General

Maximum operating pressure	10 bar
Pump housing	Stainless steel
Frequency	50 Hz
Housing Material	Stainless steel
Connection Size	1 inch
Approvals	CE
Voltage	230 V
