Grundfos Conlift1 LS User Manual

English (GB)
3
1.2 Other important notes
2. Receiving the product
2.1 Transporting the product
3. Installing the product
If not already integrated, a water trap (emission trap)
must be fitted in all inlets.
The Conlift is not designed for outdoor use.
3.1 Mechanical installation
See also the quick guide supplied with the Conlift.
When installing the Conlift, observe the following:
• The condensate must run freely into the lifting
station.
• The cooling slots in the motor cover must not be
covered.
• The lifting station must be easily accessible in
order to facilitate maintenance.
• The lifting station must be installed in a
well-illuminated and -ventilated room.
3.2 Electrical installation
Carry out the electrical connection according to local
regulations.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
The power supply cable has a Schuko plug or a free
cable end. The cable has a length of 2 metres.
We recommend to provide the permanent installation
with an earth leakage circuit breaker (ELCB) with a
tripping current < 30 mA.

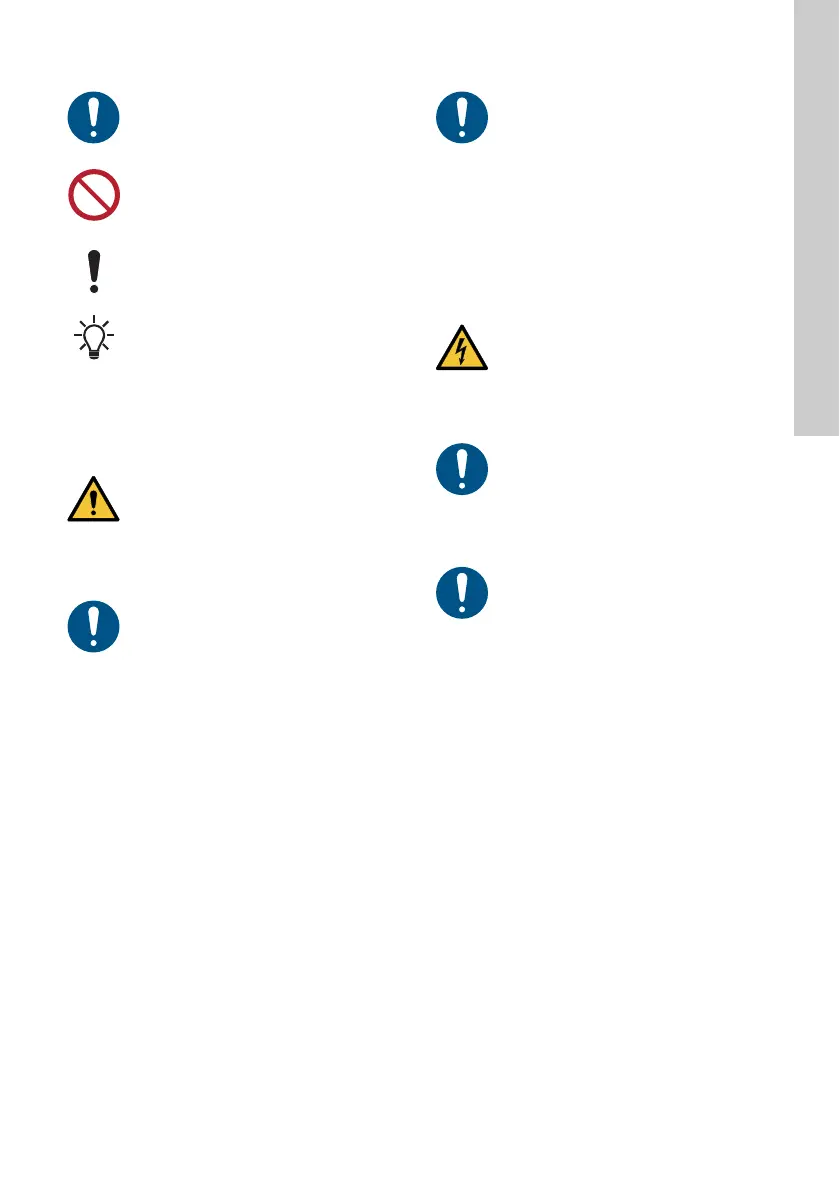

A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
WARNING
Harm of body
Death or serious personal injury
- Stack maximum two pallets together
under transportation.
Installation must be carried out by
specially trained persons and according to
local regulations.
Electrical connection must be carried out
by an authorized electrician.
WARNING
Electric shock
Death or serious personal injury
- Make sure that the protective earth from
the socket outlet is connected to the
protective earth in the pump.
Make sure that the plug has the same
PE connection system as the socket
outlet or else use a suitable adapter.
The product must be connected to a main
switch with a minimum contact gap of 3
mm in all poles.
The electrical connection of a cable with a
free cable end must be carried out by an
authorised electrician.

Grundfos Conlift1 LS Specifications

General

Supply Voltage	230 V
Mains Frequency	50 Hz
Protection Class	IP24
Type	Condensate removal pump
Max Liquid Temperature	50°C
Housing Material	Plastic
Power Supply	230 V
Pumped Liquids	Condensate water
Outlet Connection	Multiple stepped hose connectors
