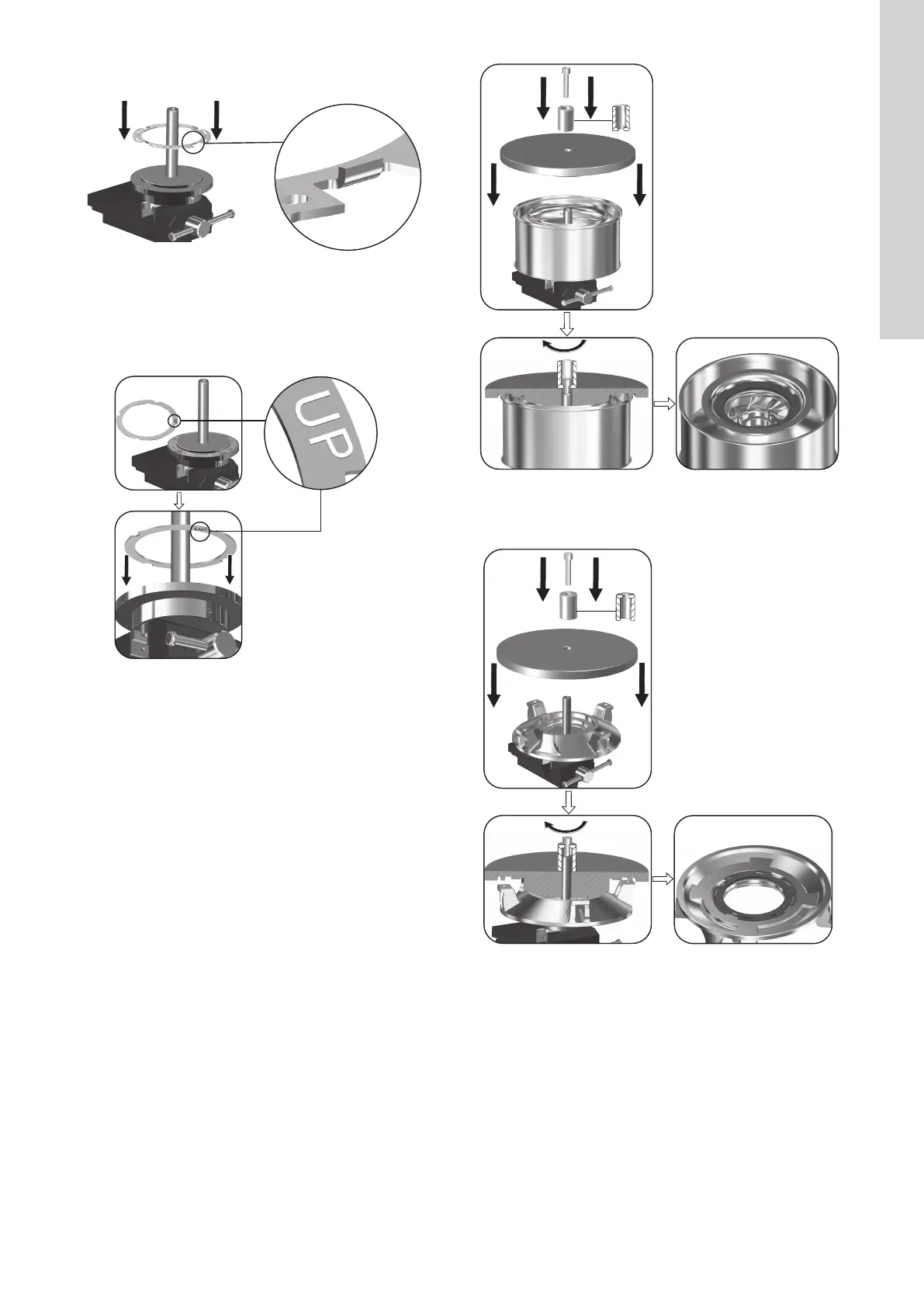

3. Place the neck-ring retainer (65) on top of the disc with the
driving dogs upwards. See the figure below.
TM071783
Neck-ring retainer (65) placed in service tool with the driving dogs
pointing upwards
4. Place the neck ring (45) on top of the neck-ring retainer (65).
Note that the text "UP" which is stamped into the neck ring (45)
must point down towards the neck ring (65). See the figure
below.
TM071784
Placing neck ring (45) with the text "UP" pointing down towards
the neck-ring retainer (65)
5. Place the chamber (4 or 4a) or inlet part (44) over the neck ring
(45) and neck-ring retainer (65). See fig. 'Neck ring, neck-ring
retainer and chamber positioned in service tool L' and 'Neck
ring, neck-ring retainer and inlet part positioned in service
tool L'.
6. Place the top plate of service tool L on top of the chamber or
inlet part and align it so it fits. See fig. 'Neck ring, neck-ring
retainer and chamber positioned in service tool L' and 'Neck
ring, neck-ring retainer and inlet part positioned in service
tool L'.
7. Fit the distance piece and screw on the top plate of service tool
L. See fig. 'Neck ring, neck-ring retainer and chamber positioned
in service tool L' and 'Neck ring, neck-ring retainer and inlet part
positioned in service tool L'.
8. Tighten the screw to 20 Nm.
TM071785
Neck ring, neck-ring retainer and chamber positioned in service
tool L
TM071897
Neck ring, neck-ring retainer and inlet part positioned in service
tool L
17
English (GB)
