3.1.4 Vibration dampening
Elimination of noise and vibrations is best achieved
by means of a concrete foundation, vibration
dampers and expansion joints.
If you use vibration dampers, install them under the
foundation. For pumps with motor size below or
equal to 30 kW, you can use vibration dampers as
shown in fig. 21.
For pumps with motor size equal to 37 kW or above,
you can use a Sylomer
®
plate as shown in fig. 22.

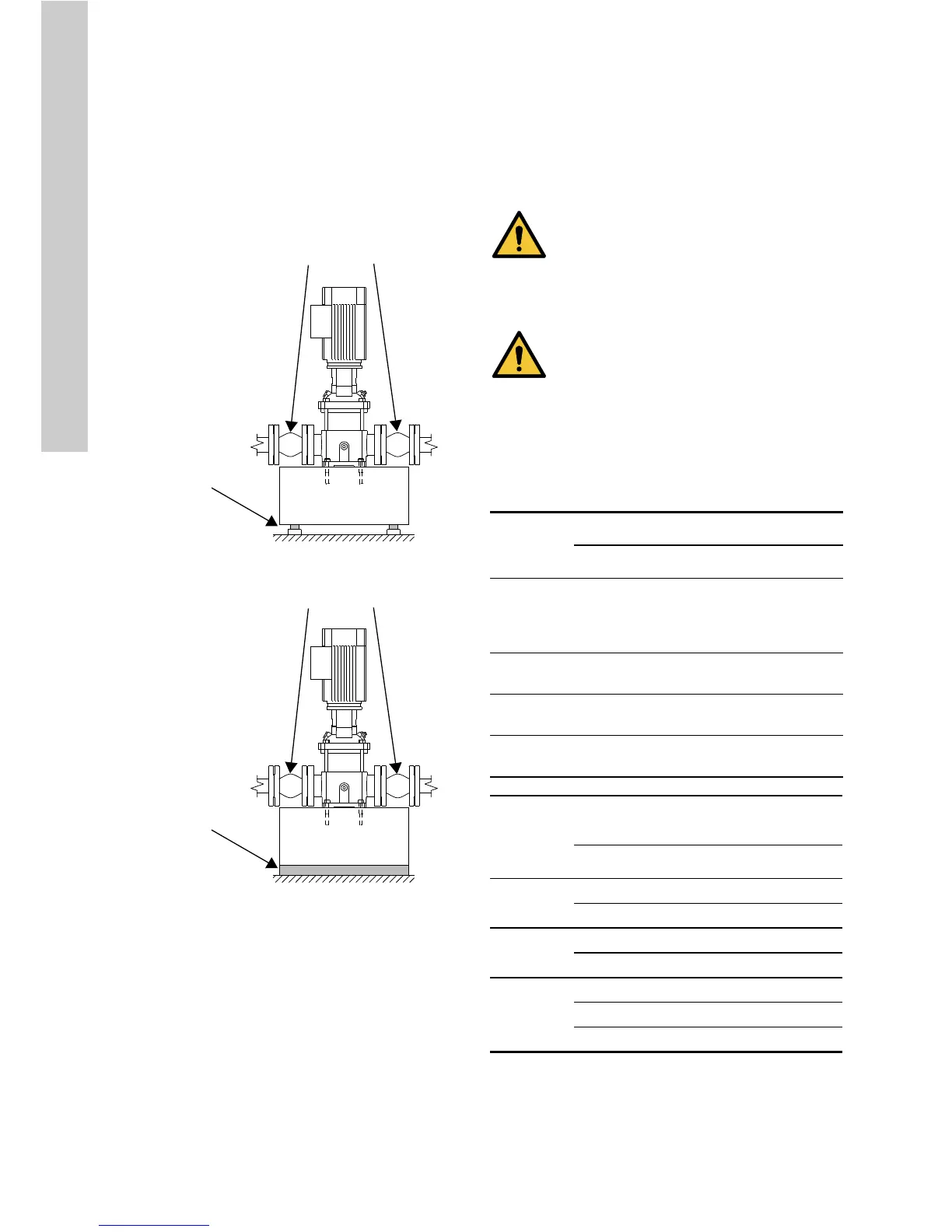

Fig. 21 Pump on vibration dampers
Fig. 22 Pump on Sylomer
®
plate
3.1.5 Outdoor installation
When the pump is installed outdoors, we recommend
that you provide the motor with a rain cover. We also
recommend that you open one of the drain holes in
the motor flange.
3.1.6 Tightening torques
The tables show the recommended torques for base
plate anchor bolts and flange bolts.
The bolt quality must be minimum class 5.8 except
for CR, CRN 95 with optional small base plate which
must be minimum class 8.8.
TM06 7999 4316TM06 8000 4316
Expansion joints
Vibration dampers
Sylomer
®
plate
Expansion joints
WARNING
Flange gasket blowout
Death or serious personal injury
- Tighten flange bolts according to the
specified torque values.
WARNING
Falling objects
Death or serious personal injury
- Tighten the base plate anchor bolts
according to the specified torque
values.
CR, CRN
Base plate anchor bolts
Bolt size Torque [Nm]
95 with
optional
small base
plate
M12
(∅14 free hole)
65
95
M16
(∅18 free hole)
100
125-155
M20
(∅22 free hole)
190
185-255
M24
(∅26 free hole)
130
CR, CRN
Flange bolts
(DIN/EN, JIS, ANSI)
Bolt size Torque [Nm]
95
M16 30
M20 90
125-155
M20 90
M24 230
185-255
M20 90
M24 230
M27 300
