English (GB)
4
5. Identification
5.1 MTR 1s, 1, 3, 5, 8, 10, 15, 20, 32, 45 and
64
The nameplate on the pump head gives the following
details:
• Data for the standard pump
• data for the ATEX marking
– Technical file No
– Serial No
– Ex category.

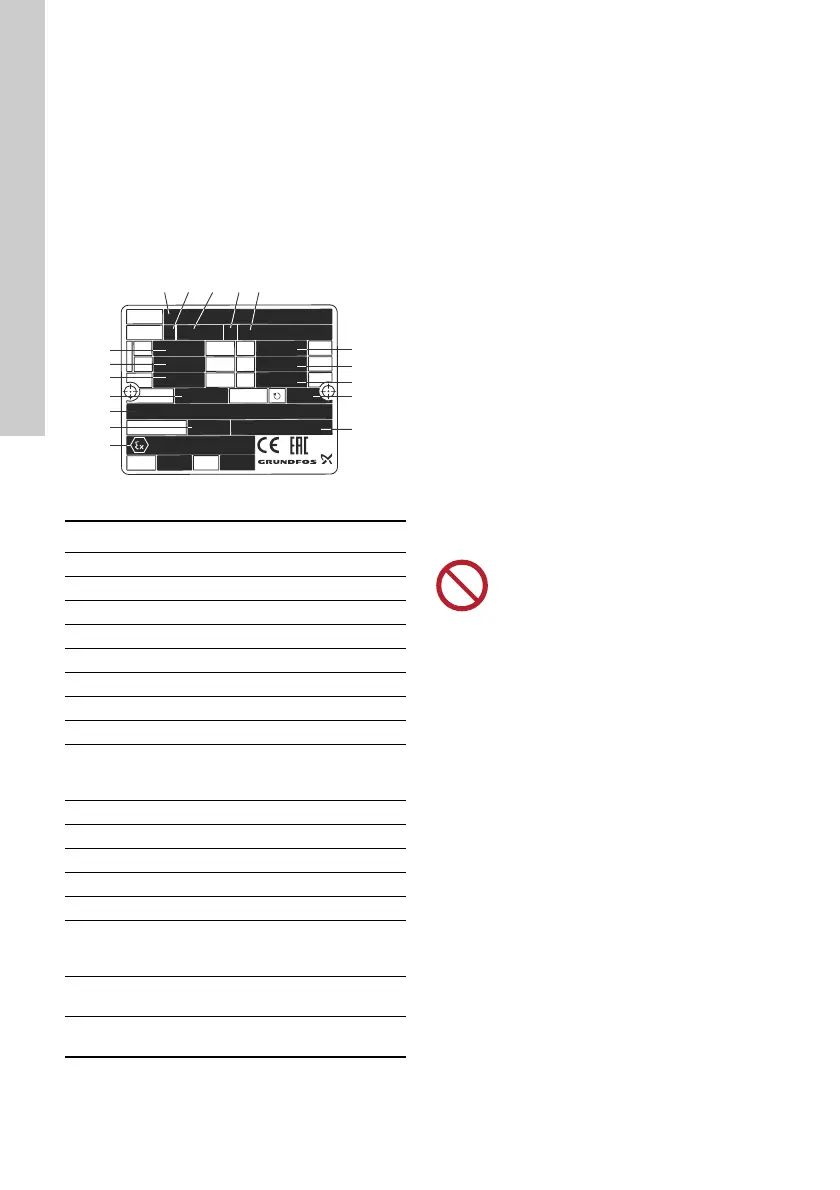

Fig. 1 Nameplate
6. Before starting an ATEX-approved
pump
This check list must be strictly observed:
1. Check that the ATEX rating of both the motor and
the pump corresponds to the specified category.
See section 4. Scope of ATEX categories for
MTR pumps.
If the motor and pump categories differ, the lower
rating is valid.
2. Check that the motor output power corresponds
to the required P
2
of the pump, which is stated on
the nameplate.
3. Check that the rubber parts of the pump are as
ordered, see nameplates.
4. Check the alignment of the chamber stack.
– Check that the shaft can rotate freely.
There must be no mechanical contact between
impeller and chamber.
5. Check that the pump has been filled with liquid.
The pump must never run dry.
6. Check the direction of rotation of the motor. See
the arrow on the coupling guards or the fan
cover.
7. Check that the liquid temperature never exceeds
the maximum liquid temperature (t
max
) stated on
the nameplate.
8. Avoid overheating of the pump.
Operation against a closed outlet valve may
cause overheating. Install a bypass with a
pressure-relief non-return valve.
9. The pump must be re-vented in the following
cases:
– The pump has been stopped for a period.
– Air has accumulated in the pump.
10. The pump must not be used for the transfer of
flammable liquids such as diesel oil and petrol.
11. Contact Grundfos if the pump is to be used for
pumping chemical solvents.
TM06 9763 3217
Pos. Description
1 Type designation
2 Model
3 Product number
4 Place of production
5 Production code, year and week
6P
2
7 Closed valve head
8 Head at rated flow rate
9
Direction of rotation
CCW: Counterclockwise
CW: Clockwise
10 Country of production
11 Frequency
12 Speed
13 Rated flow rate
14 Maximum pressure and temperature
15
The number of the copy of the technical file
kept at DEKRA (stated if the pump is ATEX
classified)
16
The serial number of the pump (stated if
the pump is ATEX classified)
17
ATEX category (stated if the pump is ATEX
classified)
Type
Model
f
n
Q
Hz
min
-1
m
3
/h
P2
H
max
H
kW
m
m
pmax/tmax
bar/°C
Technical file no. XXXXXXXX X
Serial No.
Made in Taiwan
II 3 G Ex h IIB 125°C Gc
MEI
DK - 8850 Bjerringbro, Denmark
ȘS
0.7
--.-
11
12
13
14
15
16
17
6
7
8
9
10
96547135
MTR3-4/4 A-W-A-HUUV
A 96515006 P1 0420
60
3500
3,6
0,55
38
27,1
CCW
25/90
000001
Do not operate the pump against a closed
outlet valve for more than 5 minutes.
