1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
2. Receiving the product
2.1 Lifting the product
When lifting the entire product with motor, follow
these instructions:
• Pump with motor sizes 0.37 - 5.5 kW:
Lift the pump in the motor flange by means of
straps or the like.
• Pump with motor sizes 7.5 - 22 kW:
Lift the pump by means of the motor eyebolts.
• Pump with motor sizes 30-45 kW:
Lift the pump by means of the lifting brackets on
the motor flange.

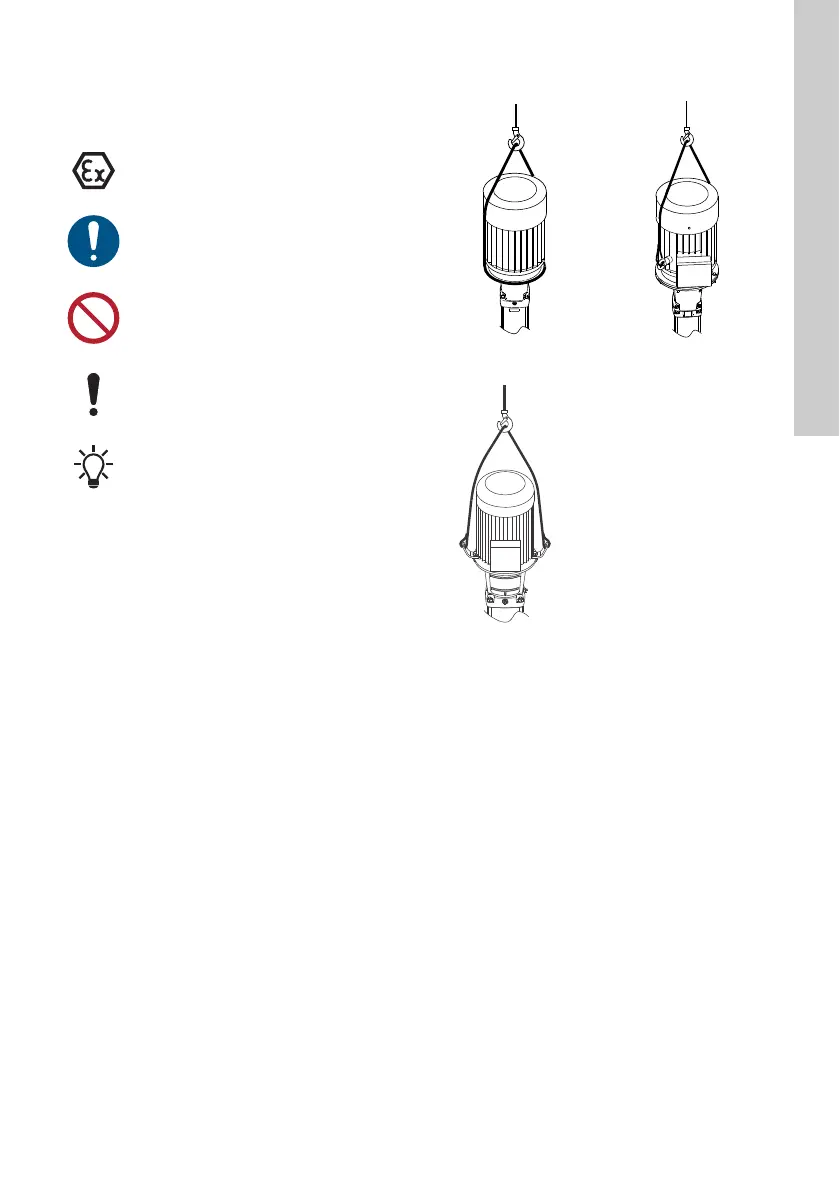

Fig. 1 Lifting points
In case of pumps with other motors than MG or
Siemens, we recommend that you lift the pump by
means of the straps in the motor flange.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
0.37 - 5.5 kW 7.5 - 22 kW
TM04 0339 0608
TM04 0341 0608
30-45 kW 55-75 kW
TM05 9564 4113
