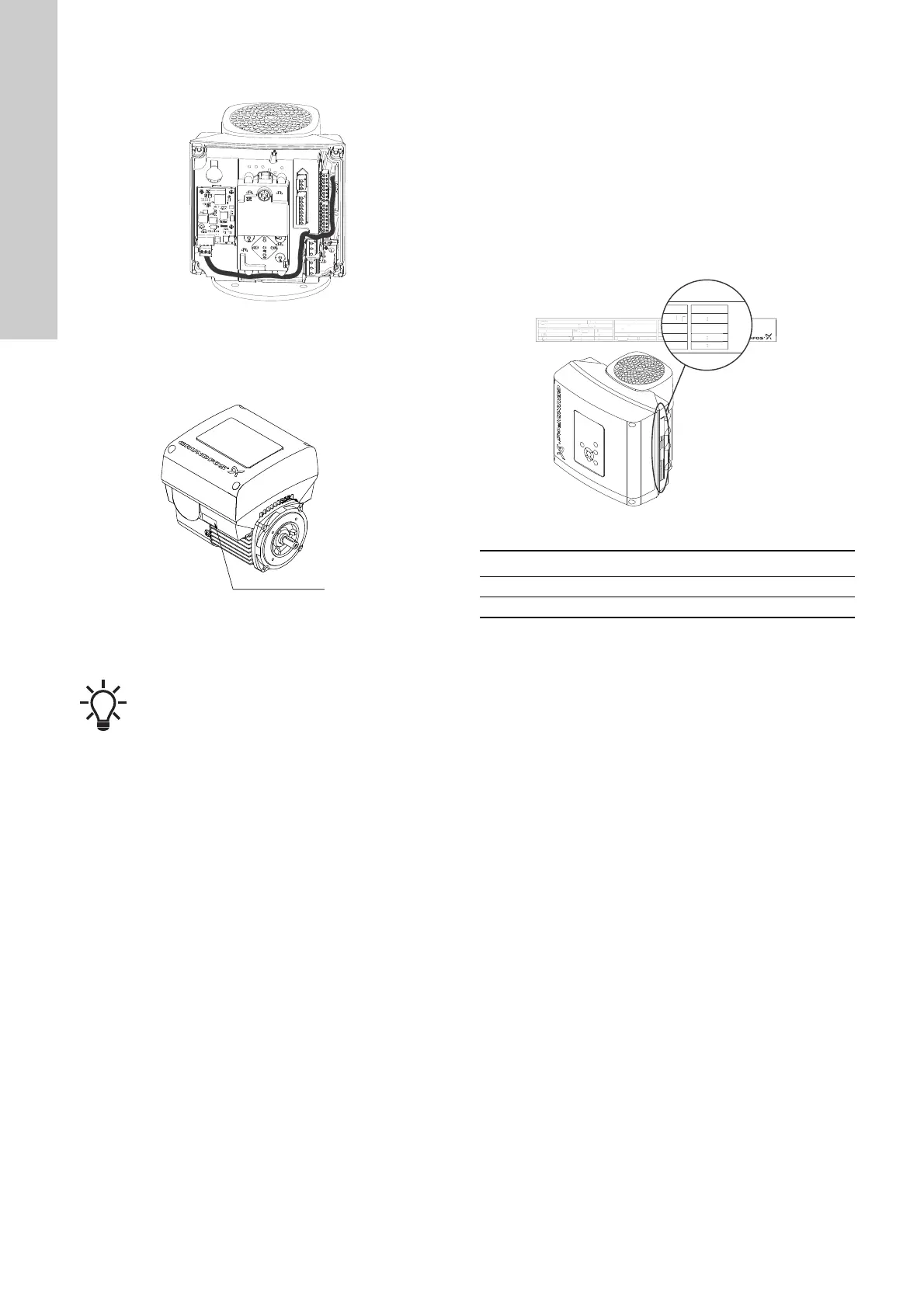

8. Route the wires for the CIM module. See the example in fig.
22.
Fig. 22 Example of wire routing
9. Fit the CIM cover.
10.If the CIM module is supplied with an FCC label, then place
the label on the terminal box. See fig. 23.
Fig. 23 FCC label
11. Fit the terminal box cover (fig. 17, B) and cross-tighten the
four mounting screws (fig. 17, A) to 6 Nm.
8. Identification of functional module
You can identify the fitted module in one of the following ways:
Grundfos GO
You can identify the functional module in the "Fitted modules"
menu under "Status".
Pump display
For pumps fitted with the advanced control panel, you can identify
the functional module in the Fitted modules menu under Status.
Motor nameplate
You can identify the fitted module on the motor nameplate. See
fig. 24.
Fig. 24 Identification of functional module
TM06 4085 1515TM05 7028 0413
Make sure that the terminal box cover is aligned with
the control panel.
FCC
TM06 1889 3314
Variant Description
FM 200 Standard functional module
FM 300 Advanced functional module
Env.Type :
Serial no :
SF CL:
PF:
PB
FM
HMIEff
n max:
CIMWgt
:
DE
:
kg
NDE
:
T
amb
:
:
FAA
V
~
P.C.
:
Made in Hungary
OUTPUT
VARIANT
INPUT
TEFC
Type
:
P.N.
:
