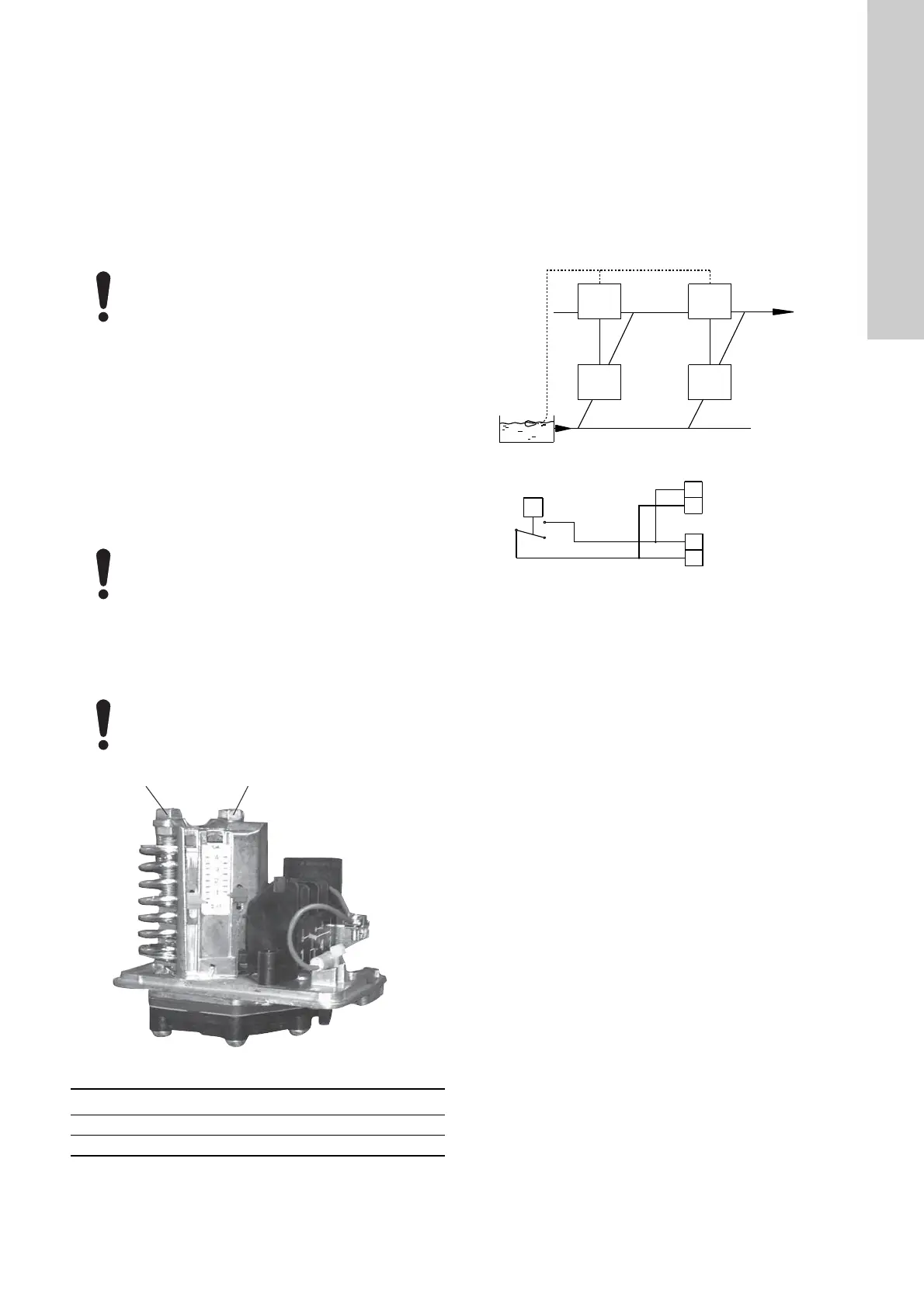

15. Protective functions
It is important that any protective function, for example
dry-running protection or external start/stop that is detected via a
digital input, is connected to and configured on all the pumps with
an outlet-pressure sensor.
If an additional sensor is used, for example the limit-exceeded
function or setpoint influence, this sensor must also be connected
to all pumps with an outlet-pressure sensor. Alternatively, an
additional sensor per pump with an outlet-pressure sensor can be
installed.
15.1 Dry-running protection
Types of dry-running protection:
a pressure switch or an inlet pressure sensor is factory-fitted
to the inlet manifold. See section 15.1.1 Pressure switch and
15.1.3 Inlet pressure sensor.
a level switch fitted in a water tank (optional). See section
15.1.2 Level switch.
15.1.1 Pressure switch
The Hydro Multi-E can be fitted with an adjustable pressure
switch as dry-running protection. The pressure switch is fitted to
the inlet manifold.
If necessary, adjust the lower switching point by turning screw A
and adjust the upper switching point to a value higher than the
lower switching point by turning screw B. See fig. 57.
Fig. 57 Adjustment of switching points
15.1.2 Level switch
If there is no inlet pressure, the system can be optionally fitted
with a level switch, either from factory or after delivery. The level
switch can for instance monitor the water level in a tank
connected to the inlet manifold and must be connected to
terminal 3 and 10 in all pumps. See section Advanced functional
module (FM 300).
Furthermore, the digital input must be configured with Grundfos
GO Remote to detect dry running.
The system starts up automatically if it has been stopped due to
dry running. It can be changed to manually restart with Grundfos
GO Remote.
Fig. 58 Level switch connected to each pump
15.1.3 Inlet pressure sensor
The Hydro Multi-E system can be fitted with one or two inlet
pressure sensors, either from factory or after delivery. The sensor
can monitor the pressure in the inlet manifold and must be
connected to one of the analog input. See section Advanced
functional module (FM 300).
The analog input must be configured with Grundfos GO Remote.
Configure one of the limit exceed functions to detect dry running.
From factory the system has been set to start automatically if it
has been stopped due to dry running. It can be changed to
manually restart with Grundfos GO Remote.
Hydro Multi-E must be protected against dry running.
If the inlet pressure is below the lower switching
point, the system cannot start.
If the pressure switch has stopped the system during
operation due to the inlet pressure being too low, the
inlet pressure must increase to a pressure that is
higher than the setting of the upper switching point
before the system can restart.
Do not set the lower switching point to a value below
the minimum inlet pressure. See section
27.5 Minimum inlet pressure.
TM05 8436 2313
Pos. Description
A Low pressure SP
B High pressure SP
A B
TM06 5328 111
L S
3
10
3
10
Pump
1
Pump
2
3:GND (frame)
10: Digital input
3:GND (frame)
10: Digital input
