English (GB)
5

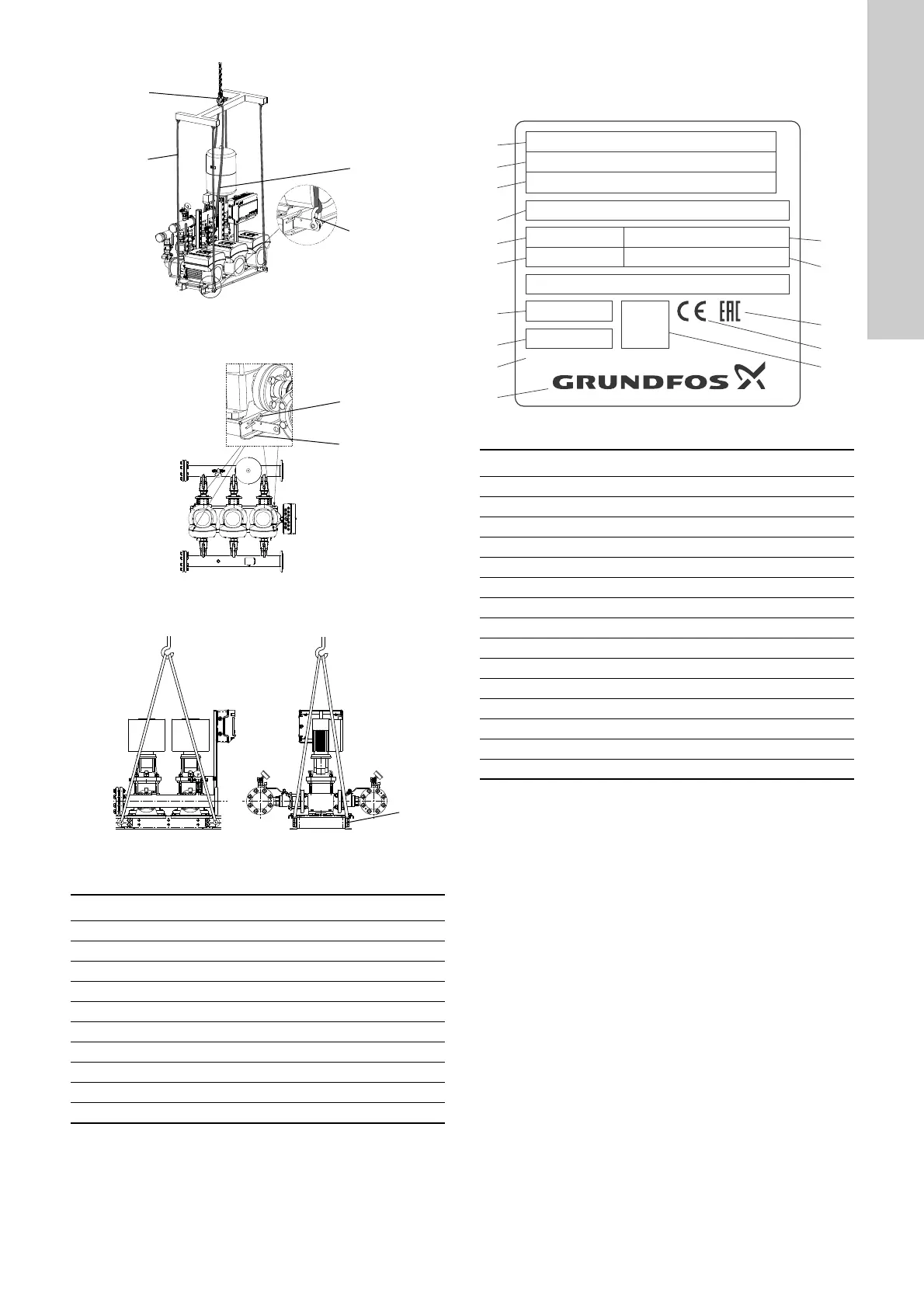

Fig. 4 Lifting gear that ensures a vertical lift for Hydro Multi-E
with CME
Fig. 5 Position of lifting brackets for Hydro Multi-E CRE and
CME
Fig. 6 Lifting a Hydro Multi-E system with a C-profile base
correctly in brackets
4. Identification
4.1 Nameplate
Fig. 7 Hydro Multi-E nameplate
TM07 4817 2719TM07 4818 2719
TM07 4819 2719
Pos. Description
1 Wooden beam (included)
2 Wooden screws (included)
3Fork lift
4 Lifting strap
5 Safety strap
6Shackles
7 Lifting gear
8 Split pin (included)
9 Lifting brackets (included)
10 Bolted C-profile base frame
7
4
6
5
9
8
10
TM06 7460 3516
Pos. Description
1 Type designation
2 Model
3 Serial number
4 Supply voltage
5 Maximum operating pressure in bar
6 Liquid temperature
7 Enclosure class
8 Weight in kg
9 Country of origin
10 Company logo
11 Maximum flow rate in m
3
/h
12 Nominal head in metres
13 Approval mark
14 Approval mark
15 QR code
MADE IN GERMANY
DK - 8850 - Bjerringbro - Denmark
QR
code
IP Class: IP54
Weight: 83kg
Liq. temp.: 5-60ºC
pMax: 16 bar
Q Nom / Max: 14 / 20 m /h
H Nom / Max: 68 / 93 m
3
Mains supply: 3 x 380 - 415
Serial No.: -
Model: 98486745
Type: Hydro Multi-E 2 CRIE 5-9 U2 A-A-A-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
