English (GB)
4
3. Receiving the product
3.1 Transporting the product
Depending on the size, the booster system is supplied in a
wooden cage, closed wooden box, wrapped on a pallet or
cardboard box designed for transport by forklift truck or similar
vehicle.
3.2 Inspecting the product
Before installing the product, check the following:
• The booster system corresponds to the order.
• All visible parts are intact.
3.3 Scope of delivery
The box contains the following:
• 1 Hydro Multi-E system
• installation and operating instructions for Hydro Multi-E
• quick guide for Hydro Multi-E
• installation and operating instructions for CRE, CRIE, CRNE,
SPKE, MTRE, CME.
3.4 Handling and lifting the product
Hydro Multi-E with CRE or CME with a base frame made of bent
steel plate has lifting brackets fitted on the base frame. See fig. 5.
Hydro Multi-E with CRE with a C-profile base frame has eyebolts
for lifting the system. See fig. 6.
• Use lifting gear that ensures a vertical lift. See fig. 3.
• Use a safety strap around one of the pump motors to prevent
the system from tilting. See fig. 3.
For systems with lifting brackets, you can remove these from the
base frame after installation. See fig. 5.

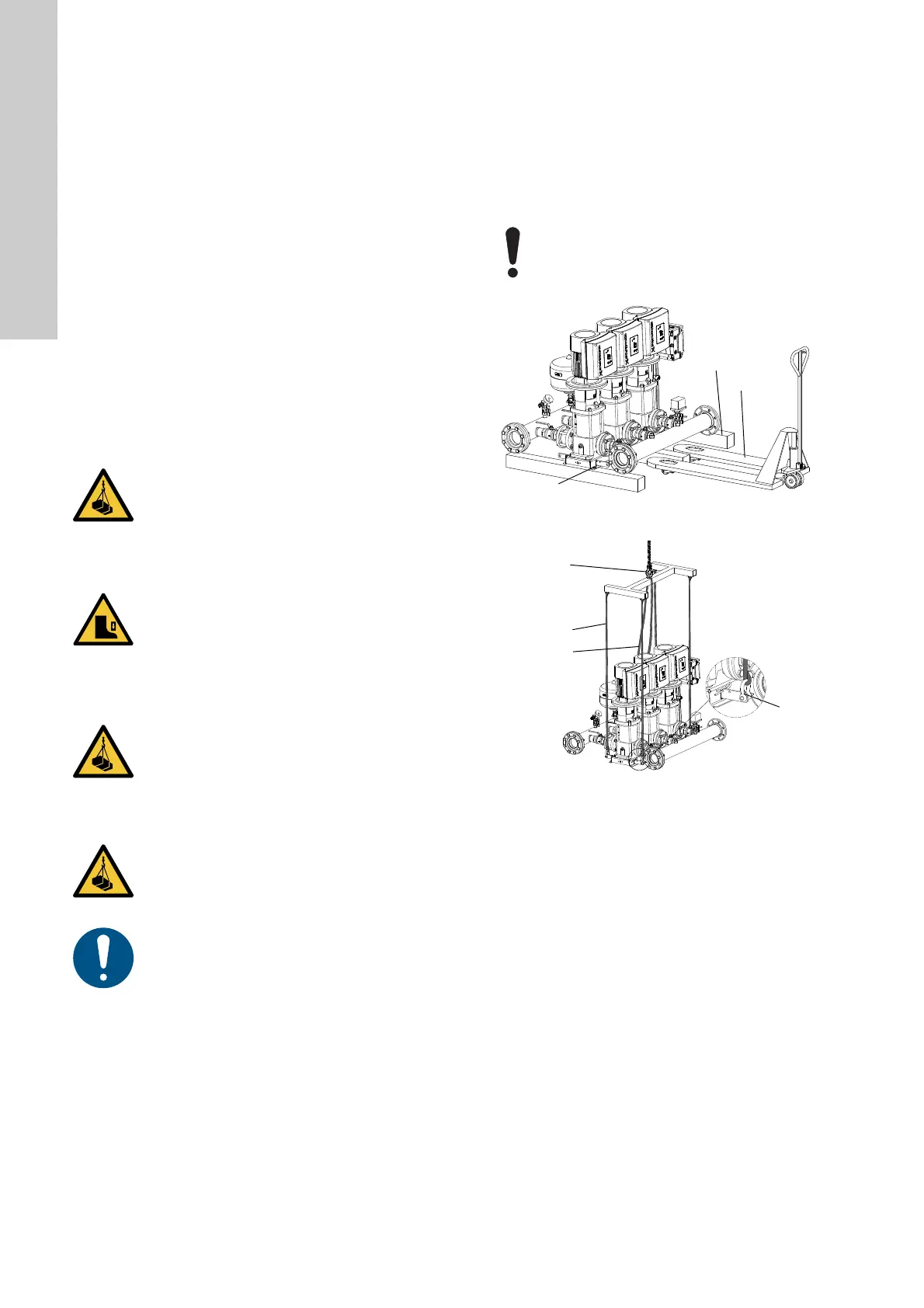

Fig. 2 Lifting a Hydro Multi-E system correctly with a fork lift
Fig. 3 Lifting gear that ensures a vertical lift for Hydro Multi-E
system with a bent base frame
DANGER
Overhead load
Death or serious personal injury
- When lifting the booster system, do not use the
eyebolts of the motors.
- Do not lift the booster system by the manifolds.
- Do not stand on the manifolds.
WARNING
Crushing of feet
Death or serious personal injury
- Use the supplied wooden beams delivered to
support the system when mounting machine
shoes.
WARNING
Overhead load
Death or serious personal injury
- Use safety equipment when mounting the base
frame.
- Restrict access to the area.
- Installation must be carried out by trained
personnel.
CAUTION
Overhead load
Minor or moderate personal injury
- Use appropriate lifting equipment when placing the
system.
When lifting the product, the lifting point must always
be above the centre of gravity to ensure stability.
Do not stand on the manifolds.
TM07 4815 2719TM07 48165 2719
1
3
2
7
4
6
5
