Appendix 1
Dimensions and weights

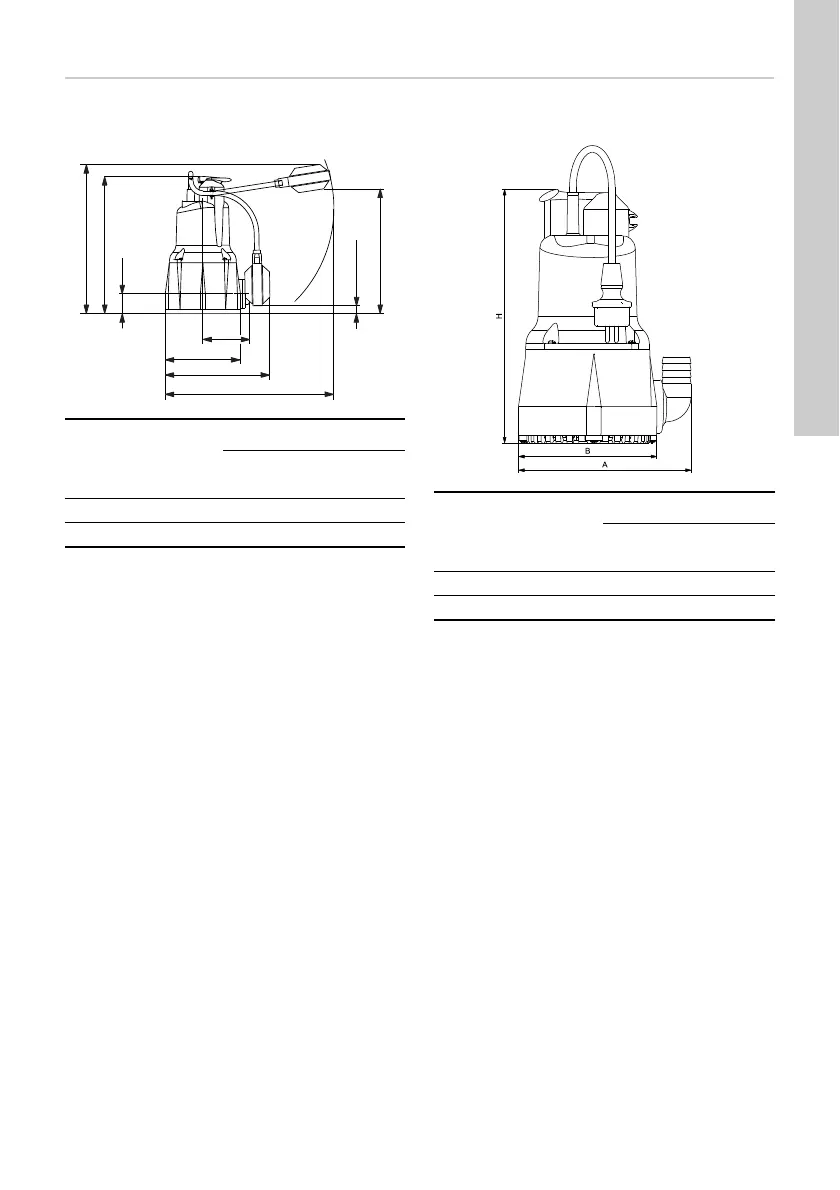

KPC 300 A, KPC 600 A
Dimensions of KPC 300 A and 600 A
KPC 24/7 210 and 270
Dimensions of KPC 24/7 210 and 270
TM02 8466 1713
Pump type
Weight
[kg]
Dimensions [mm]
Height
H
Width
B
Width
E
KPC 300 A 4.6 275 140 82
KPC 600 A 6.7 376 160 90
H1
H
H2
E
B
A
D
Stop
Start
TM06 3861 1015
Pump type
Weight
[kg]
Dimensions [mm]
Height
H
Width
B
Width
A
KPC 24/7 210 4.5 266 140 185
KPC 24/7 270 4.6 275 140 185
