Grundfos MS 4000 R - Technical Data: Dimensions and Weights; MS 402 Drawings and Weights

26
MS Motors
Technical Data

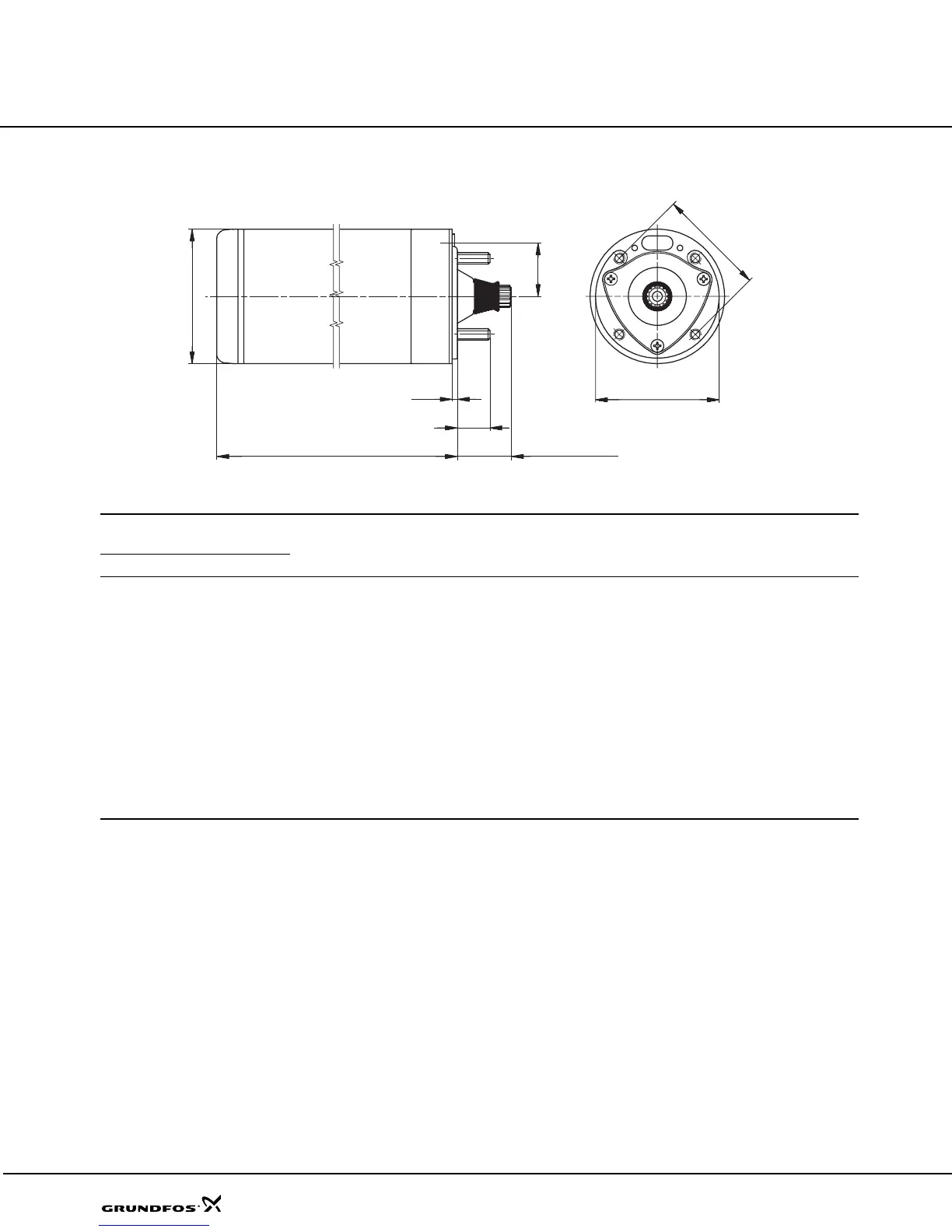

Outline Drawing MS 402
Dimensions and Weights MS 402
TM03 0645 0405
A
1.50 +.005/-.003
.14
1.48
3.74
.90
3.0
3.43
Output
Phases
Frequency
[Hz]
A-Dimension
[in]
Net Weight
[lbs]
Gross Weight
[lbs]
Shipping
Volume 
[f
3
]
Standard motors
P
2
[HP] P
2
[kW]
.33 .25 1 60 10.2 14.9 17.4 .0953
.50 .37 1 60 11.0 14.9 17.4 .1017
.75 .55 1 50/60 11.6 18.0 19.8 .1062
1.0 .75 1 50/60 12.2 19.6 22.9 .1112
1.5 1.1 1 50/60 13.7 23.1 26.4 .1239
2.0 1.5 1 50/60 13.7 24.2 27.6 .1239
.50 .37 3 50/60 9.0 12.1 14.3 .0858
.75 .55 3 50/60 9.6 13.8 16.1 .0904
1.0 .75 3 50/60 11.0 18.0 19.4 .1017
1.5 1.1 3 50/60 12.2 19.6 22.9 .1112
2.0 1.5 3 50/60 13.7 23.1 26.4 .1239
3.0 2.2 3 50/60 13.7 24.2 29.5 .1239
