Grundfos MS 4000 R User Manual

44
Accessories
MS Motors

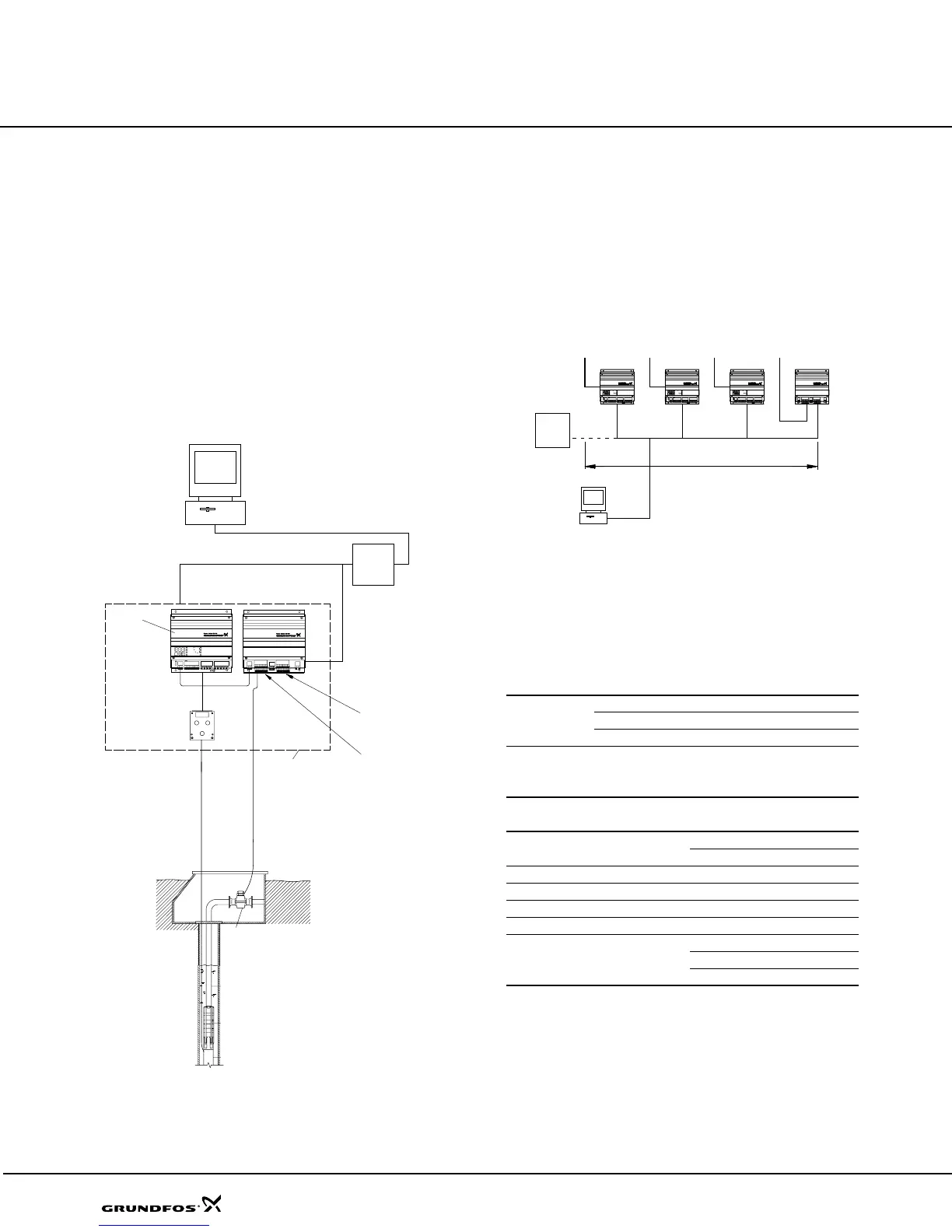

Complete Borehole Monitoring
System with CU 3 and SM 100
Monitoring parameters (Diodes)
• Power on
• Motor on
• Motor temperature
• Ground failure
• Overload/dry running
• Overvoltage/undervoltage
• Current unbalance
• Direction of rotation
Fig. 22
SM 100
The SM 100 sensor module can be connected to eight
analog sensors and have eight digital inputs for
sensors, e.g. monitoring of
- pH value
- conductivity
- O
2
- pressure
- etc.
Fig. 23
Maximum connection to the GENIbus:
• 28 CU 3 units, or
• 14 CU 3 units and 14 SM 100 units, or
• 27 CU 3 and 1 SM 100.
Product numbers
TM00 7979 1702
PC
CU 3
SM 100
RS-485
Communication
Module
Signal Converter
1-12 [A], 10-20 [A]
or single-turn trans-
formers 100-400 A
3 x 230 V, 60 Hz
3 x 460 V, 60 Hz
Connection to Pump.
No extra Cable required.
High-frequency Signals.
Inductive flowmeter
Water level
Riser Pipe
Submersible Pump
Submersible Motor with
Tempcon or Pt100
Ground level
Control Cabinet
For Analog Sensors
Digital inputs
Gateway
(not supplied with
the unit)
(not supplied with the unit)
TM00 7980 1702
Product number
CU 3 - 3 x 460 V
Current range for signal converter [A]
1-12 10-120 100-400
62500293 z
62500294 z
62500295 z
Product
CU 3 expansion possibilities
Range Product number
Sensor module SM 100 3 x 460 V 00626191
Communication module RS 485 - 00626159
Remote control R100 - 00625333
HP printer for R100 - 00620480
Signal converter
1-12 [A] 00620497
10-120 [A] 00620498
100-400 [A] 00626148
PC
CU3 CU3 CU3 SM100
GRUNDFOS-GENIbus
Protokoll-
umsetzer
(bauseits)
max. 1200 m
MS.book Page 44 Wednesday, January 26, 2005 3:25 PM
