Intended use
The SE1 and SEV pumps are designed for
transferring wastewater, process water and
unscreened raw sewage in heavy-duty municipal,
utility and industrial applications.
The pumps are available with S-tube
®
or SuperVortex
impellers allowing the free passage of solids up to
100 mm.
The pumps can be used in permanent, dry- or
submerged installations on auto-coupling systems.
The pumps are also suitable for free-standing
installations or as portable pumps.
Pumped liquids
The standard cast iron versions are designed for
pumping the following liquids:
large quantities of drainage, surface and storm
water
domestic wastewater with discharge from toilets
wastewater with a high content of fibres
(SuperVortex impeller)
industrial process water
wastewater with gaseous sludge
municipal and commercial sewage and
wastewater.
Stainless steel versions
The stainless steel versions are suitable for pumping
the following liquids:
industrial process water containing chemicals
aggressive or corrosive drain water and effluent
wastewater containing abrasives
seawater contaminated with wastewater.

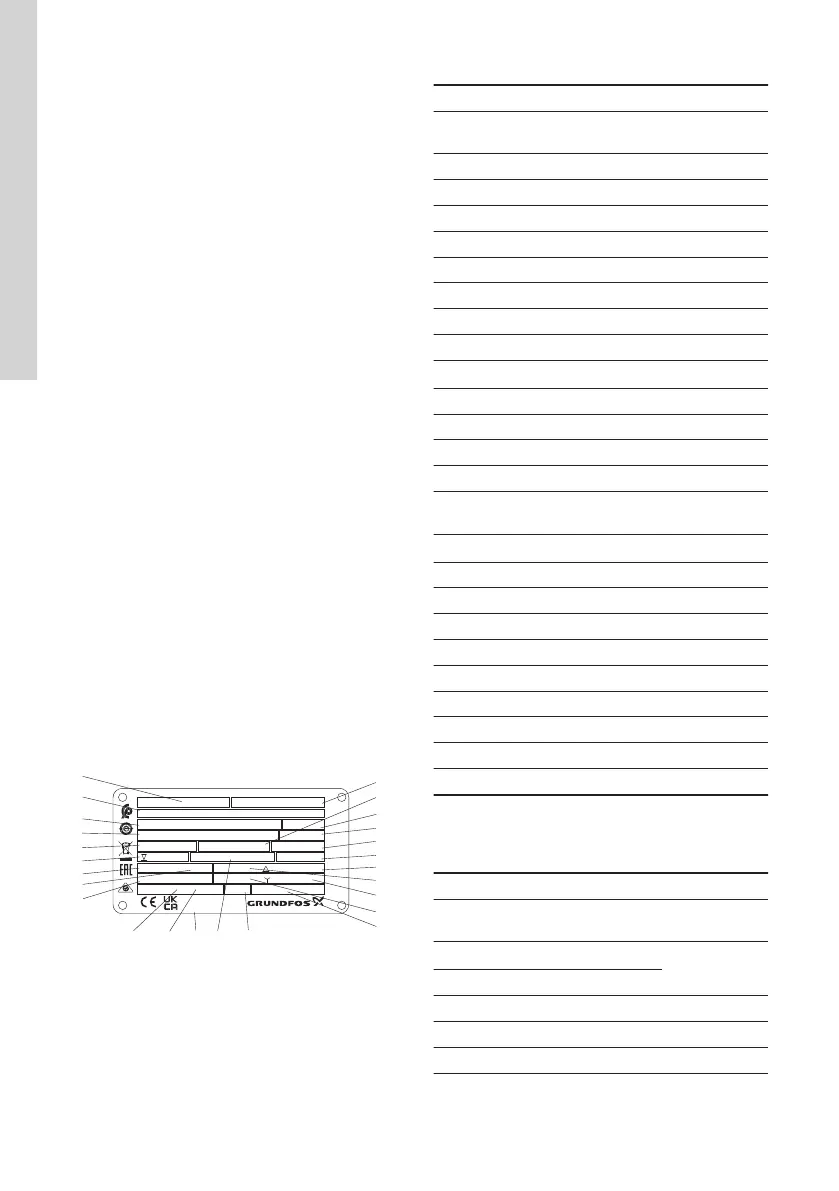

Nameplate
Fix the extra nameplate supplied with the pump at the
installation site or keep it in the cover of this booklet.
12 1311 19 6
2
1
3
4
5
7
8
9
10
18
17
16
15
20
21
22
23
24
25
14
Tmax: °C
Type:
P.c.
Hmax:
Qmax:
m
V
A
A
m h
/
3
V
Model:
m
Insul.class:
Cosφ :
Motor: Hz
0197
~
n:
min
-1
kgWeight: IP68P1/P2 / kW
U.K Importer: Grundfos Pumps ltd
Grovebury Road Leighton Buzzard
Bedfordshire LU74TL
DK-8850 Bjerringbro, Denmark
98948763
99657185Made in Tatabánya Hungary
For Converter Operation,
see manual
TM028398
Nameplate
Pos. Description
1
Notified body and explosion protection
classification
2 Explosion protection mark
3 Type designation
4 Product number
5 Maximum head [m]
6 Enclosure class
7 Maximum installation depth [m]
8 Number of phases
9 Frequency [Hz]
10
Speed [min
-1
]
11 Motor input power P1 [kW]
12 Motor output power P2 [kW]
13 Country of production
14 Explosion protection certificate number
15
Standard for wastewater lifting stations for
buildings and installation sites
16
Maximum flow rate [m
3
/h]
17 Production code (year/week)
18 Maximum liquid temperature [°C]
19 Insulation class
20 Power factor
21 Rated current [A], delta connection
22 Rated voltage [V], delta connection
23 Rated current [A], star connection
24 Rated voltage [V], star connection
25 Net weight [kg]
Type key
Example: SE1.80.80.40.A.Ex.4.51D.B
Code
Explanation Designation
SE
Sewage and wastewater
pump
Pump type
1
S-tube
®
impeller
Impeller type
V SuperVortex impeller
80 Maximum solids size [mm] Pump passage
80 Nominal diameter [mm] Pump outlet
40 Output power P2/10 Power [kW]
6
English (GB)
