Grundfos SP 77 - Cable Sizing Diagrams

Appendix
20
TM00 1347 5092

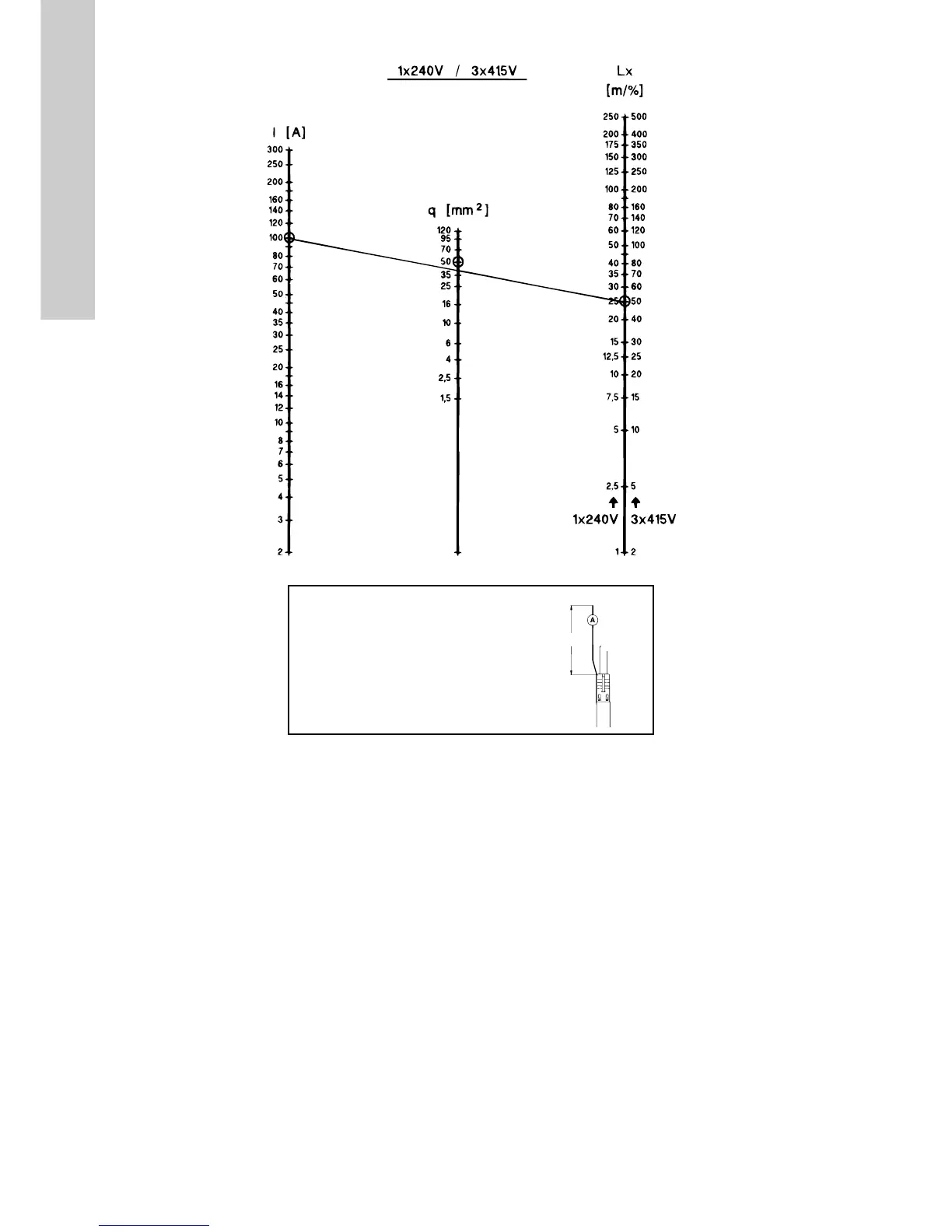

Example:
U = 3 x 415 V
I= 100 A
L = 150 m
U= 3 %
Lx
L
U
--------
150
3 %
---------- 50 m q 50 mm
2
== = =
I = 100 A
U = 3
%
U = 3 x 415 V
L = 150 m
