Grundfos UPMO Series - Performance Range; Performance Curves

6. Performance range
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6
Q [m³/h]
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
[m]
H
0
10
20
30
40
50
60
70
80
[kPa]
p
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Q [l/s]
UPM3
UPM3S
UPM3L
UPMO
TM072400

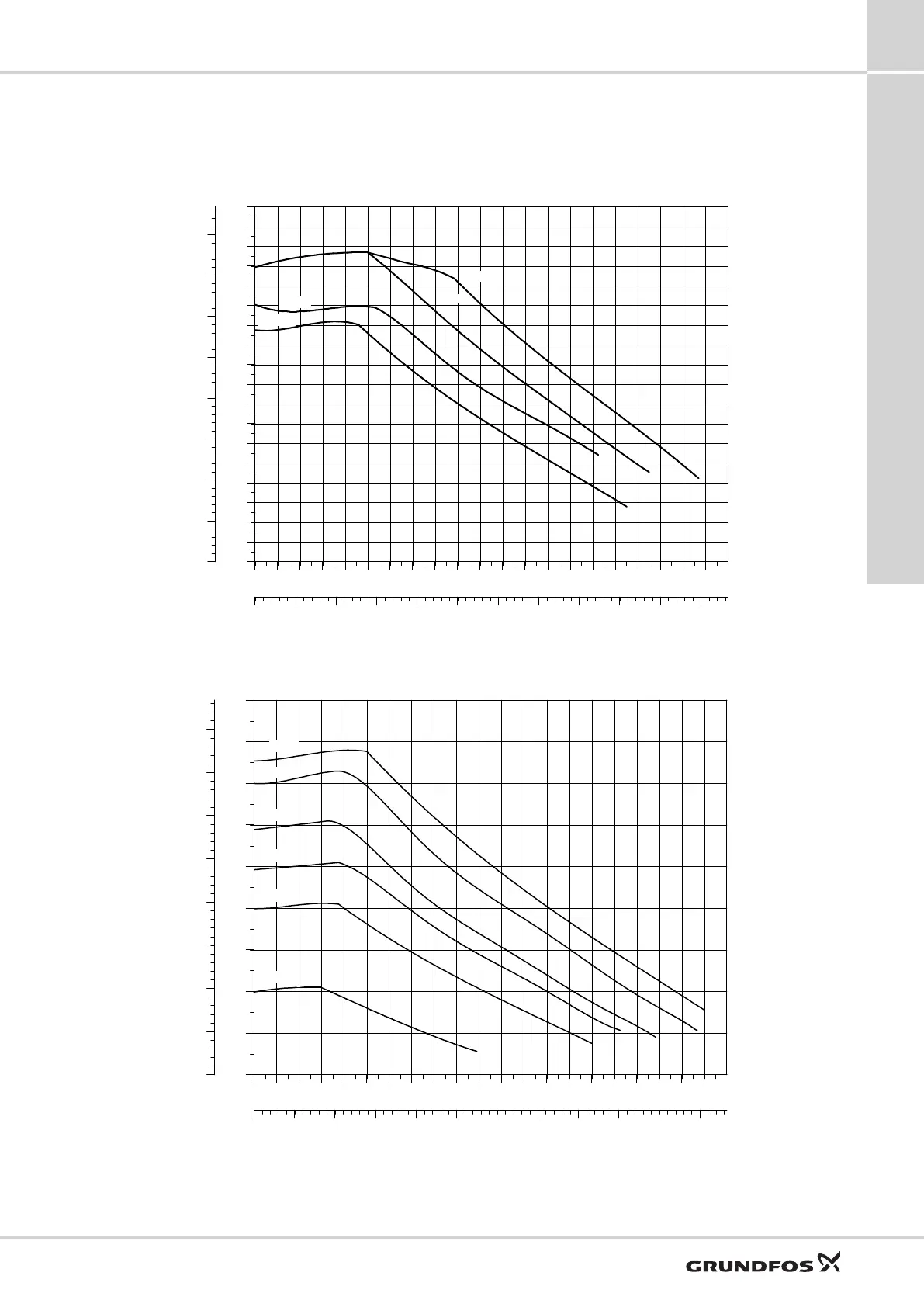

Performance range UPM3, UPM3L, UPM3S, UPMO
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6
Q [m³/h]
0
1
2
3
4
5
6
7
8
[m]
H
0
10
20
30
40
50
60
70
80
[kPa]
p
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Q [l/s]
4 m
2 m
5 m
6 m
7 m
7.5 m
TM068462
Performance range UPM3, cast iron pump housing
UPM3
6
15
Performance range
