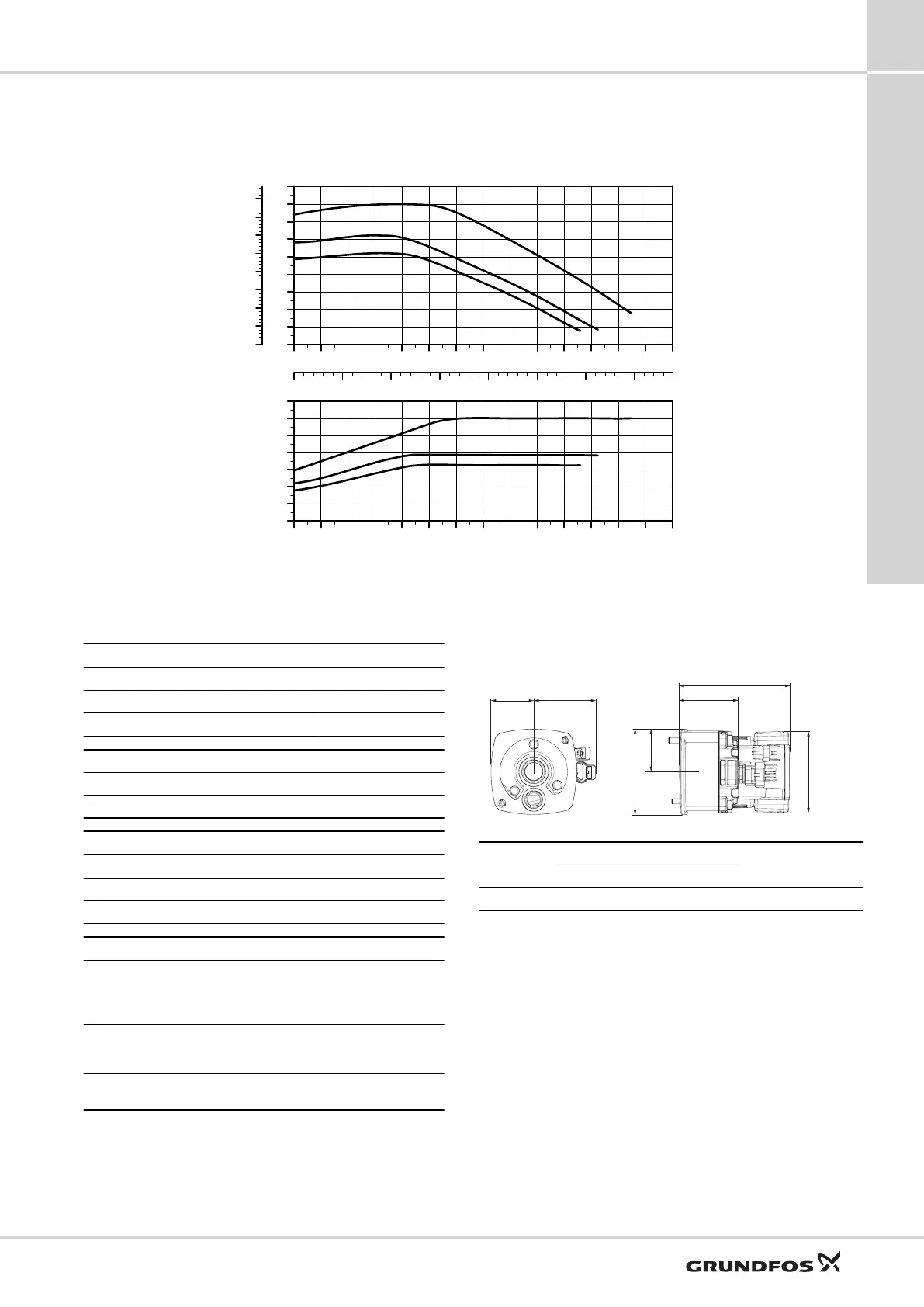

Grundfos UPMO Series - Upm3(K) Flex as 15-75 Ggbp3 (Gfnkb)

UPM3(K) FLEX AS 15-75 GGBP3
(GFNKB)
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
Q [m³/h]
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
Q [m³/h]
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7
Q [l/s]
0
10
20
30
40
50
60
[W]
P1
0
1
2
3
4
5
6
7
8
[m]
H
0
10
20
30
40
50
60
70
80
[kPa]
p
TM063871
EEI ≤ 0.20 Part 3
P
L,avg
≤ 28 W
Setting
Max. head
nom
Max. P
1 nom
Curve 1 5 m 33 W
Curve 2 6 m 39 W
Curve 3 7.5 m 60 W
Pump settings
PWM A PWM C PP CP CC
4 - - - -
Electrical data, 1 x 230 V, 50 Hz
Speed
P
1
[W] I
1/1
[A]
Min. 2 0.04
Max. 60 0.58
Technical data
System
pressure
Max. 1.0 MPa (10
bar)
Enclosure
class
IP44 (non-
condensing)
K: IPX4D
(condensing)
Minimum inlet
pressure
0.05 MPa (0.50
bar) at 95 °C liquid
temperature
Motor
protection
No external
protection
needed
Liquid
temperature
2-110 °C (TF110)
Approval
and marking
VDE, CE
Dimensions
B2 B1
H2
H1
L3
L2
L1
TM063958
Pump type
Dimensions [mm]
Connections
[inch]
Weight
[kg]
L1 L3 B1 B2 H1 H2 H3
15-75 GGBP3 117 58.5 90 72 58.5 115 39 2 x 24.5 2.7
PWM speed curves on request.
