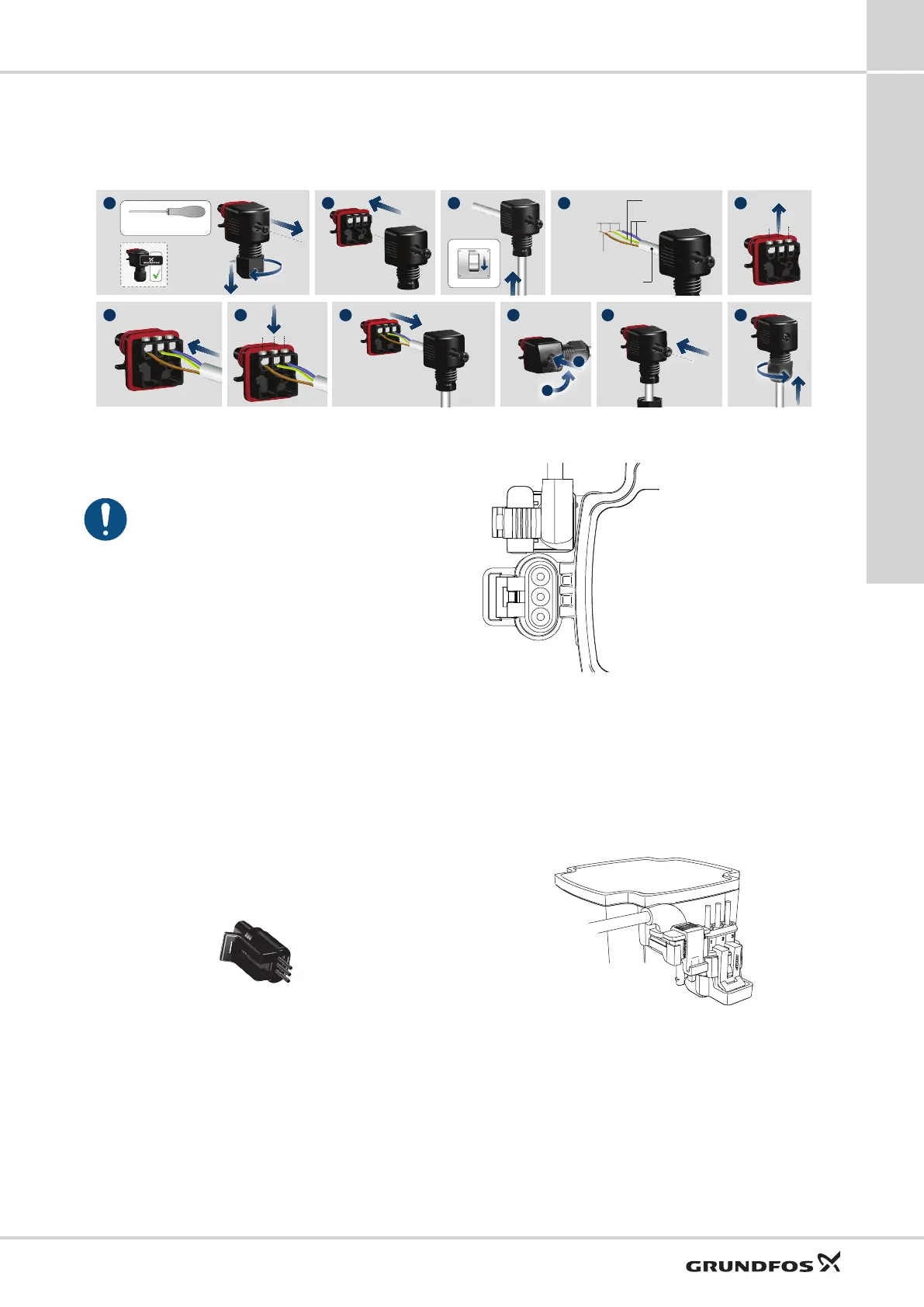

Superseal installation plug
The Grundfos Superseal installation plug can be used to
mount a supply cable locally. The Superseal installation
plug incorporates cable relief and a locking function for
securing the connection of the supply cable. The cover of
the Superseal installation plug can be mounted in two
different positions, with the cable relief away from the
pump or in parallel.
2
1
x 3
x 3
42 mm
32 mm
Ø5.5 - 10 mm
0.5 - 1.5 mm
2
1 2 3 4 5
1098b8a76
PZ1
8 mm
0 / OFF
1 / ON
TM068447_4119
Superseal installation plug
Control signal connection
Connect the signal wires to the correct poles. Otherwise
the pump might be damaged.
UPM3 pumps are externally speed-controlled. A signal
cable is required to enable the pump control. Otherwise
the pump with profile A runs continuously at maximum
speed, the pump with profile C stops.
UPM3 HYBRID pumps are either internally or externally
speed-controlled.
If you set the pump to external control mode (PWM A or C
profile) via the operating panel, you need a signal cable. If
you set the pump to internal control mode, a blind plug is
available to close the signal connection. The plug is not
required for safety reasons.
The signal cable connection has three leads: signal input,
signal output and signal ref. The cable must be connected
to the control box either by FCI or TE Mini Superseal
connector. The optional signal cable can be supplied with
the pump as an accessory.
The cable length can be customised to specific
requirements (max. 3 m).
TE Mini Superseal connector
TM064414
TE Mini Superseal connector
Safety
• Additional locking latch with pull-out force > 100 N
• Lock can only be opened with a screwdriver
Availability
Worldwide as TE standard.
Grundfos FCI (for UPER/UPM)
TM064417
Grundfos FCI for UPER/UPM
Backwards compatibility
For replacement of UPER/UPM pumps or in appliances
that use FCI plug, e.g. cable trees.
Safety
Two-part design: separate lock is needed to meet the pull-
force requirements > 100 N
TM064418
FCI signal cable fixed by a separate lock
Availability
Many cable suppliers use these cable connections.
UPM3
11
53
Electrical installation
