Grundig RCD 2000 Service Manual

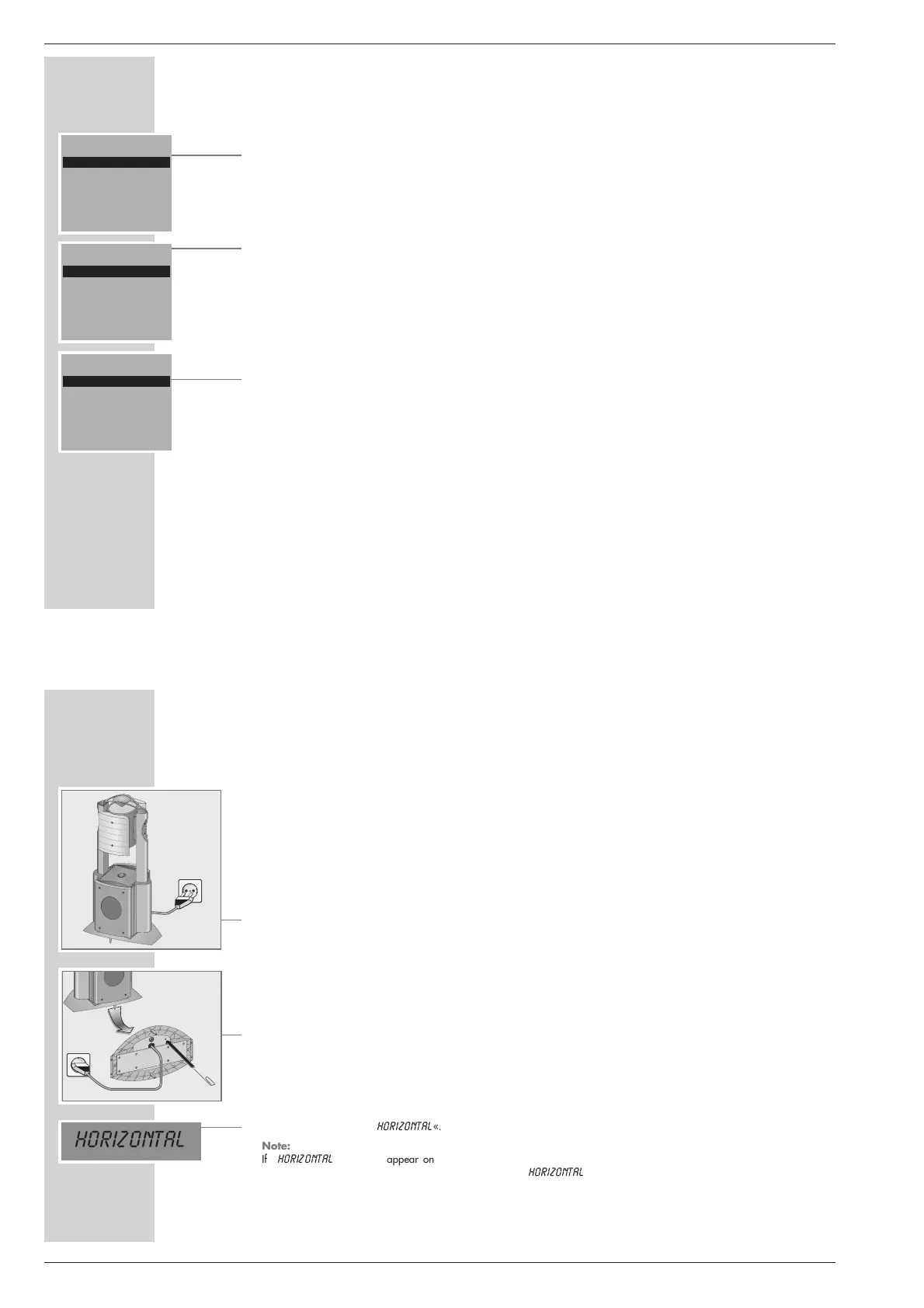

1 - 14 GRUNDIG Service
Allgemeiner Teil / General Section RCD 2000
OVERVIEW
__________________________________________________________________________________
The main remote control menus
The »SOURCE« menu:
»TUNER« = Tuner mode
»CD« = CD mode
»TAPE« = External tape deck operation
»AUX« = Operation with an external device such as a television.
The »SOUND« menu:
»SELECT ROOM« = Selects a particular pair of loudspeakers (if
several pairs are used)
»TONE CONTROL« = Adjusts the bass, treble and balance levels
»SOUND MODE« = Selects sound settings
»LOUDNES« = Activates and deactivates the Loudness func-
tion
»EDIT USER PRESET« = Programs custom sound settings
The »CONTROL« menu:
»SELECT ROOM« = Selects a particular pair of loudspeakers
(if several pairs are used)
»SPEAKERS« = Switches loudspeakers on and off
»SLEEP« = Selects the Timer function
»AUDIO CHANNEL« = Selects the communication channel
»INSTALL« = Installs loudspeakers and remote controls.
These menus are explained in detail in this manual with the aid of a number of
examples.
CONTROL
SELECT ROOM
SPEAKERS
SLEEP
po
SOURCE
TUNER
CD
TAPE
po
SOUND
SELECT ROOM
TONE CONTROL
SOUND MODE
BACK po
CONNECTION AND PREPARATION
_______________________________________
Connecting and installing the loudspeakers
The HiFi transmits audio signals by radio to the loudspeakers. Speaker cables
are not necessary.
You can operate up to six pairs of loudspeakers with the HiFi system.
The maximum transmission range from the HiFi to the loudspeakers is 15 m.
Walls and ceilings reduce the range, especially if they are made of reinforced
concrete.
Connecting the loudspeakers to the mains supply
1 Plug the mains cable into the socket.
Installing the first pair of loudspeakers
1 Press »POWER« to switch on the left loudspeaker of the first pair, then
switch on the right loudspeaker of the first pair.
– The indicators in the »POWER« buttons flash green and orange, which
means that the loudspeakers are ready for installation.
Note:
If the indicators do not flash, press the »RESET« button on the bottom of the
loudspeaker case with an implement such as a paper clip.
2 Switch both loudspeakers off again.
3 Switch on the HiFi by pressing the »OI« switch.
– The HiFi display reads: » HORIZONTAL «.
Note:
If » HORIZONTAL « does not appear on the HiFi display, press »SOUND
MODE« on the HiFi and hold it down until the word » HORIZONTAL «
appears.
HORIZONTAL
1
POWER
